Product Description

3CCT Easy Install Outdoor and Indoor Round / Oval LED Bulkhead Wall/Ceiling Light with Motion Sensor or Emergency kit IP65 IK08 12W 18W 24W Changeable with CE Ukca

Features

Energy efficient LED

IP65 weatherproof rating with insect resistant seal

IK08 vandal proof rating

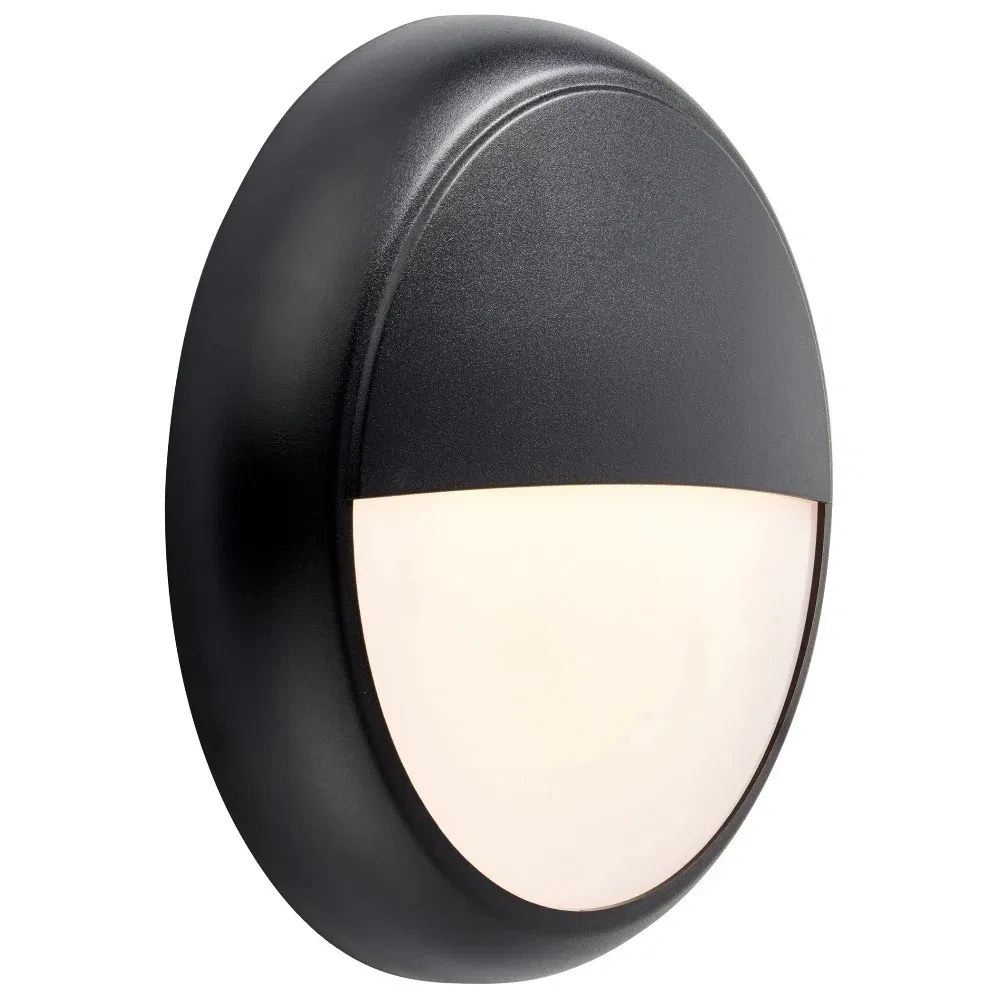

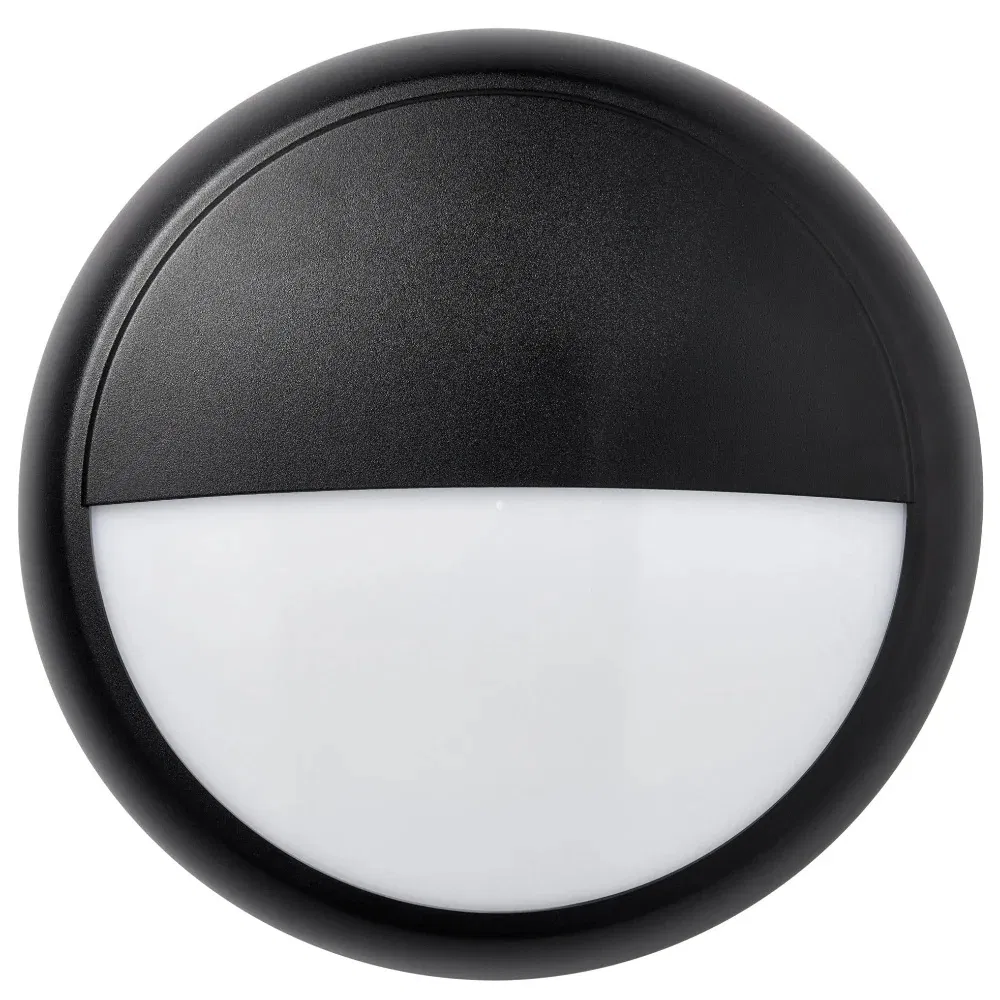

Supplied with eyelid trim option

Tri-CCT selectable

Tri-watts selectable

Technical Specifications

Mechanical

AdjustabilityFixed
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourBlack
IK RatingIK08
Installation TypeWall or Ceiling
IP RatingIP65

Electrical

Electrical RatingClass II
Input Current0.07 A
Input Frequency50 Hz
Input Voltage230Vac
Switch TypeInline
System Max Wattage12W / 18W / 24W
Working Temp Range-20 to 45 °C

Lamp & Lifetime

CCT ConfigurationTRI-CCT
CRI>80
System Efficiency120 lm/W
LED Lifetime>54000 hrs

Colour Temperature

Warm White (3000K)2700 lm
Cool White (4000K)2850 lm
DayLight (5700K)3000 lm
Warm White (3000K Eyelid)1000 lm
Cool White (4000K Eyelid)1100 lm
DayLight (5700K Eyelid)1200 lm

Product Gallery

1) Full and half full lighting

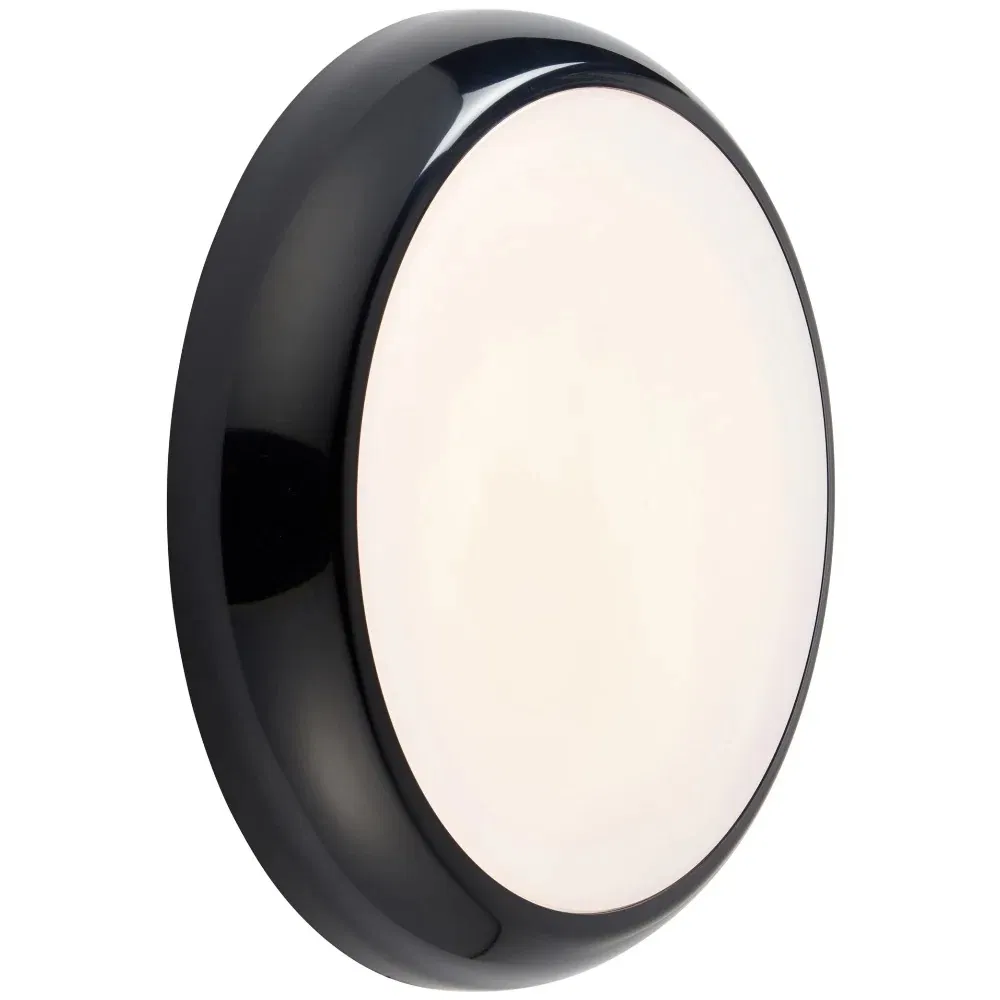

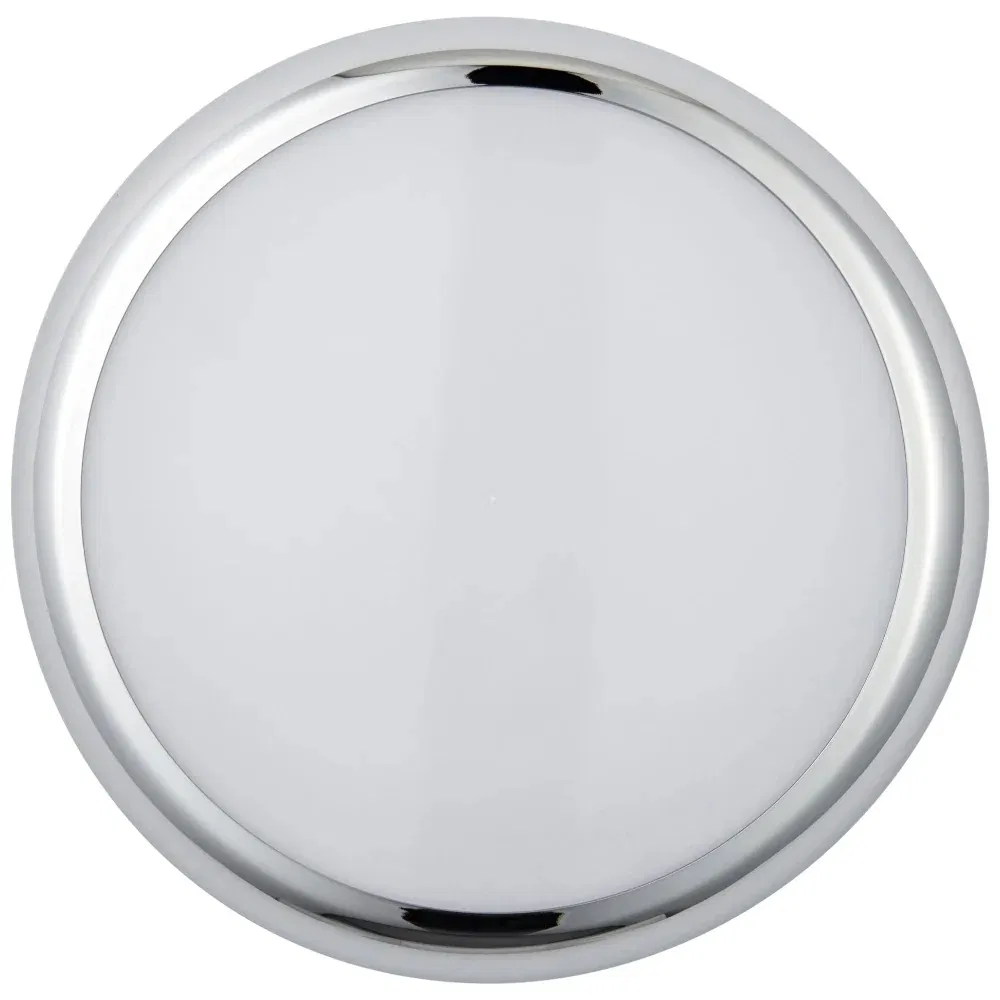

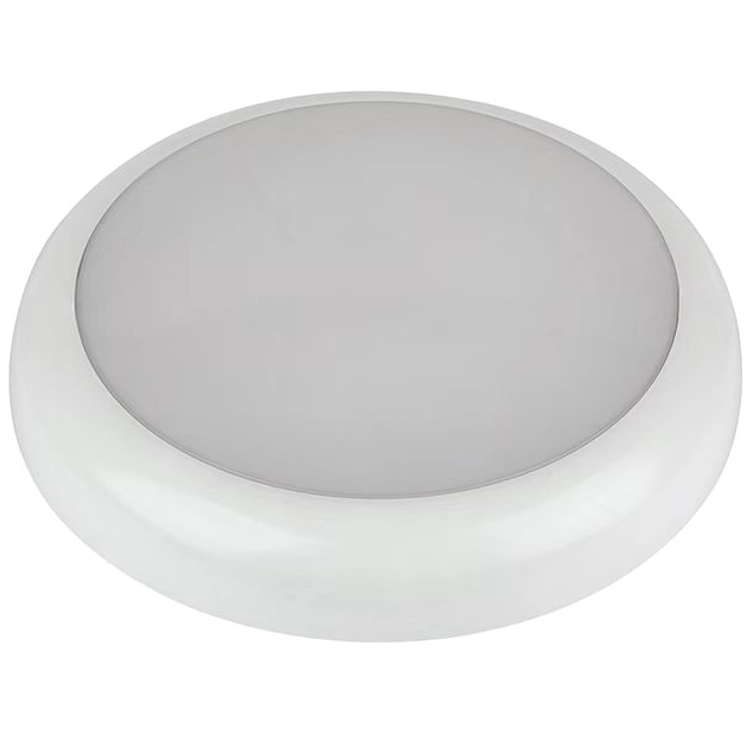

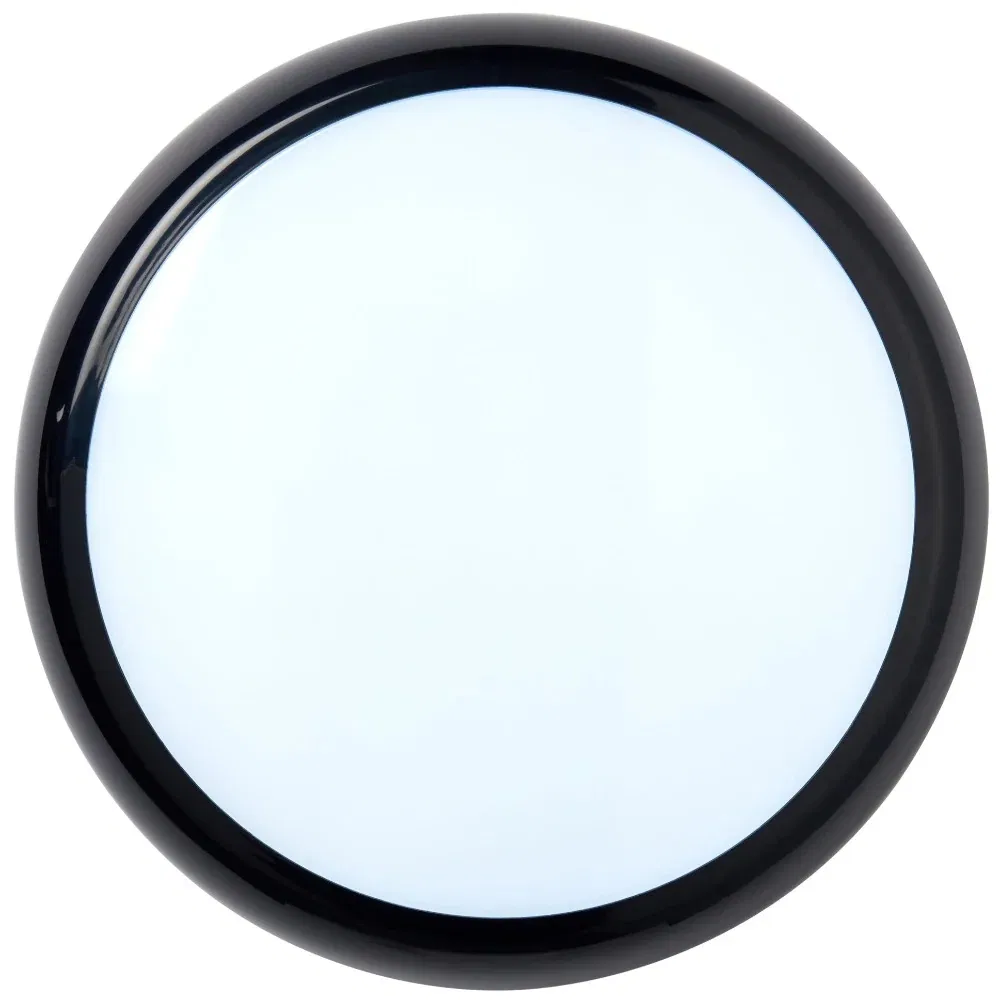

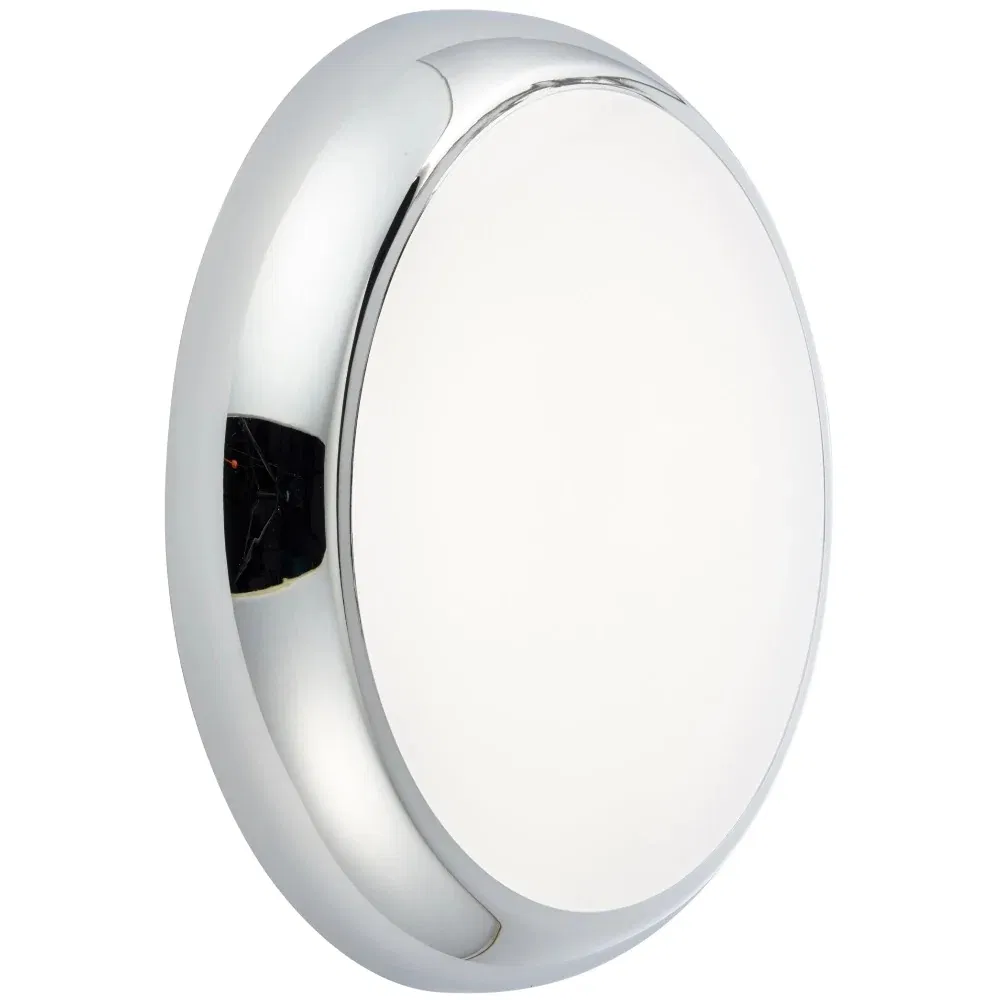

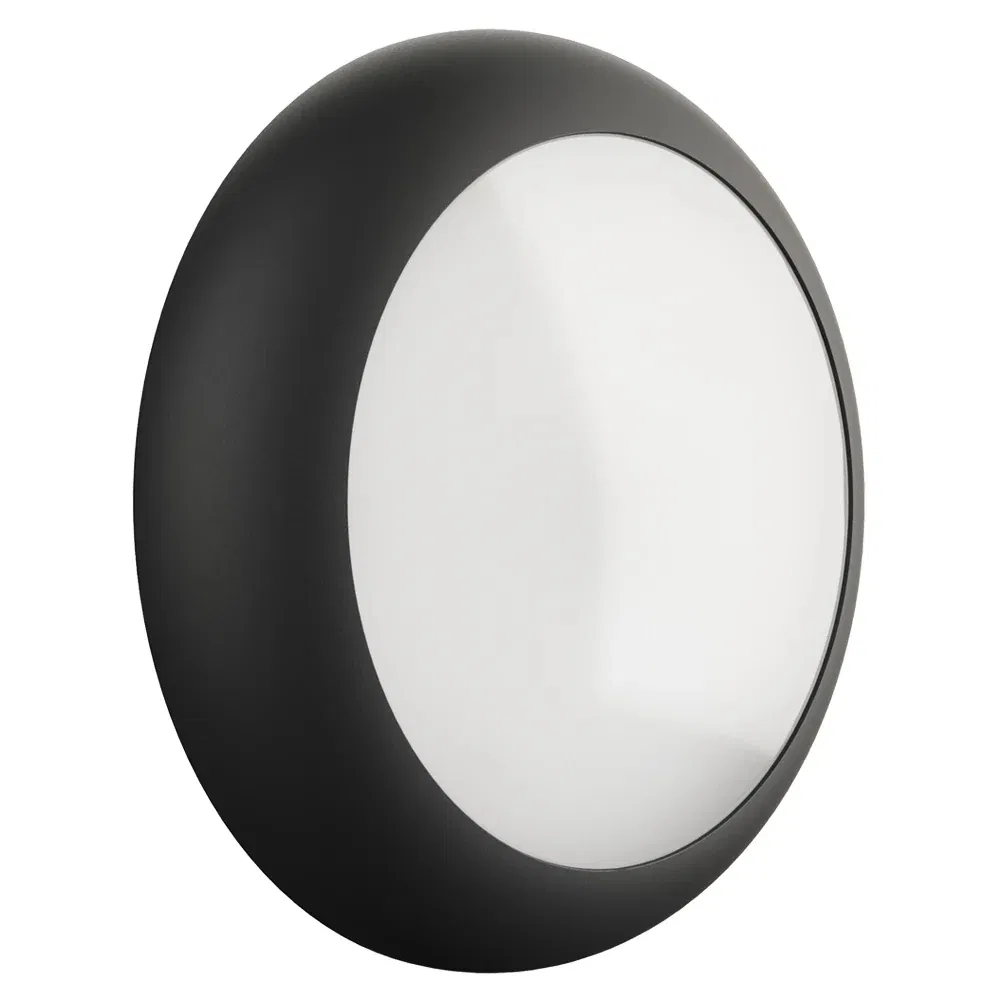

2) Front view

3) Bright face performance

4) White and black colours

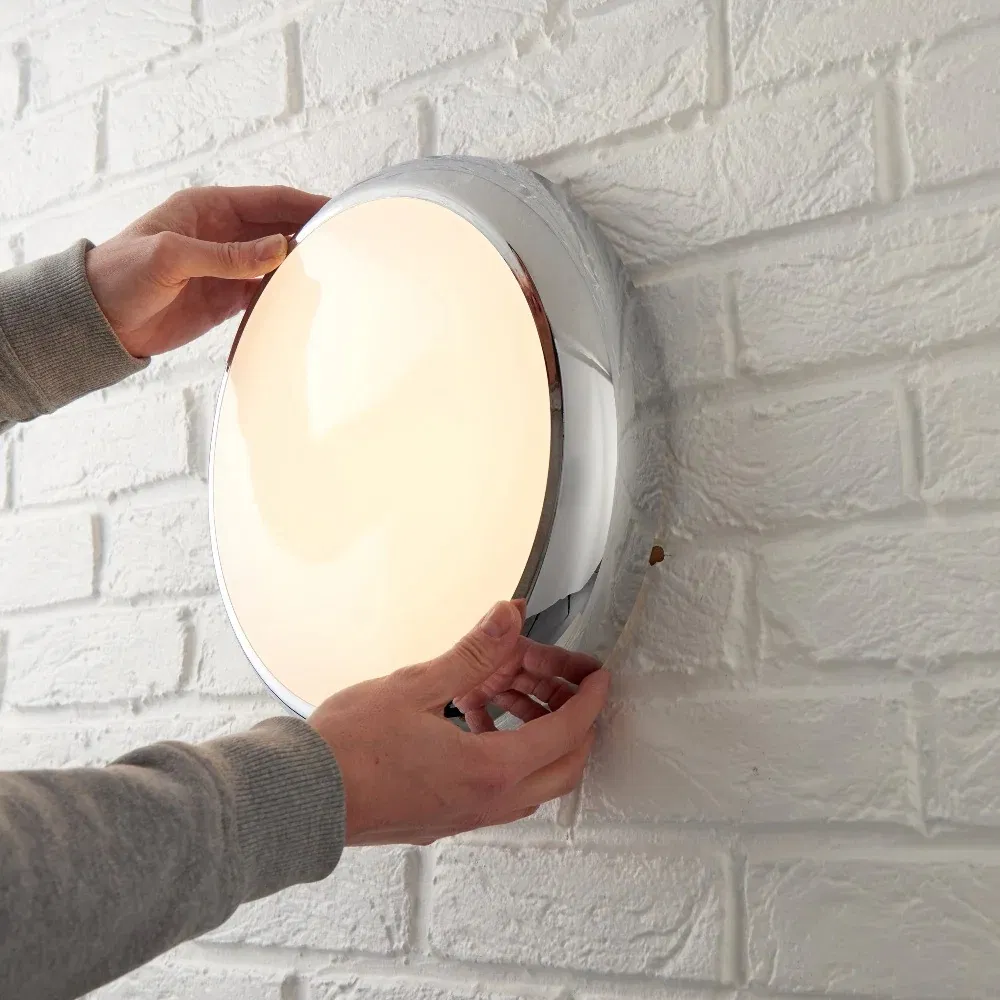

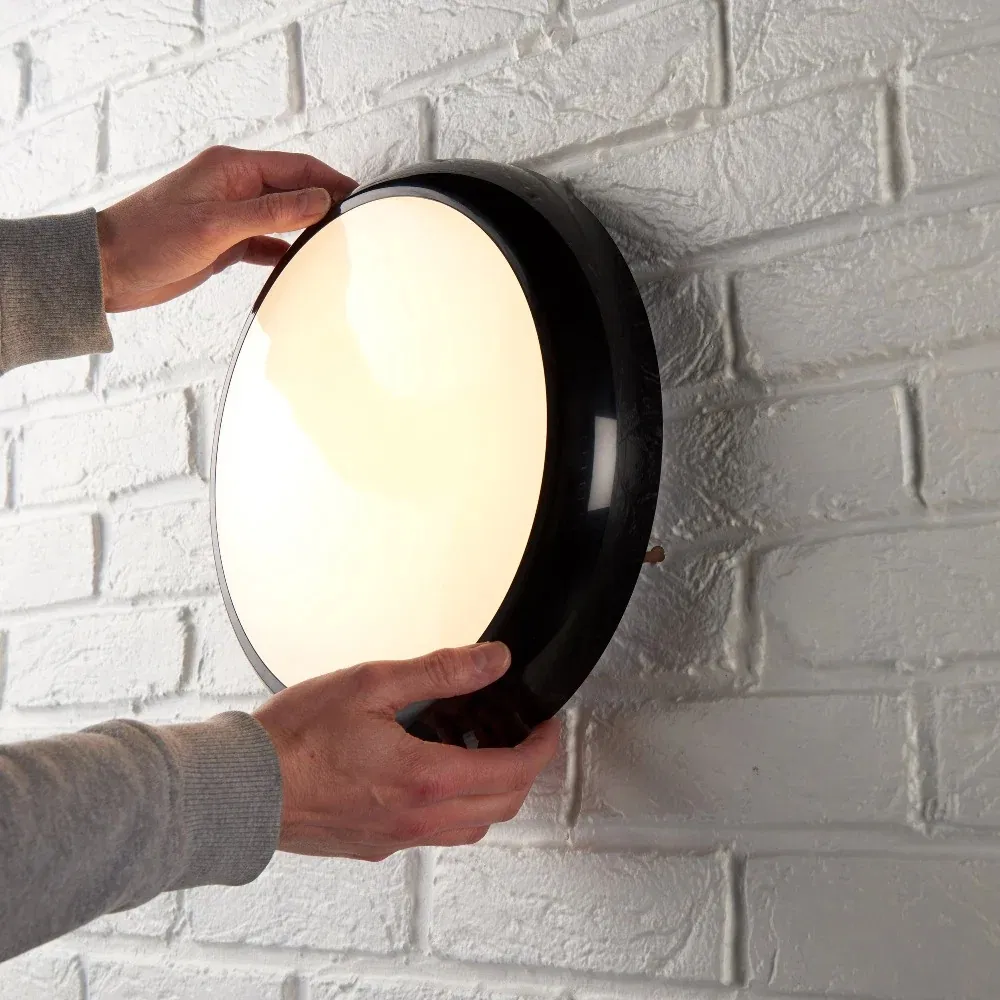

5) Fixing on the wall

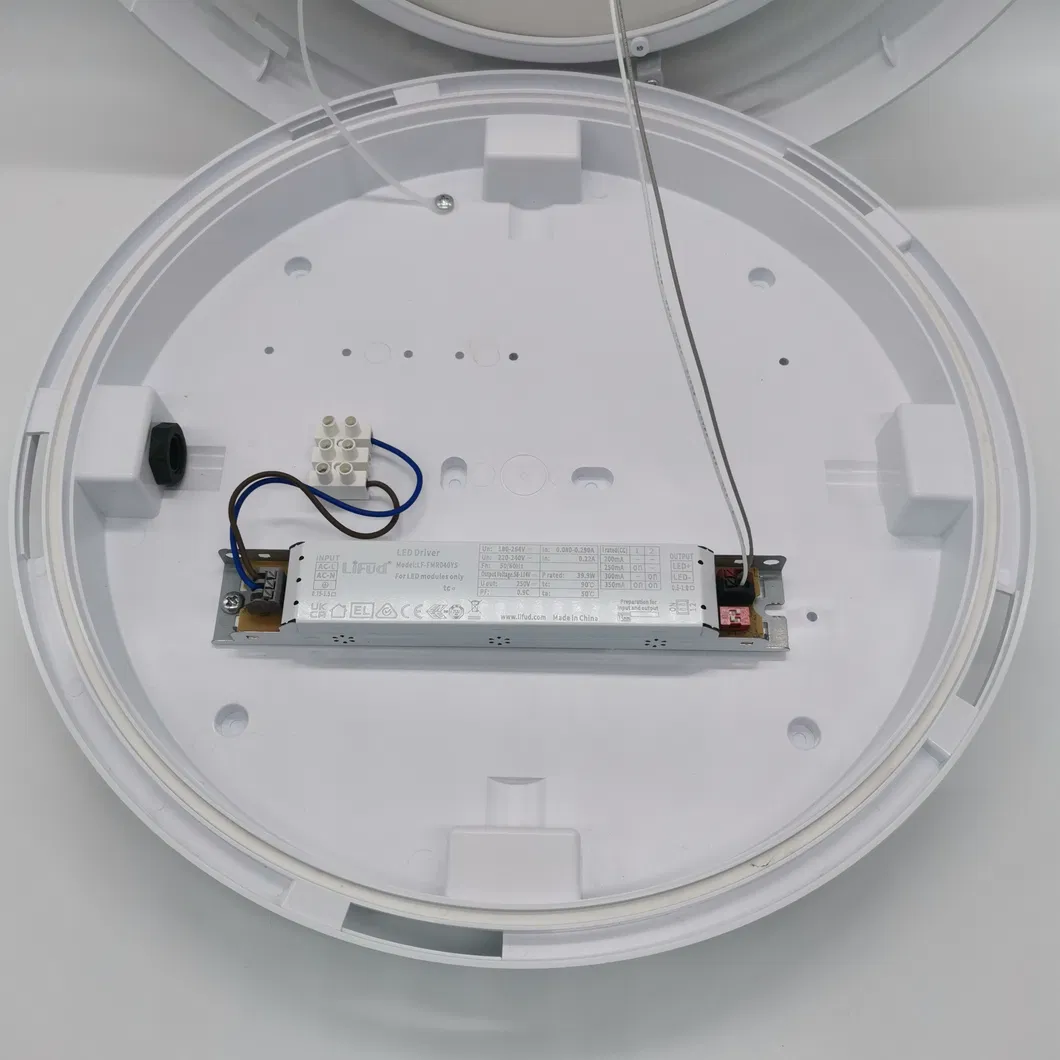

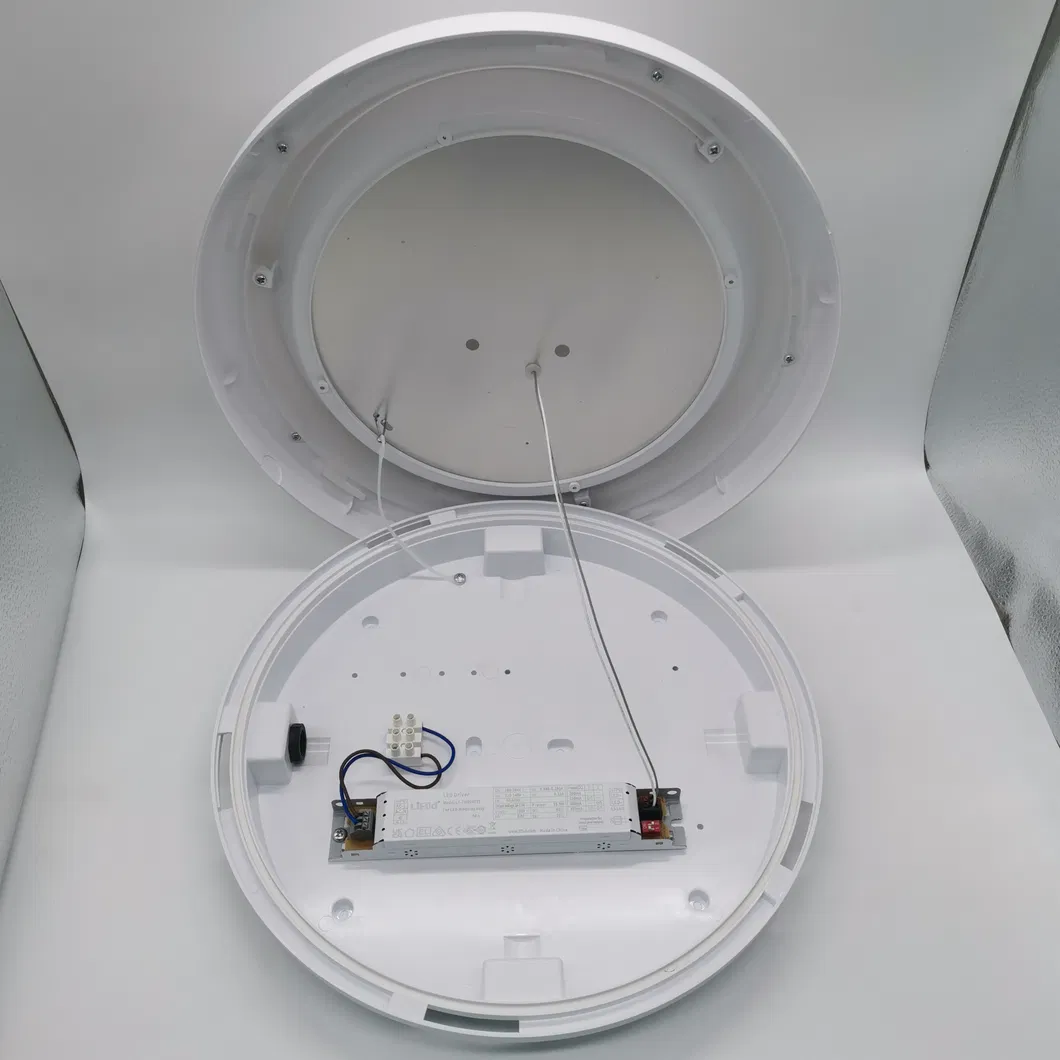

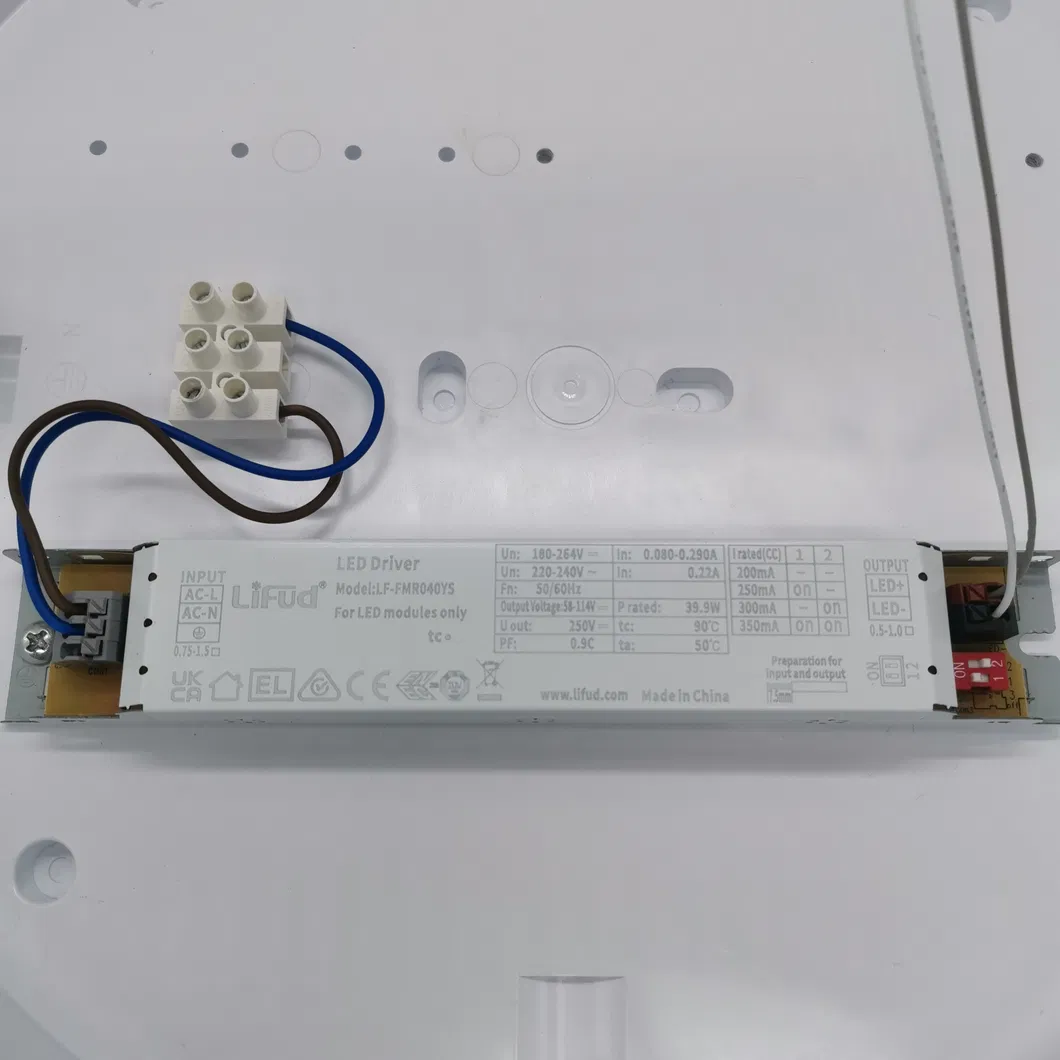

6) Inside of light: driver and LED board

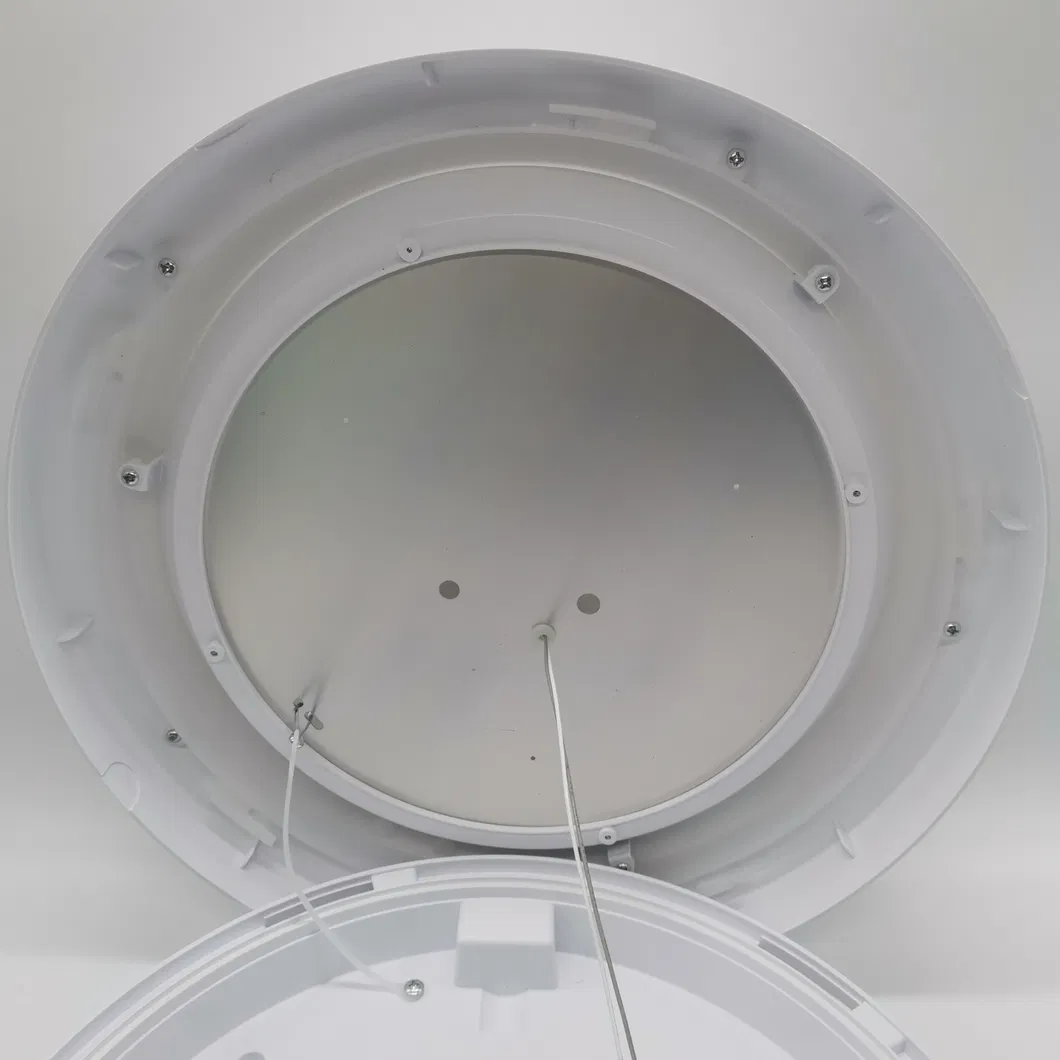

7) Inside of light

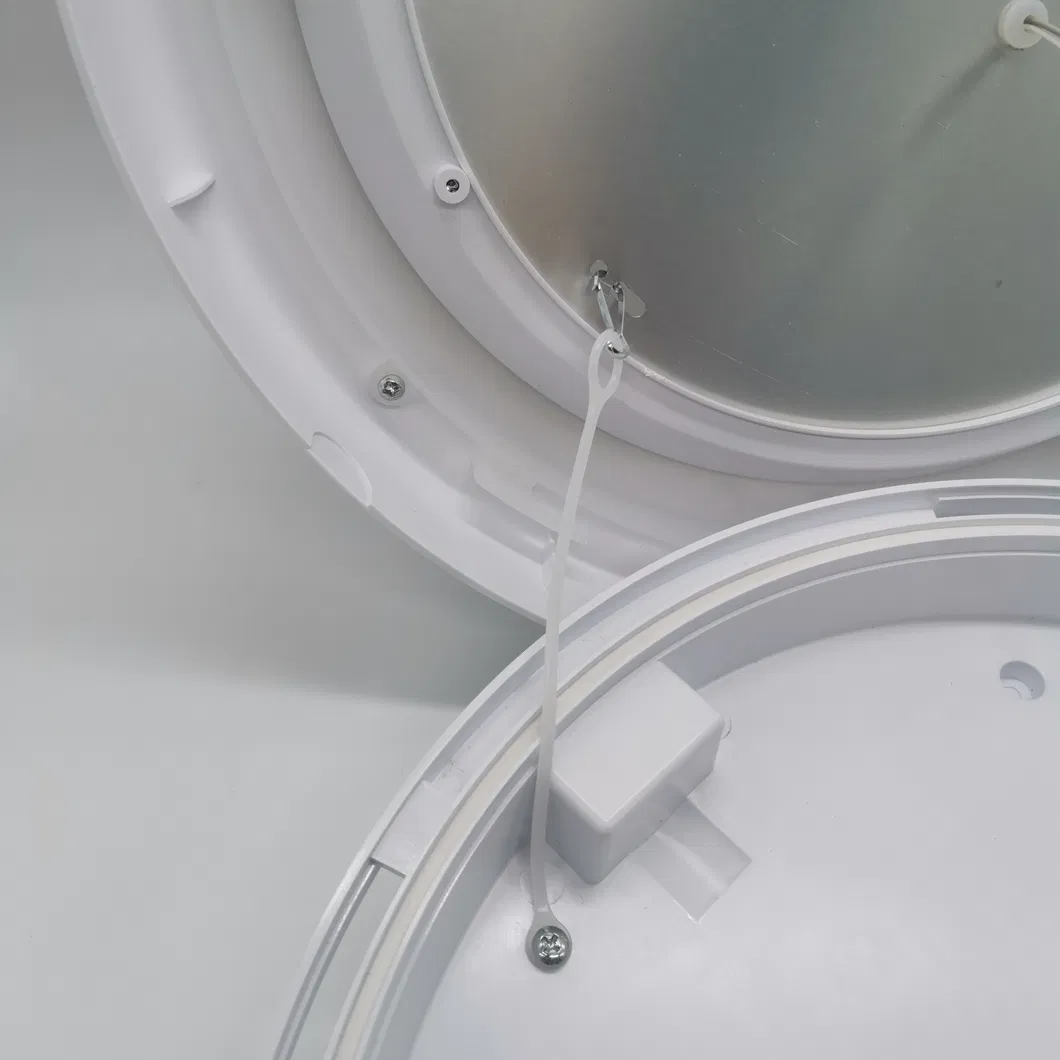

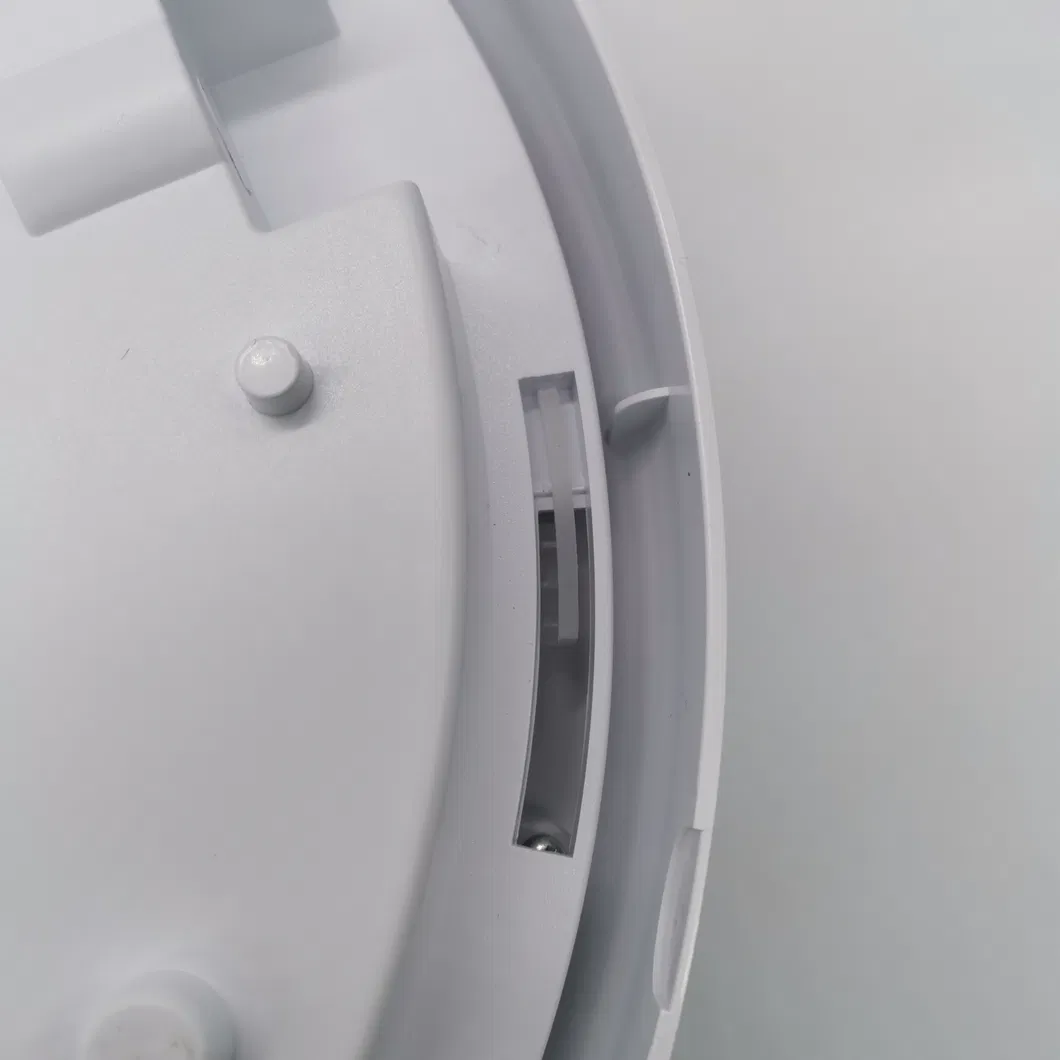

8) Inside of light: hanging and clip

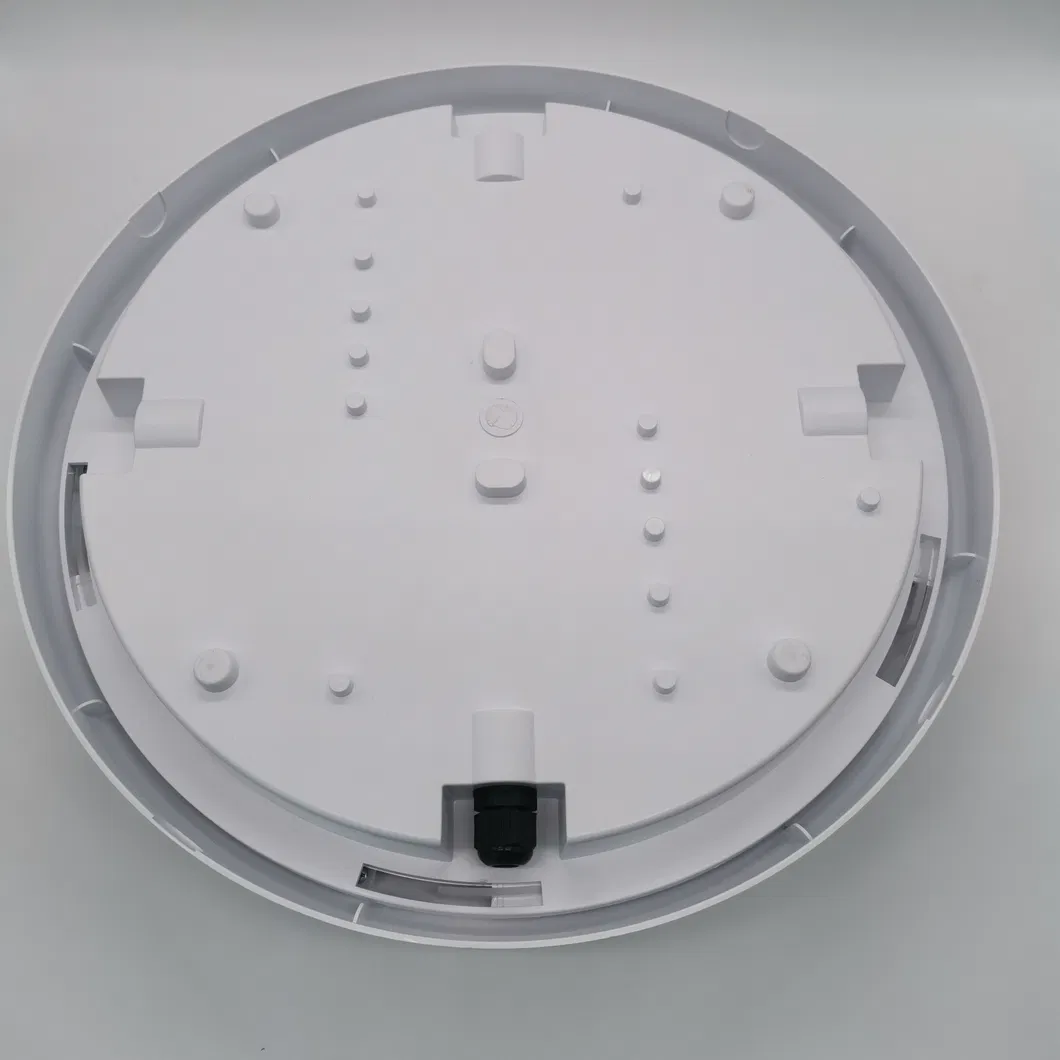

9) Light back and inside

10) True light photos

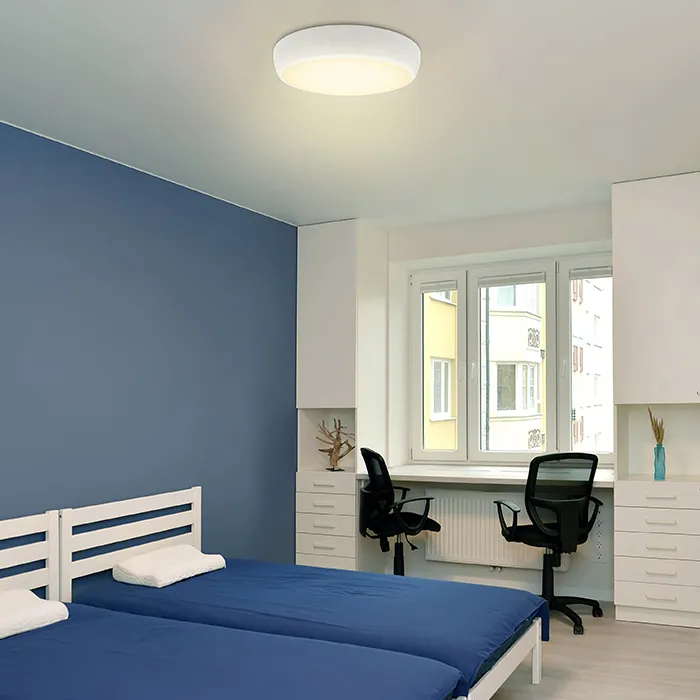

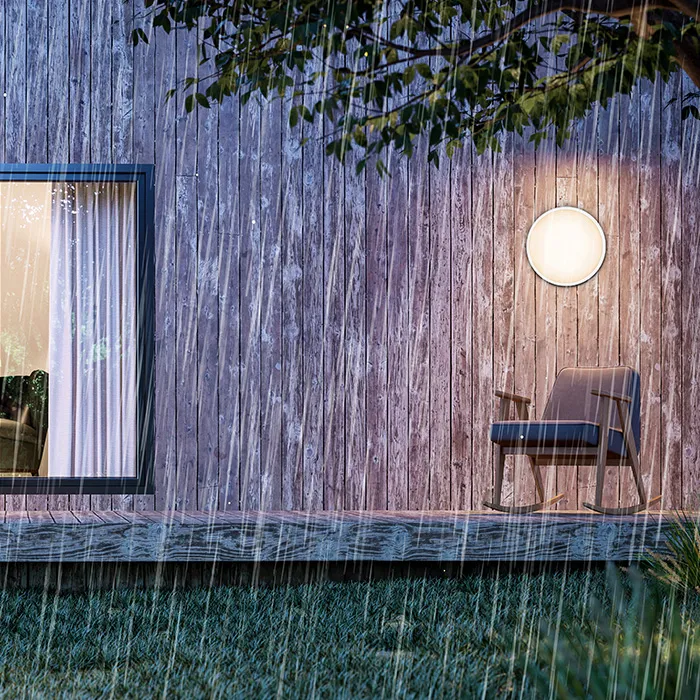

11) Lighting using

Details of Lighting

1

Lighting body: PC or ABS material body with high impact resistance, non-deformable structure for installations in environments with vibration.
2

Lighting cover: opal PC diffuser.
3

LED board: White aluminum base, 0.45mm thickness.
4

Applications: Indoor & outdoor areas with high IP requirement, food industry chemical plants, heavy mining industries environments with the presence of cutting oil & other aggressive substances, oil industries, offshore industry, petrochemical industries, swimming pool areas, dusty humid and corrosive environments, washing houses, breweries, under canopy areas, pharmaceutical factories, loading bays, garages, cellars and industrial complexes, warehouses, under-bridges, tunnels, ships, bath centers, parking lots, railway platforms, lobbies, refrigeratories, and city environment luminance fields etc.
5

Operating voltage: Input 220V ~ 240V, 50Hz ~ 60Hz. Output 12V-24V 50Hz ~ 60Hz.
6

Type of lamps: LED SMD2835.
7

Wattage: 12W, 18W, 24W.
8

Operating temperature: -20°C ~ 45°C.
9

IP rating: IP66 (or IP65 as specified), outstanding stability of water tight gasket, waterproof, explosion proof, dustproof.
10

Electrical equipment: High quality LED driver and SMD2835 Chips.
11

Additional options: Light could be configured with 3CCT sensor and emergency kitting inside.
12

Certificate: CE, CB, RoHS, SAA.

Power Specifications

Item No.	Power	Lumens	PF	IP Grade	Sensor	IK	3CCT	CRI	Warranty	Light size
SLCLC-12	12W	1500LM	>0.95	IP65	Microwave sensor	IK08	3000K/4000K/5700K	>80	5 years	Φ260*108cm
SLCLC-18	18W	2250LM	>0.95	IP65	Microwave sensor	IK08	3000K/4000K/5700K	>80	5 years	Φ320*108cm
SLCLC-24	24W	3000LM	>0.95	IP65	Microwave sensor	IK08	3000K/4000K/5700K	>80	5 years	Φ360*108cm

Frequently Asked Questions

What is Tri-CCT and how do I select the color temperature?

Tri-CCT stands for three color temperatures in one fitting. You can easily switch between Warm White (3000K), Cool White (4000K), and DayLight (5700K) using an inline switch inside the light fixture during installation.

Can this light be used in harsh outdoor or wet environments?

Yes, this light features an IP65/IP66 weatherproof rating along with an insect-resistant seal, making it dustproof, waterproof, and ideal for damp, dusty, or demanding outdoor conditions.

What is the advantage of the IK08 rating?

The IK08 rating indicates that the light housing is vandal-proof and has high impact resistance. It is made of high-grade polycarbonate, making it highly durable and protective against physical impacts or vibrations.

Does this fixture support emergency lighting or motion sensing?

Yes, the fixture can be equipped internally with an optional microwave motion sensor or emergency kit to suit safety and energy-efficiency demands.

What is the lifespan and warranty of the light?

This bulkhead light is designed with highly efficient LED chips and drivers that deliver an operational lifetime of over 54,000 hours, backed by a 5-year warranty.
