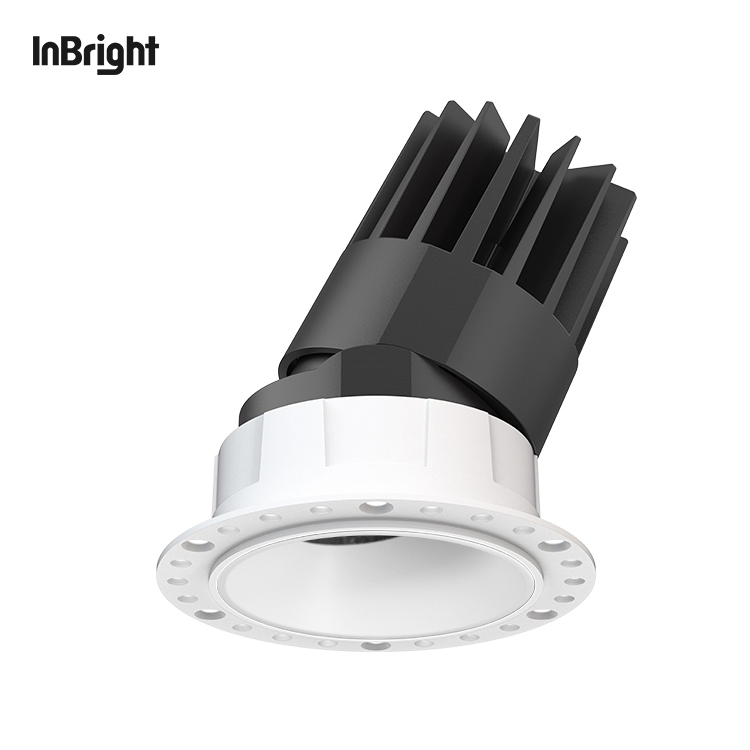

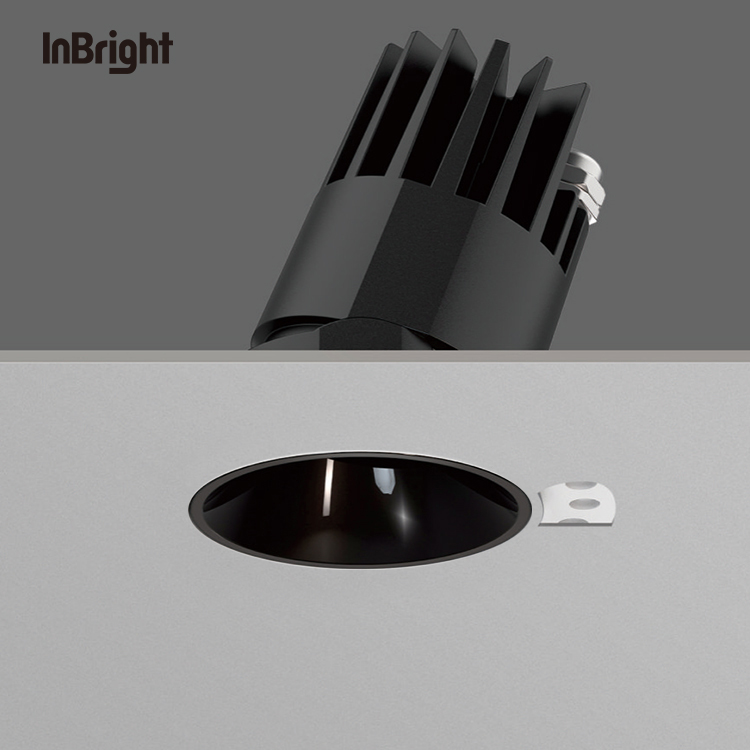

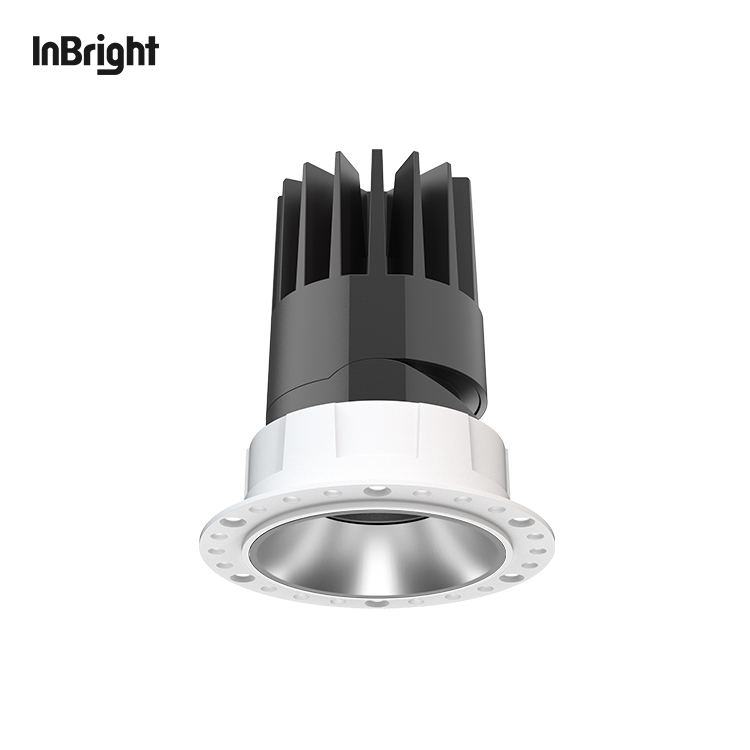

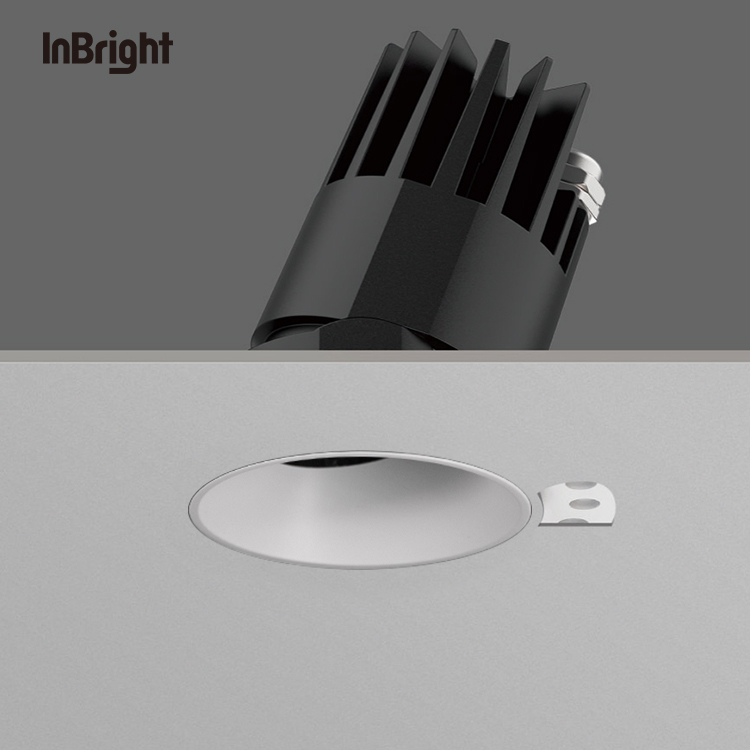

Trimless Adjustable Recessed Led COB Down Light 8W 18W 25W Aluminum IP65 Waterproof Downlight

Product Description

Hotel Spot Light 8W 18W 25W Round Housing Dimmable Recessed LED Trimless Spotlight
Hotel Recessed LED Trimless Spotlight

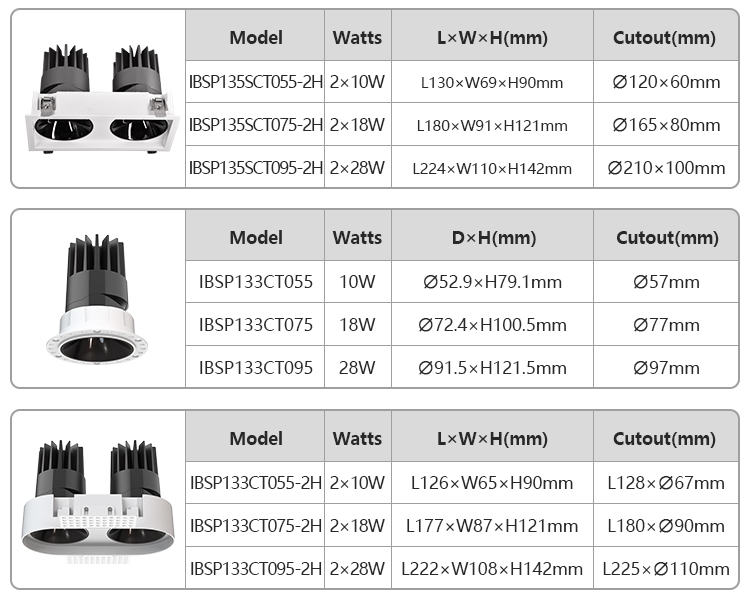

Product Parameters
Product name LED Recessed Spot Light
Model No. IBSP133 / IBSP227CT035
Watts 8W / 18W / 25W
Lamp Outer Size Ø52.9×H79.1mm / Ø72.4×H100.5mm / Ø91.5×H121.5mm
Cutout Hole Size Ø57mm / Ø77mm / Ø97mm
LED Color 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6000K, 6500K

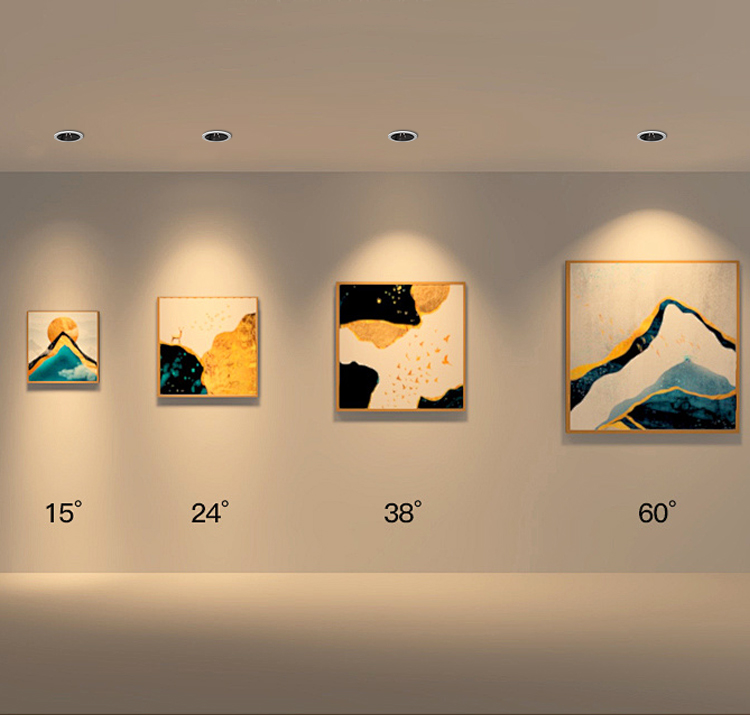

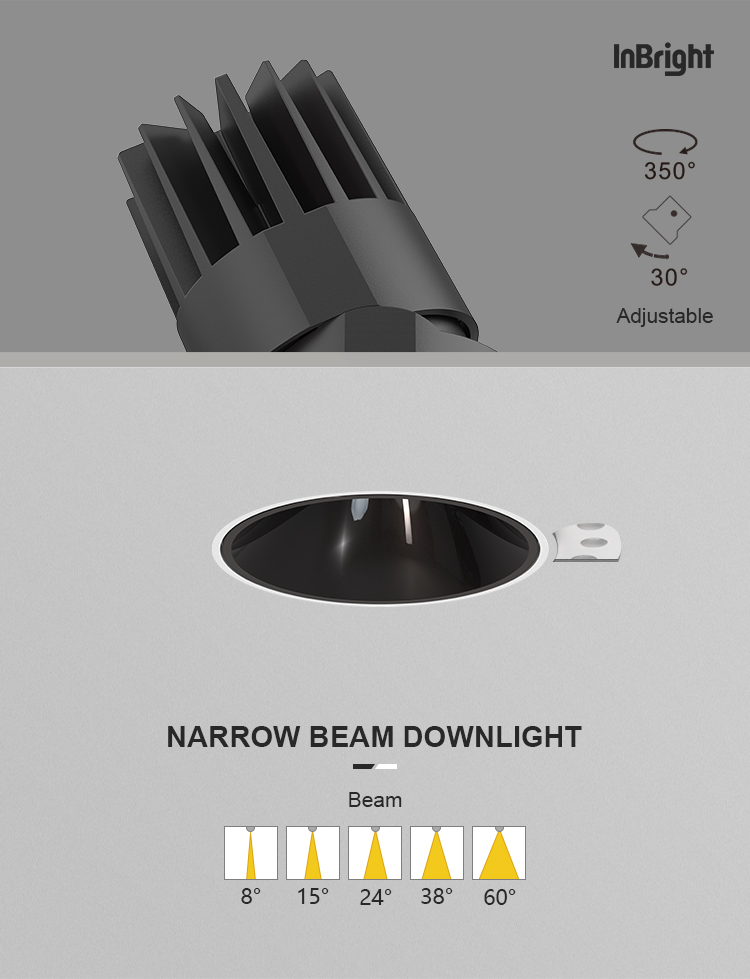

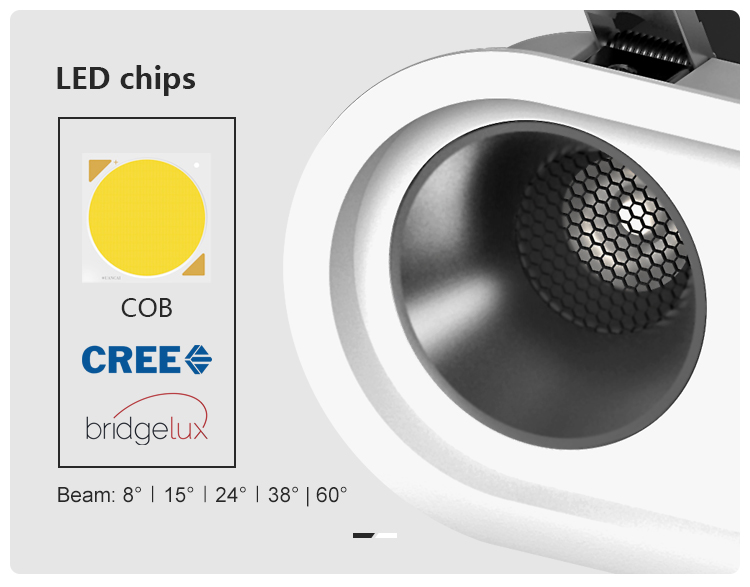

Beam Angle 15° ~ 24° ~ 38°
Body Material Die-casting aluminum
CRI Ra ≥ 80 ~ 90
Product Details Gallery
Detail Image 1
Detail Image 2
Detail Image 3

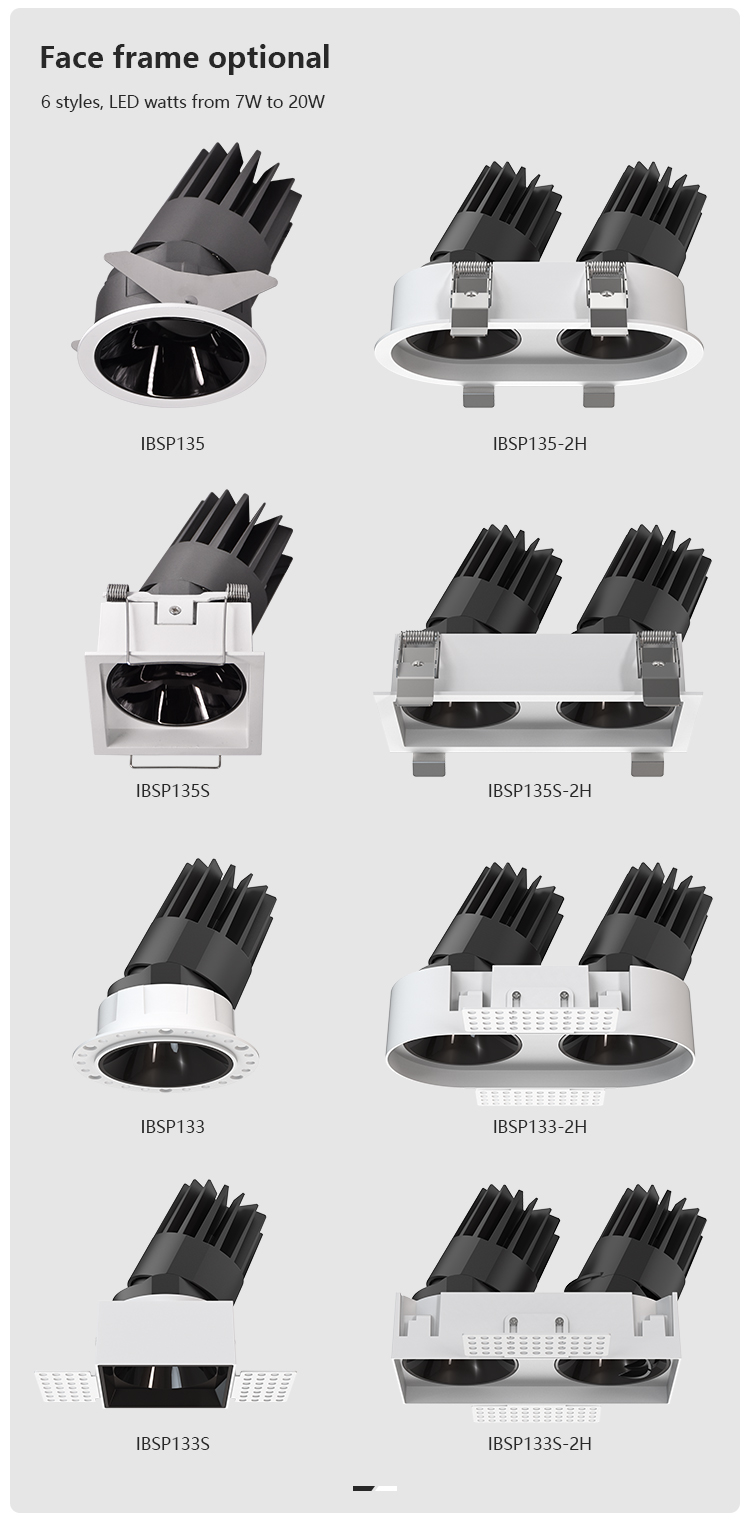

Detail Image 4
Detail Image 5

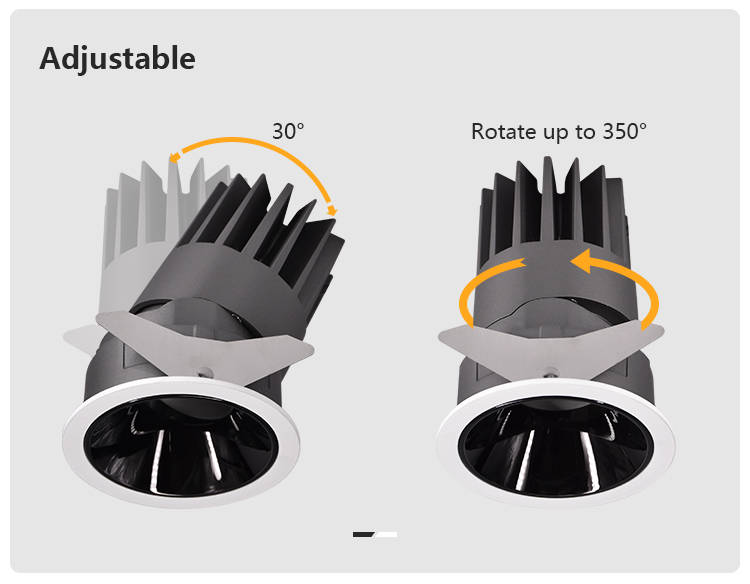

Detail Image 6
Detail Image 7
Detail Image 8
Detail Image 9
Detail Image 10

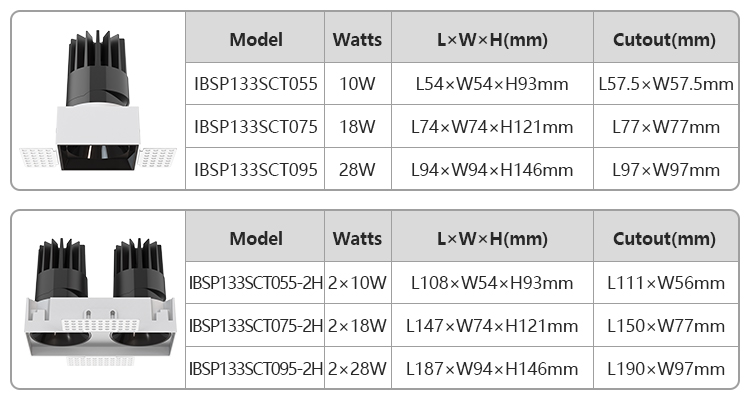

Product Diagram 1
Product Diagram 2
Double Image left
Double Image right
Installation Guide 1
Installation Guide 2

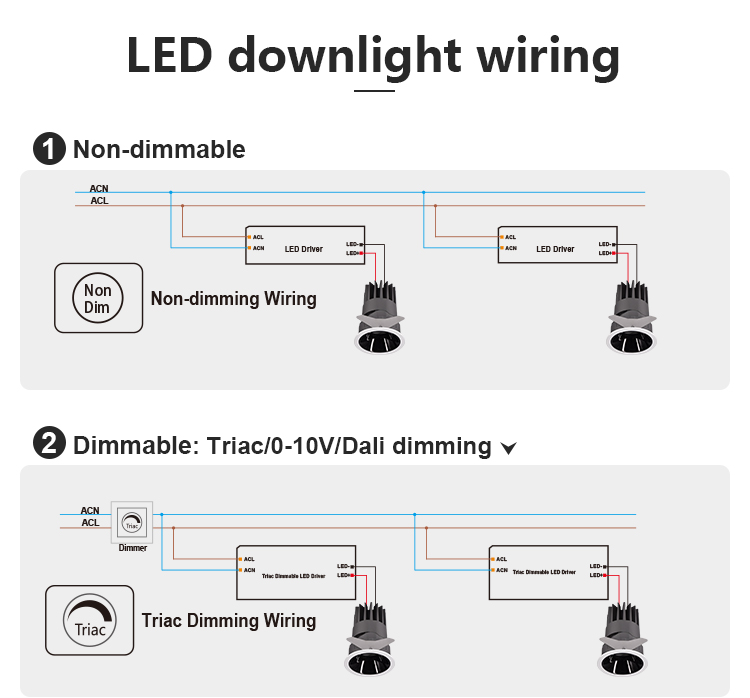

Product Structure 1

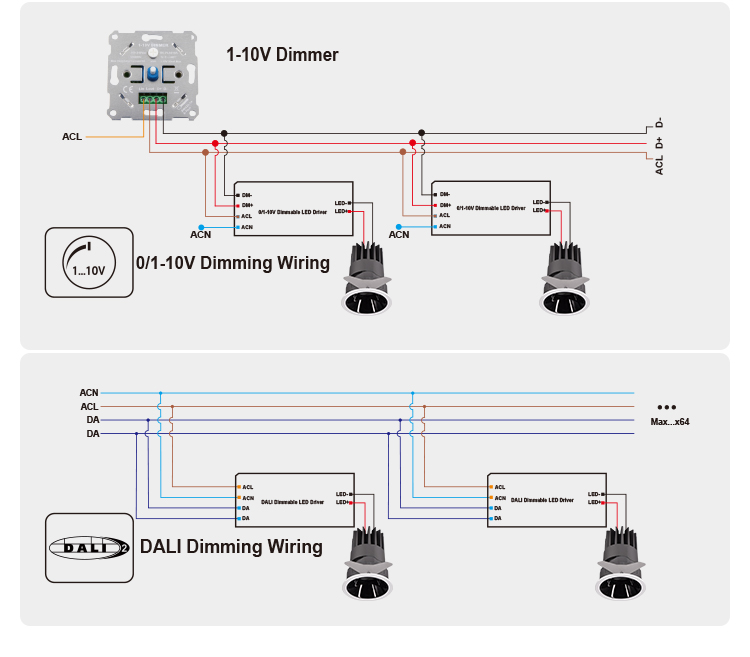

Product Structure 2

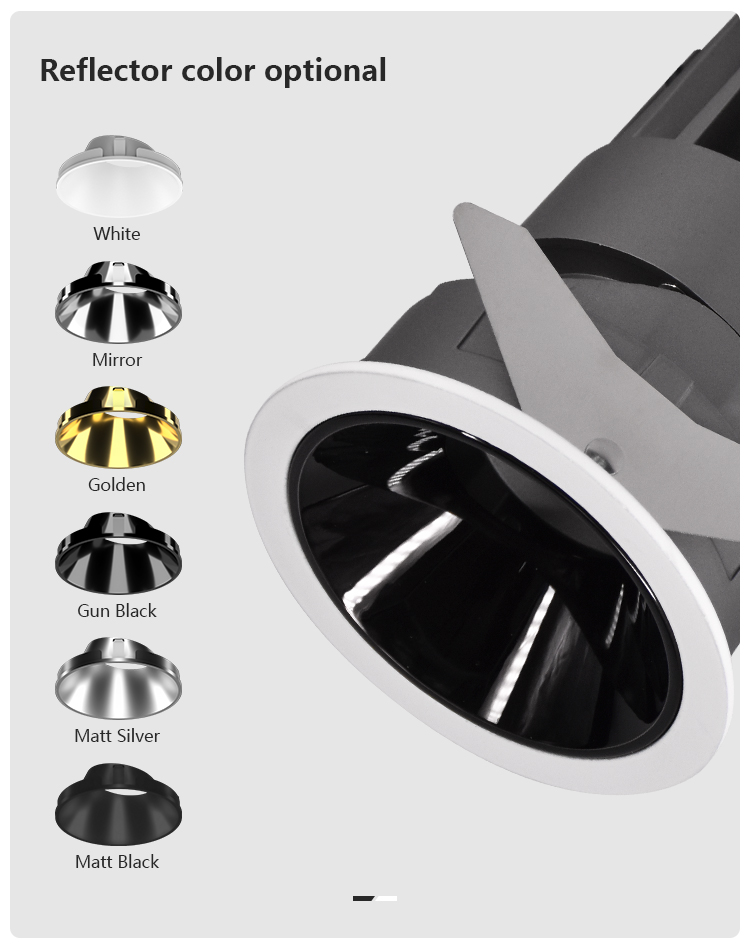

Reflector Options

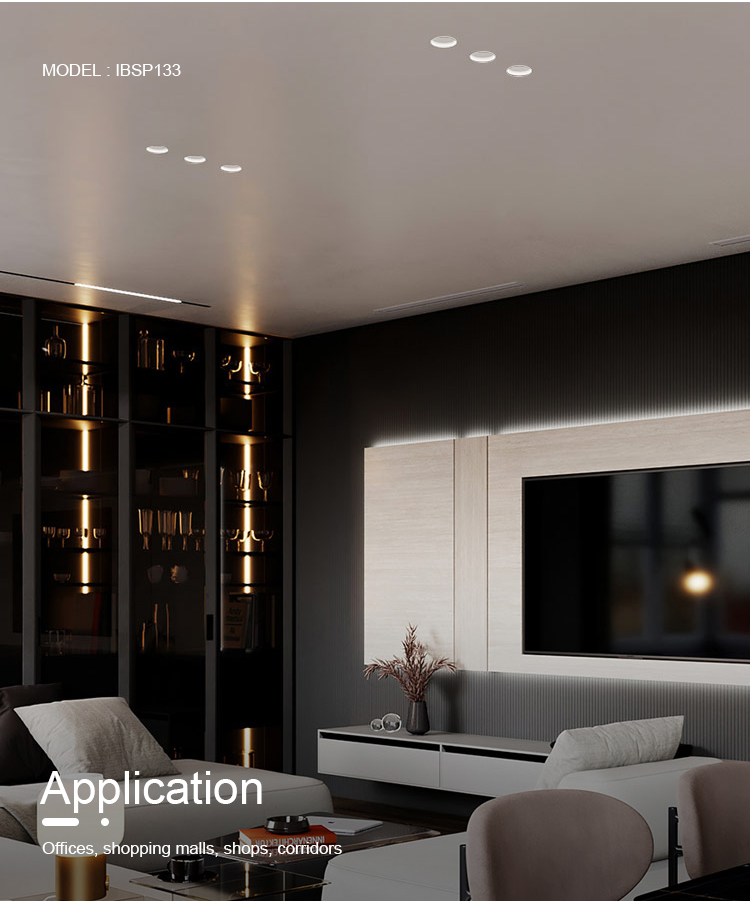

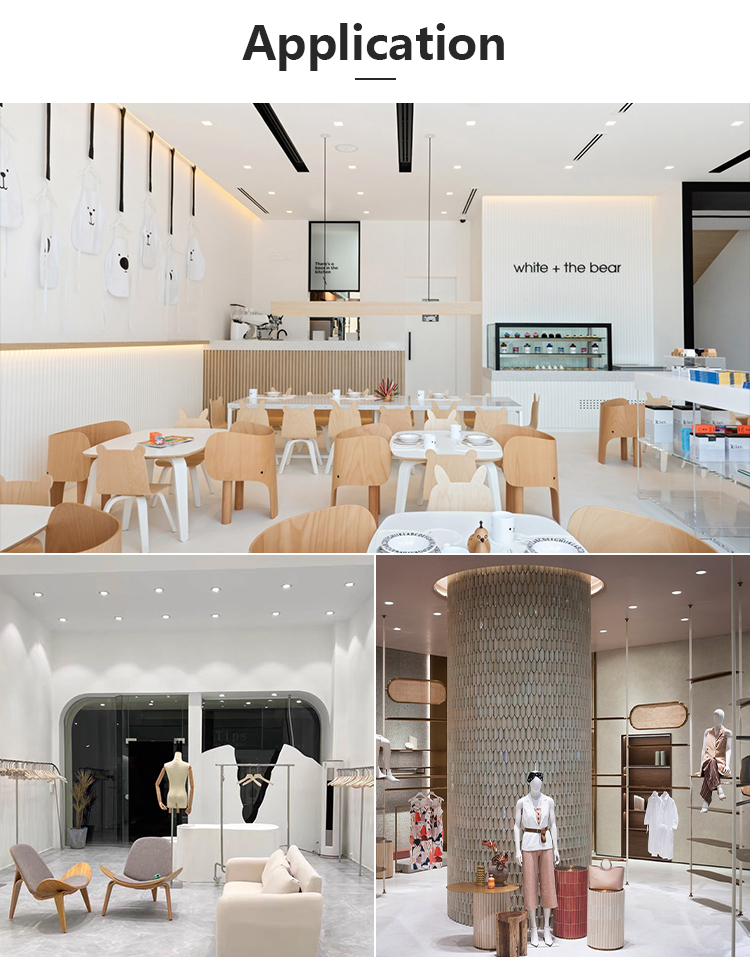

Application Scenarios
Application Scenario 1
Application Scenario 2

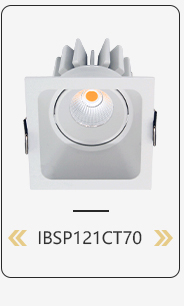

Application Scenario 3

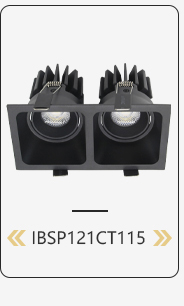

Application Scenario 4

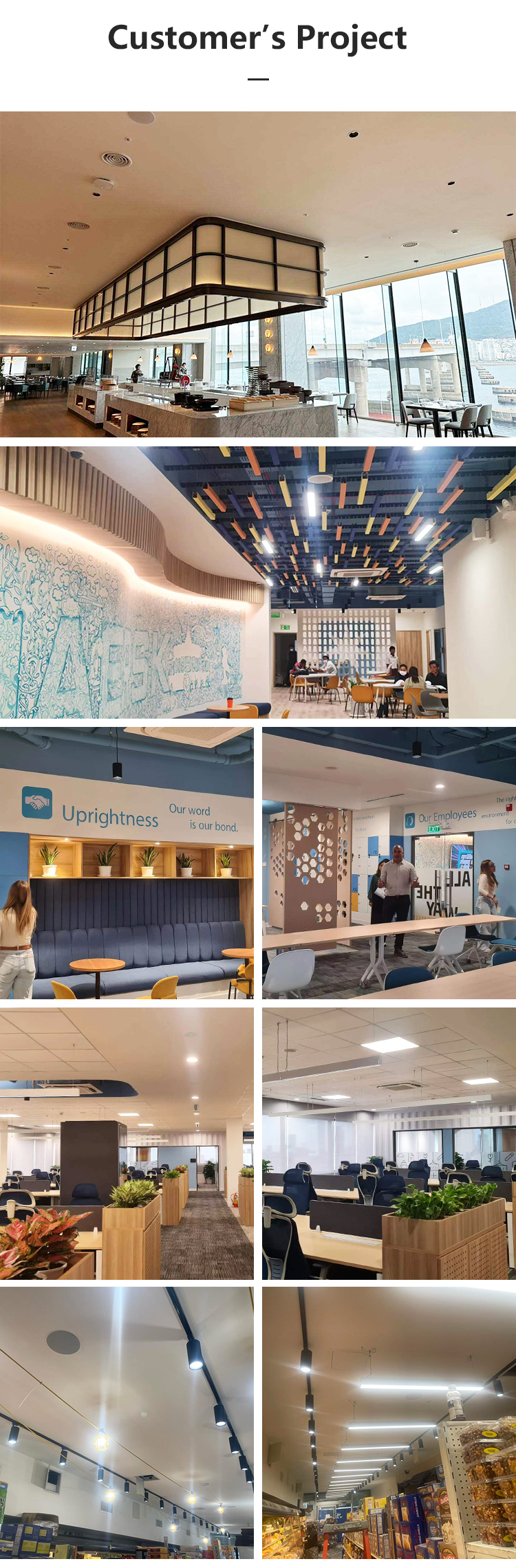

Project Case 1
Project Case 2
Showroom Preview

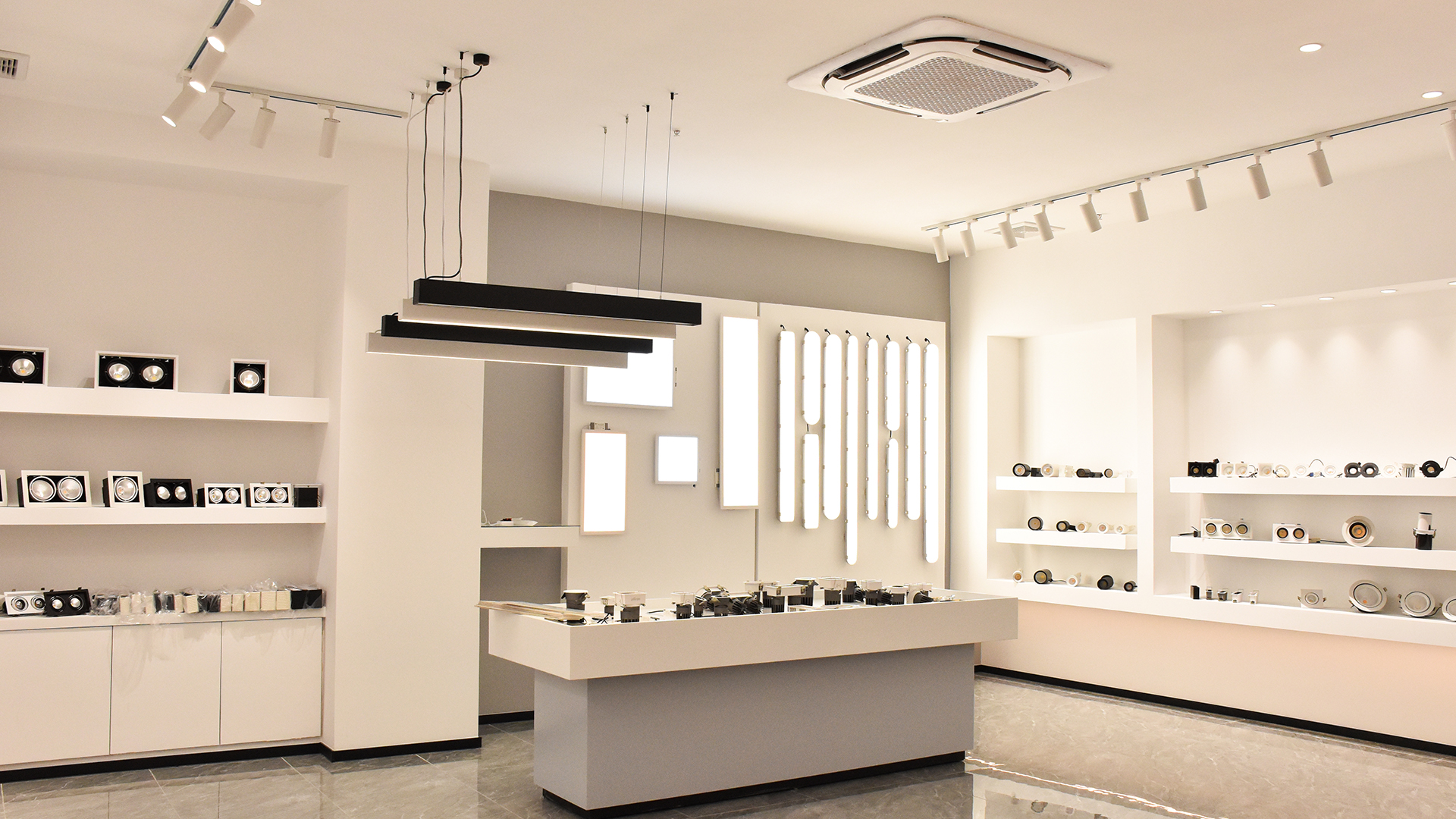

VR Showroom View

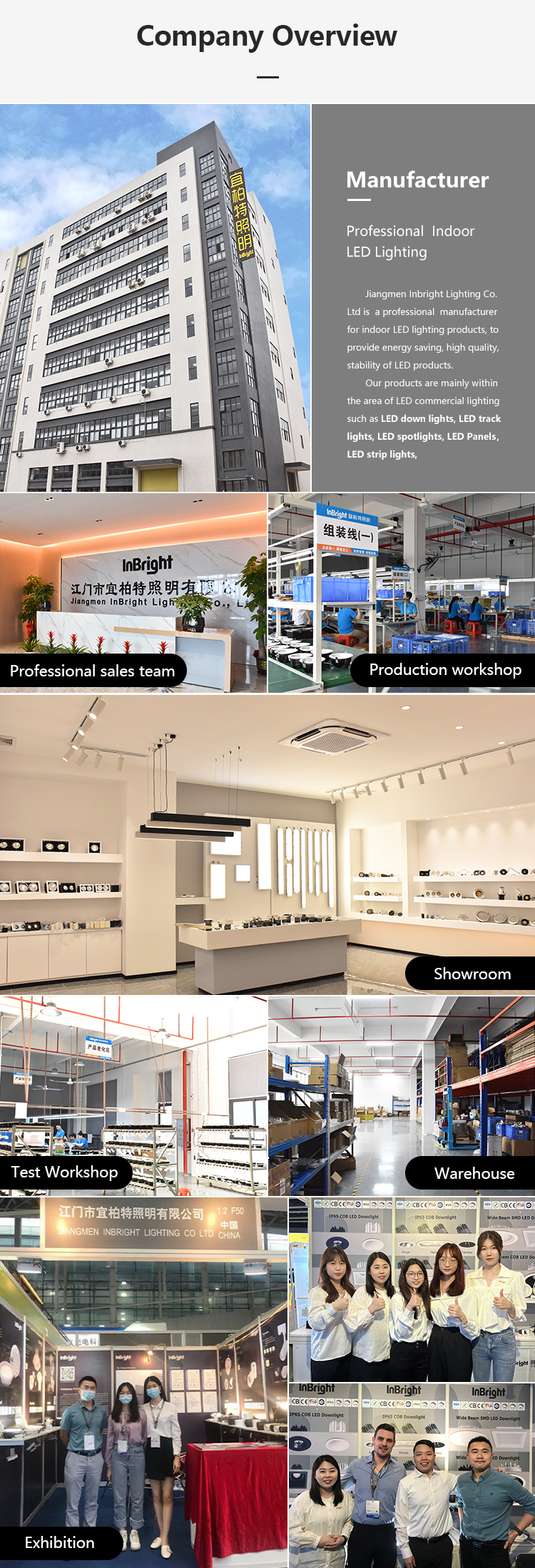

Factory Overview 1
Factory Overview 2
Certificates
Shipping and Logistics
Product Category Categories

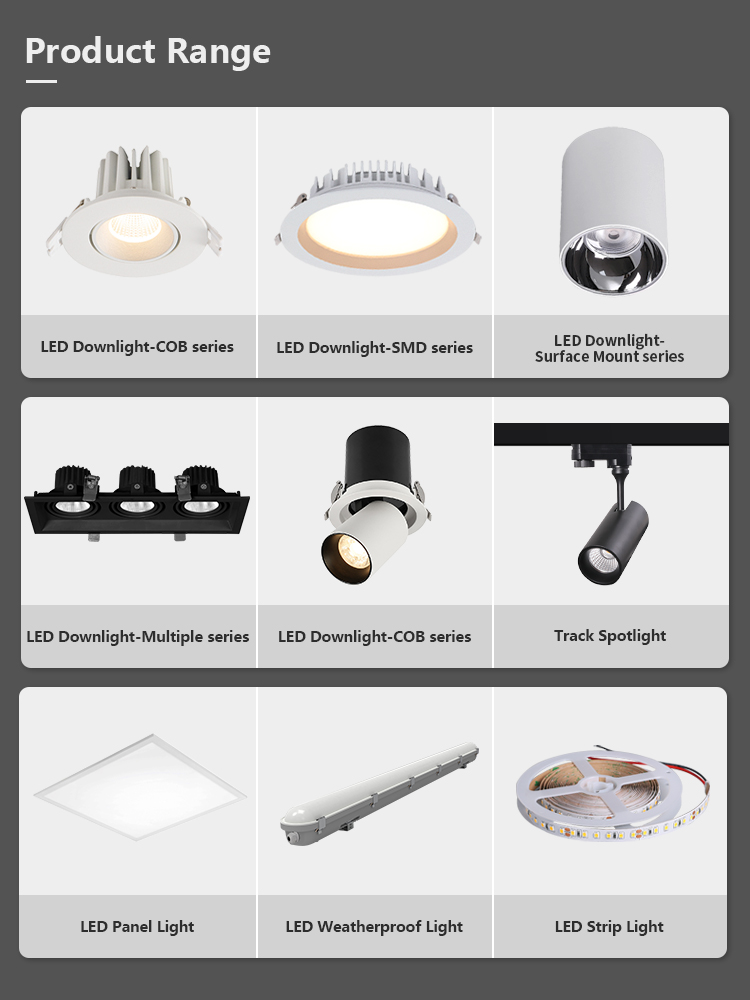

Lighting Series Guide
Frequently Asked Questions
What are the available wattages for these recessed LED spotlights?
This series of LED Recessed Spotlights is available in 8W, 18W, and 25W variants, allowing you to select the appropriate lumen output and power to match the design specifications of hotel rooms, lobbies, or residential spaces.

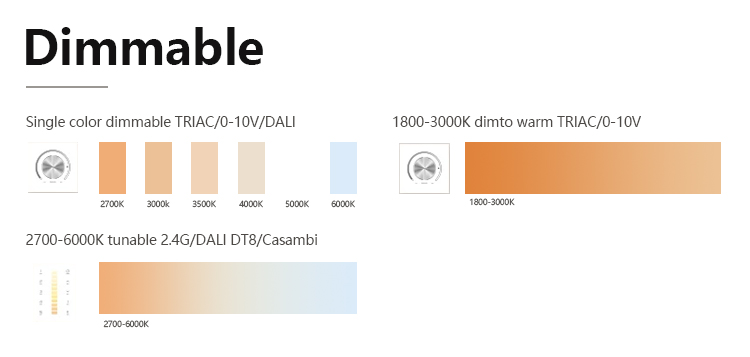

Is this spotlight series dimmable?
Yes. The spotlights are designed with dimmability to enable complete brightness control, helping to create custom ambiances ranging from high-focused illumination to relaxing, dim hotel lighting.
What is the advantage of a trimless housing design?
A trimless (or seamless) recessed housing installation hides the outer flange or edge of the light fixture under plaster or drywall. This results in a sleek, minimalist ceiling appearance where the light source integrates perfectly into the architecture.

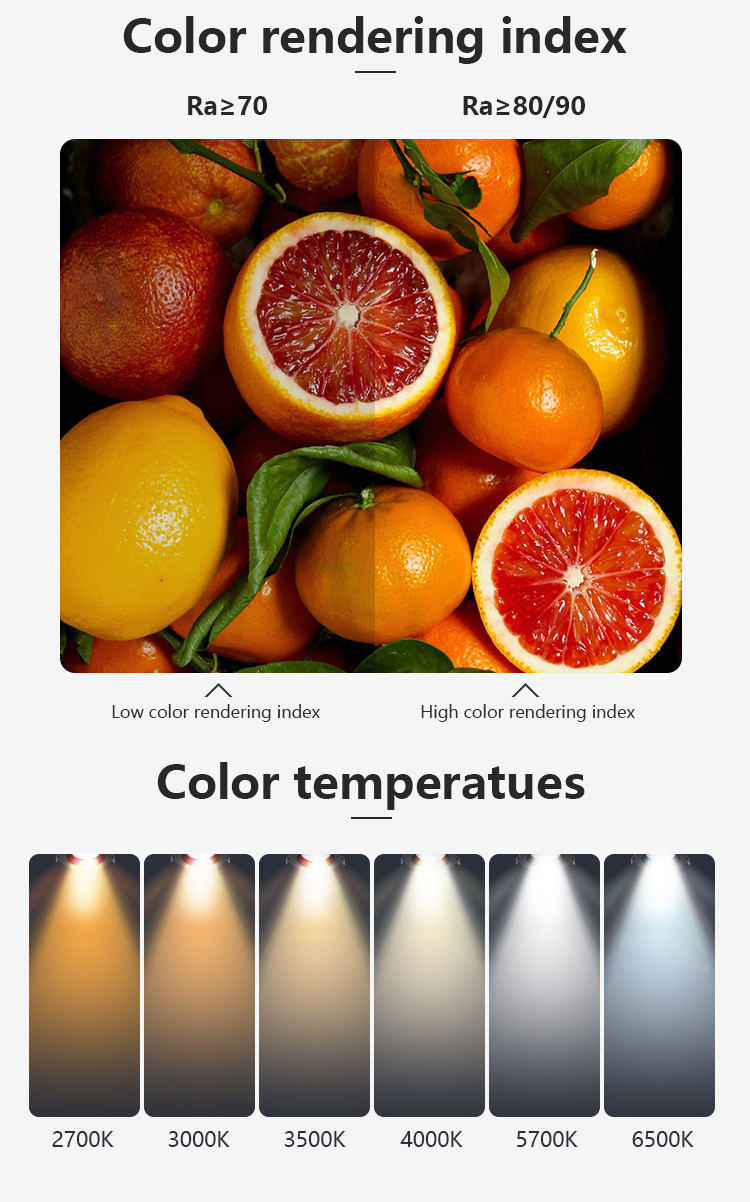

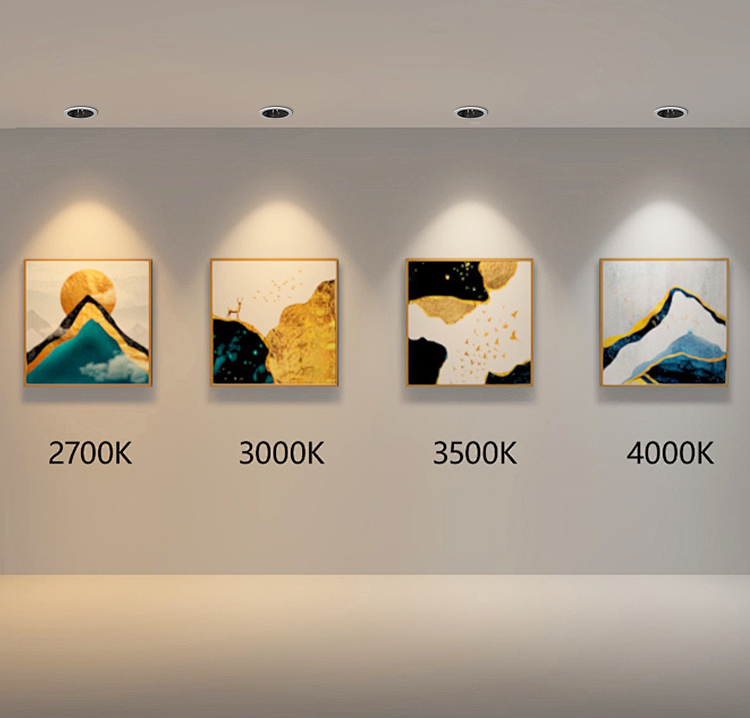

Which color temperatures (CCT) can I select?
We offer a wide range of color temperatures to suit any project requirement: warm white (2700K, 3000K), neutral white (3500K, 4000K), and cool daylight (5000K, 5700K, 6000K, 6500K).
What are the cutout sizes for installation?
The cutout hole sizes depend on the wattage selected: Ø57mm for the 8W version, Ø77mm for the 18W version, and Ø97mm for the 25W version. Please verify dimensions before cutting installation surfaces.
What housing material is used for the spotlights?

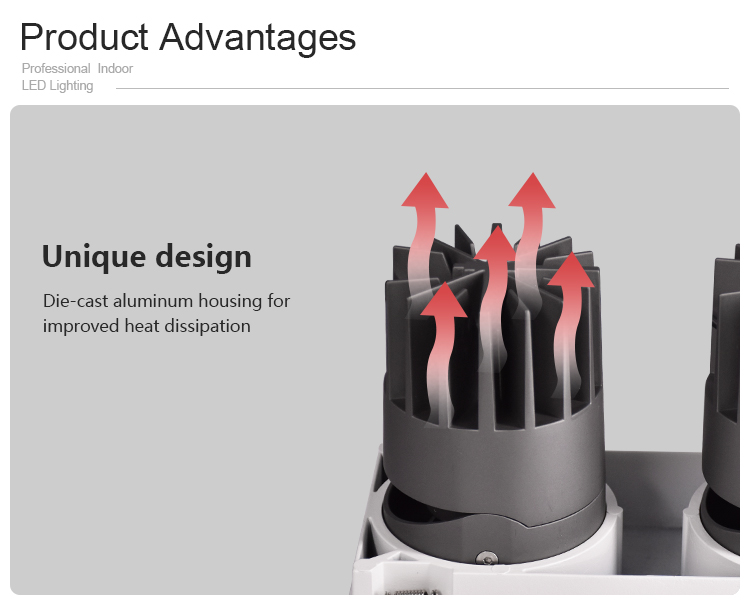

The housing body is made from high-grade die-casting aluminum. This provides exceptional structural durability and superior heat dissipation, significantly extending the life and efficiency of the LED chips.
