ceiling Infrared Motion Sensor Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Light Source LED
Lamp Type All Light
Emitting Color White
Material Plastic
Appliances Room
Lamp Power <60W
Waterproof Not Waterproof
Certification CE, RoHS
Ambient Light <10lux
Detection Distance Max. 6m(<24°c)
Detection Range 120
Installation Height 2-4.5m
Transport Package Color Box
Specification 117x65mm
Trademark OEM
Origin China
Production Capacity 50, 000PCS/Month
Product Description

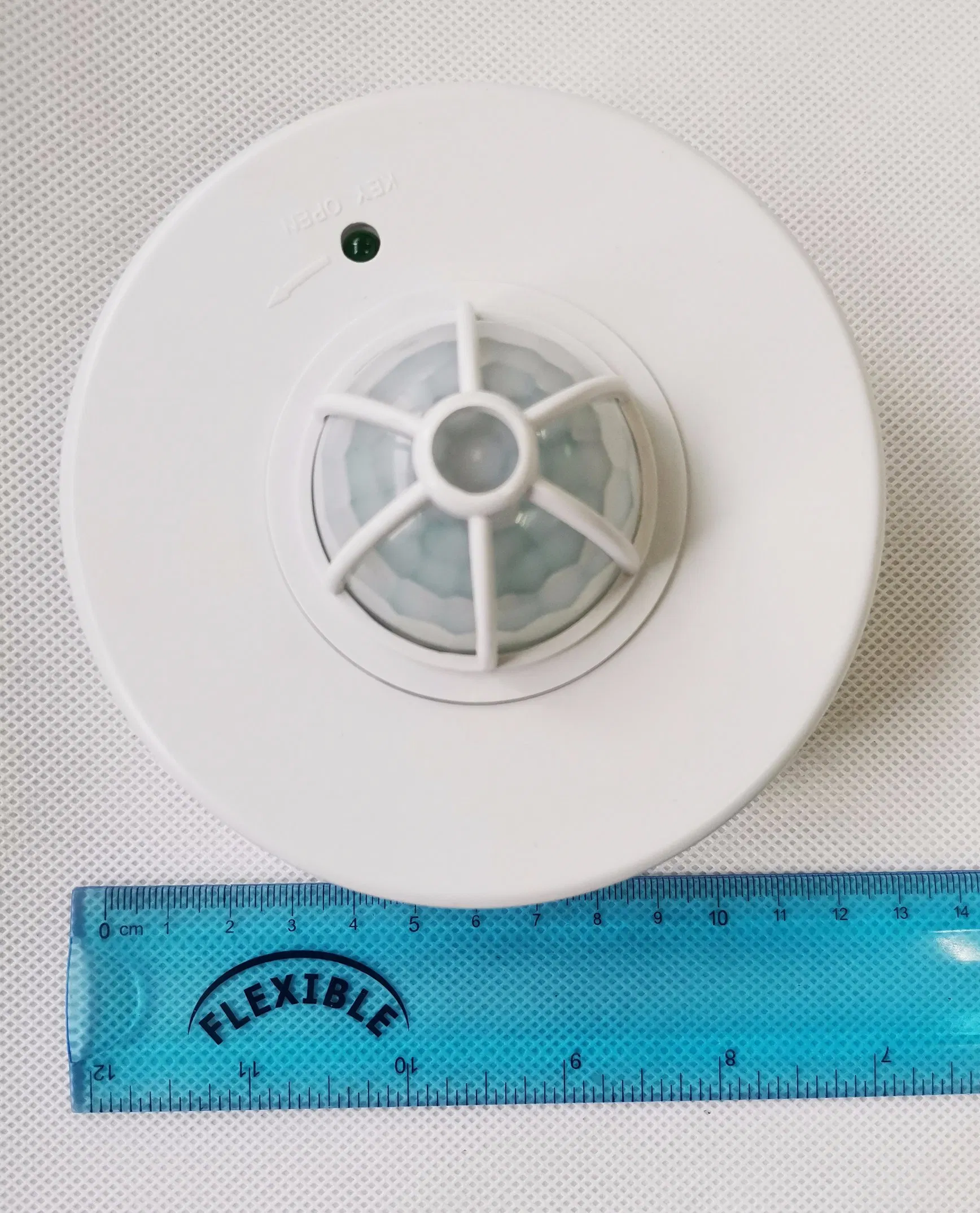

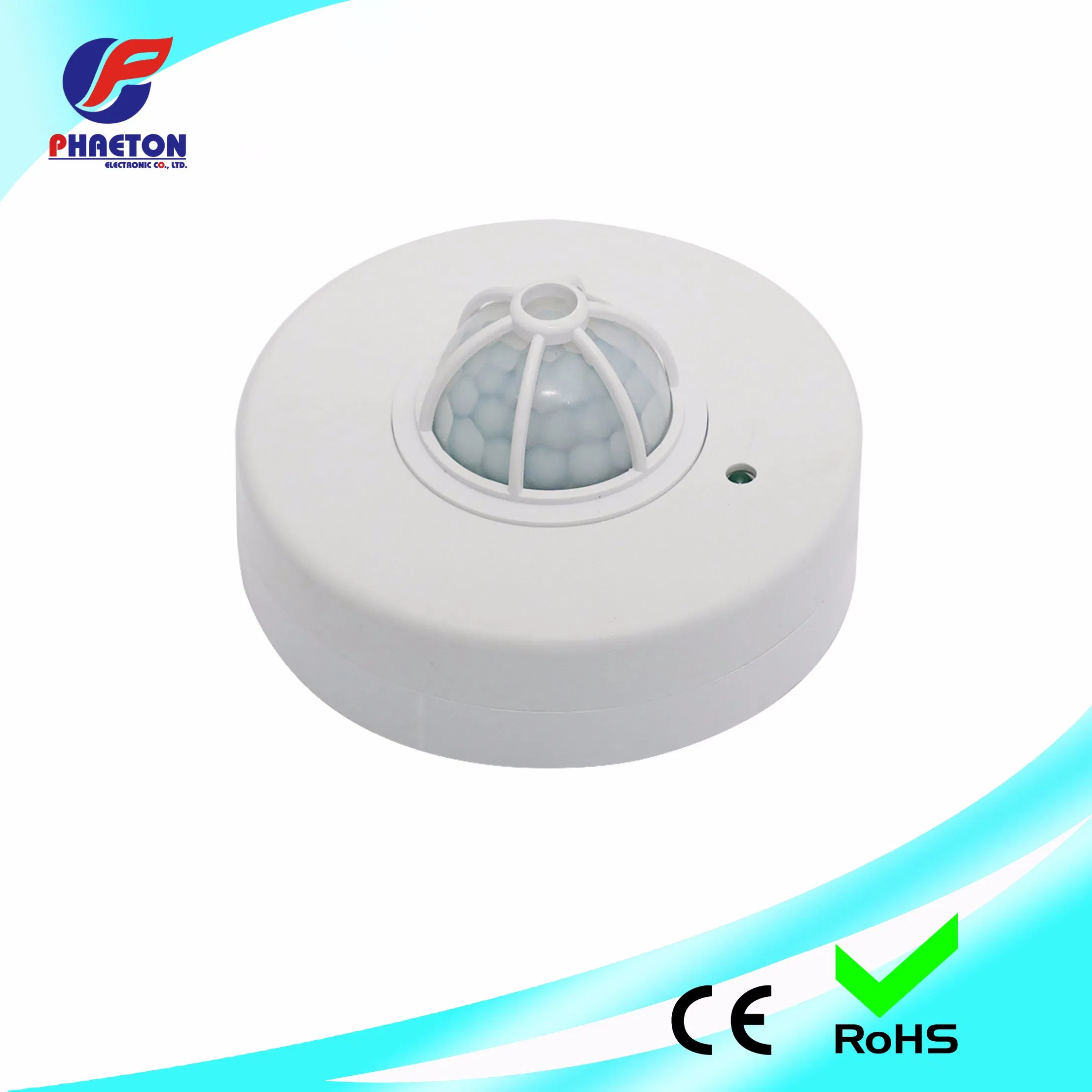

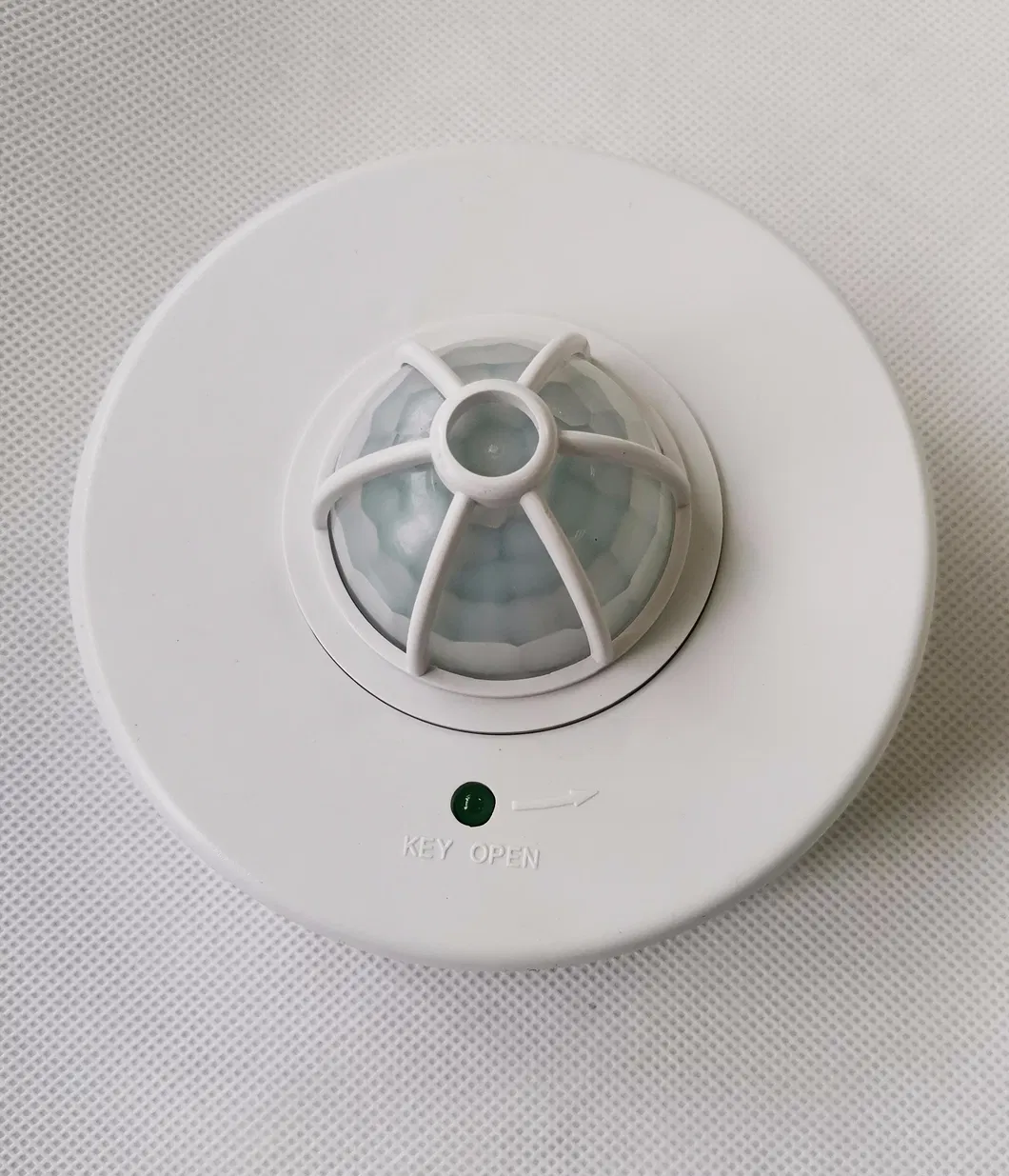

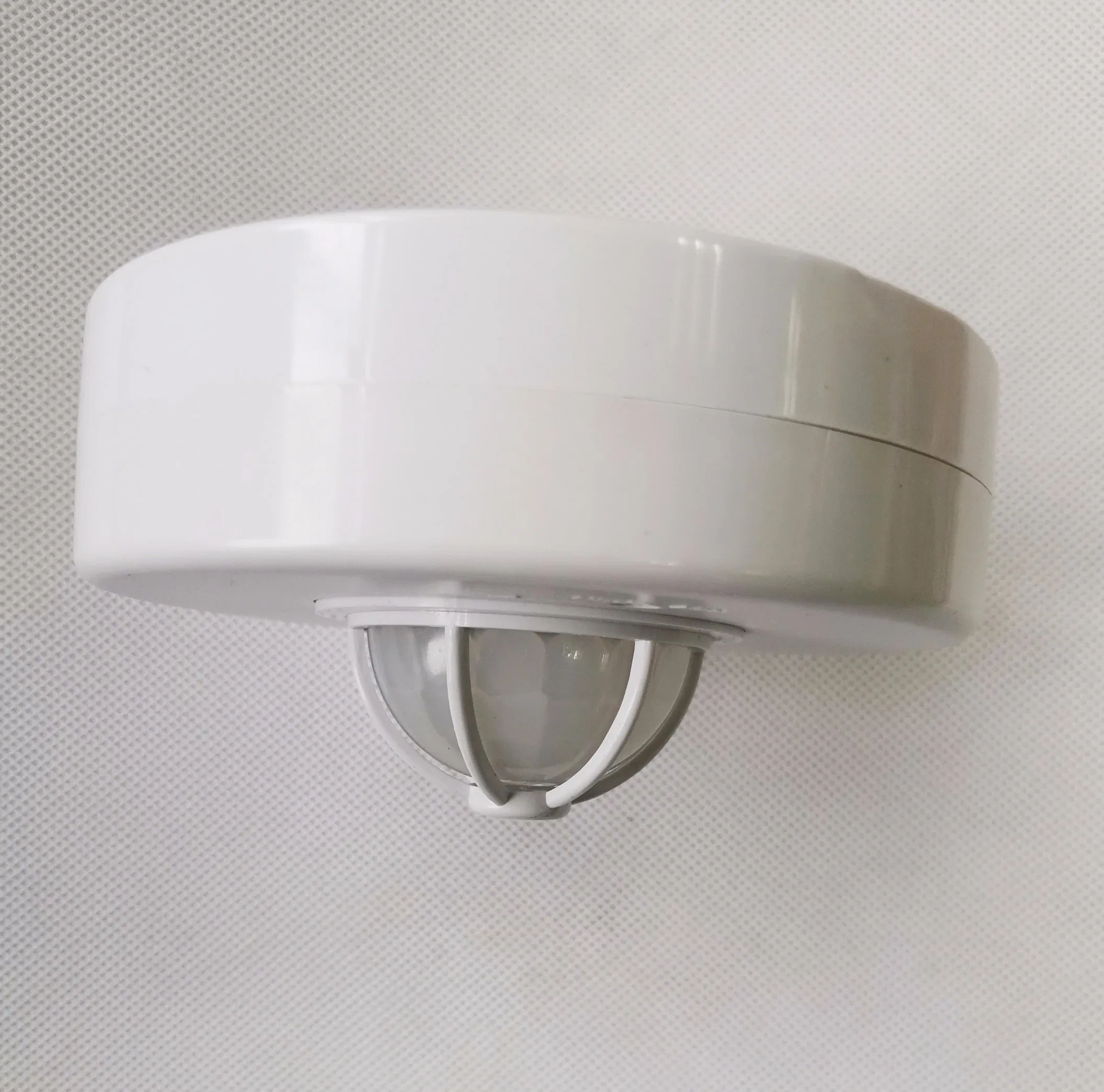

Ceiling Infrared Motion Sensor Light

Product function: The person enters the sensing range and immediately turns on the power. When the person leaves, the power is turned off according to the set time. Achieve intelligent energy-saving control purposes. LED lights, energy-saving lamps, fluorescent lamps, incandescent lamps, alarms, exhaust fans, etc.

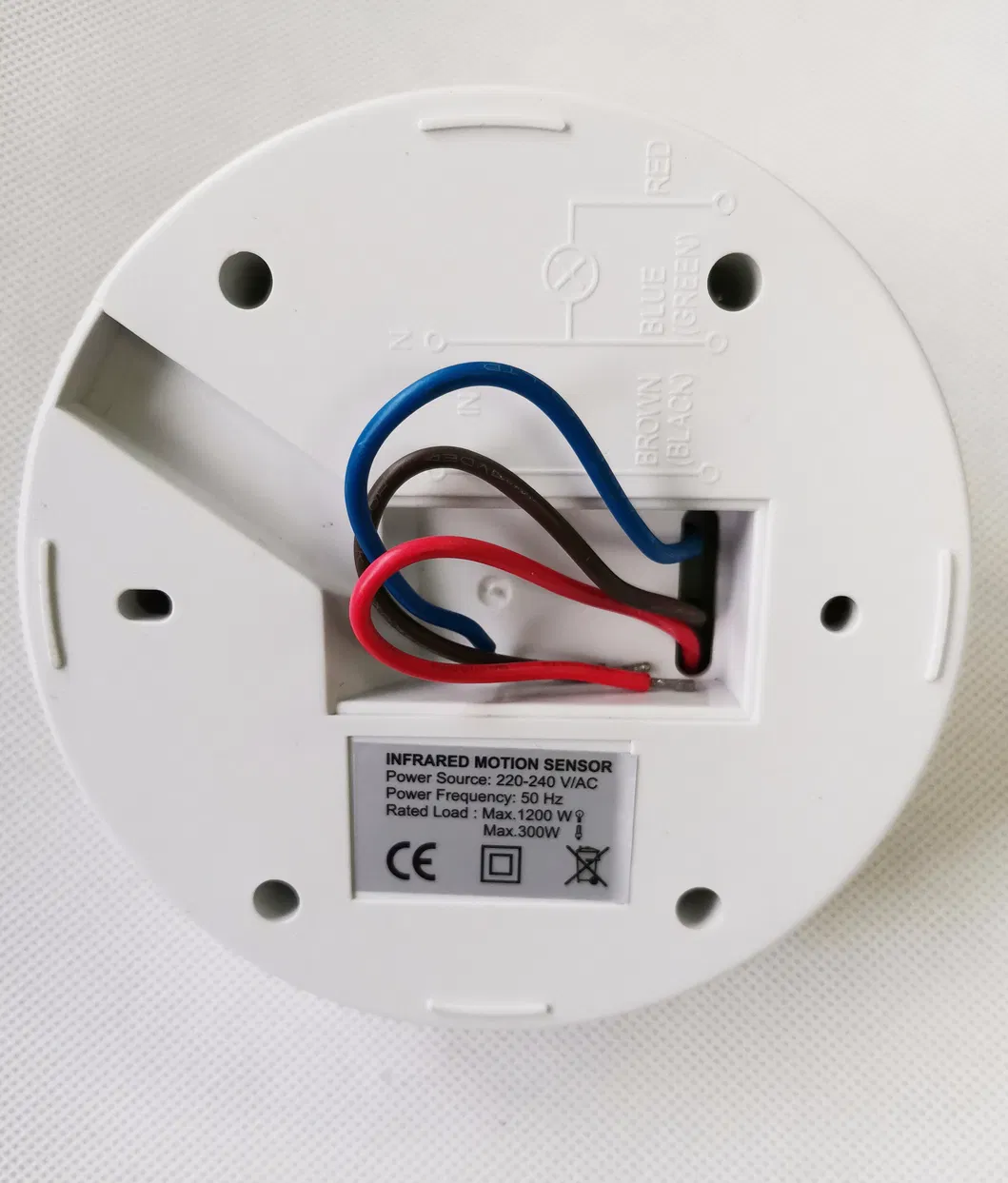

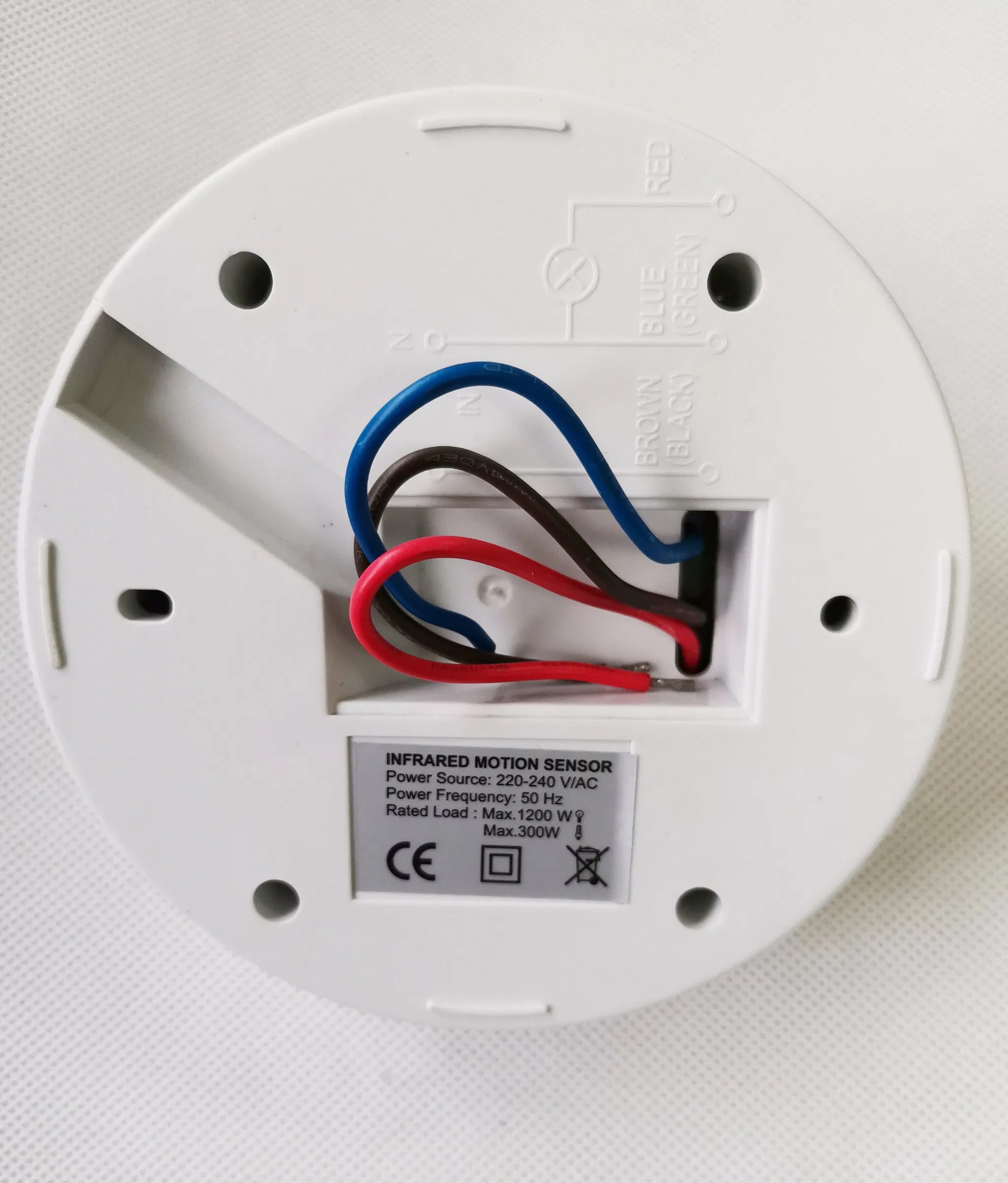

  • Working voltage: AC 110-240V range universal voltage and DC DC9-24V universal voltage are optional (don't worry about voltage instability).
  • Rated load current: 10A (AC voltage rating allows control of incandescent lamps 1200W, LED, energy-saving lamps and other electrical appliances 300w, DC voltage 120W).
  • Sensing distance: adjustable within 8 meters in diameter.
  • Sensing angle: 360 degree depression angle of 140 degrees.
  • Delay adjustment range: 5 seconds to 10 minutes (Note: Delay refers to how long the power is turned off after the person leaves, not how long after the person comes to the induction, they are immediately sensed).
  • Power consumption: <0.05W.
FAQ

QHow does the ceiling Infrared Motion Sensor Light operate?

The person enters the sensing range and the sensor immediately turns on the power. When the person leaves, the power automatically turns off according to your set time delay to achieve intelligent energy-saving control.

QWhat types of light sources and appliances are compatible?

It is highly compatible with LED lights, energy-saving lamps, fluorescent lamps, incandescent lamps, alarms, exhaust fans, and other compatible electronic devices.

QWhat is the supported working voltage range?

It supports a universal working voltage range of AC 110-240V and an optional DC 9-24V universal voltage range, preventing issues arising from voltage instability.

QWhat are the detection range and angle limitations?

It features a 360-degree horizontal sensing angle with a 140-degree depression angle, and a detection distance that is adjustable within 8 meters in diameter.

QCan the delay time for turning off the light be adjusted?

Yes, the delay time adjustment range is from 5 seconds to 10 minutes. The delay begins counting down after the person leaves the detection range.

QIs the Minimum Order Quantity (MOQ) fixed?

No, the MOQ is flexible. We accept small orders as trial orders to accommodate different customer requirements and project needs.
