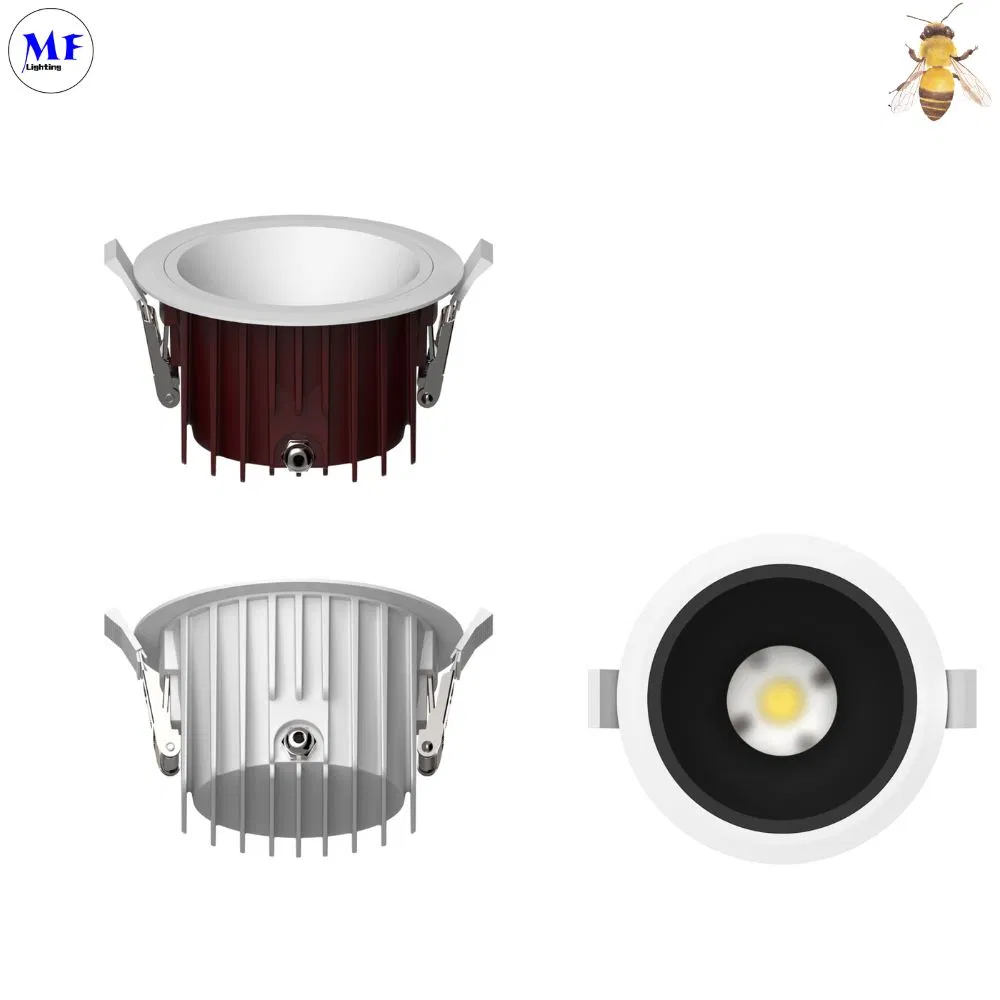

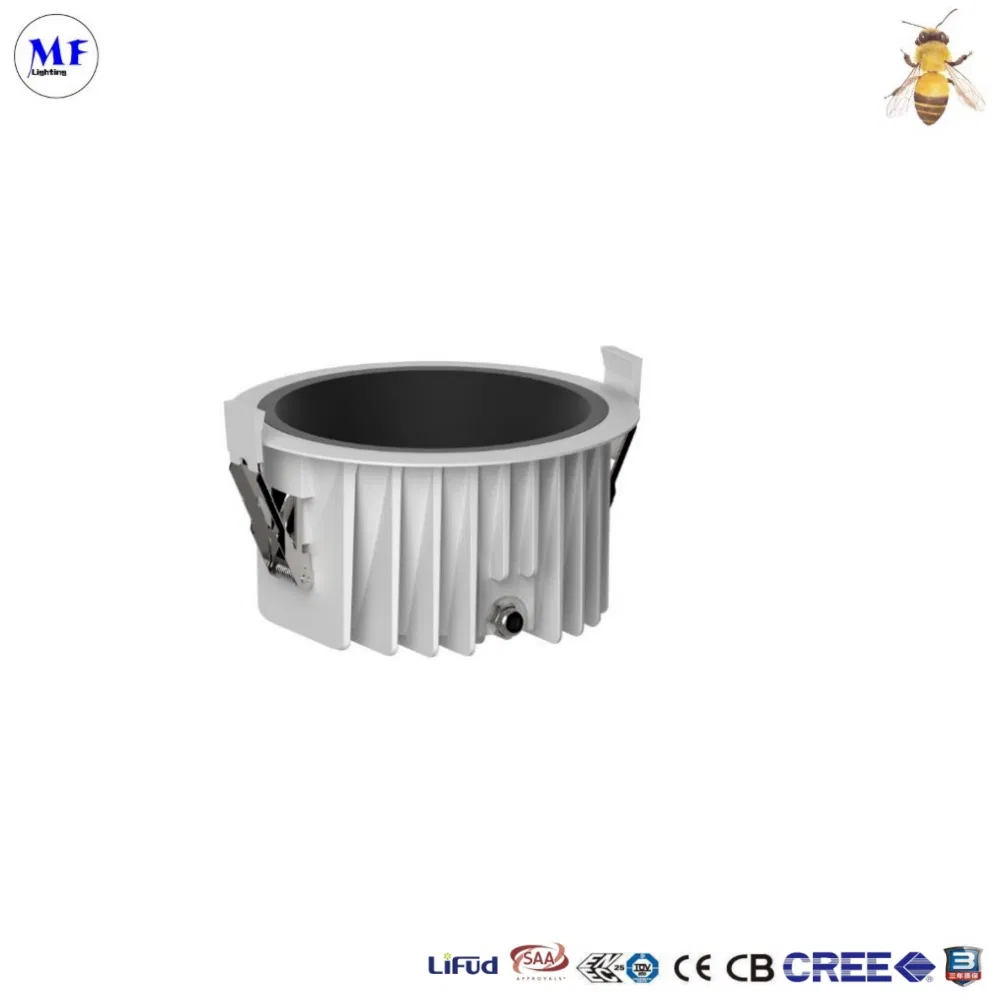

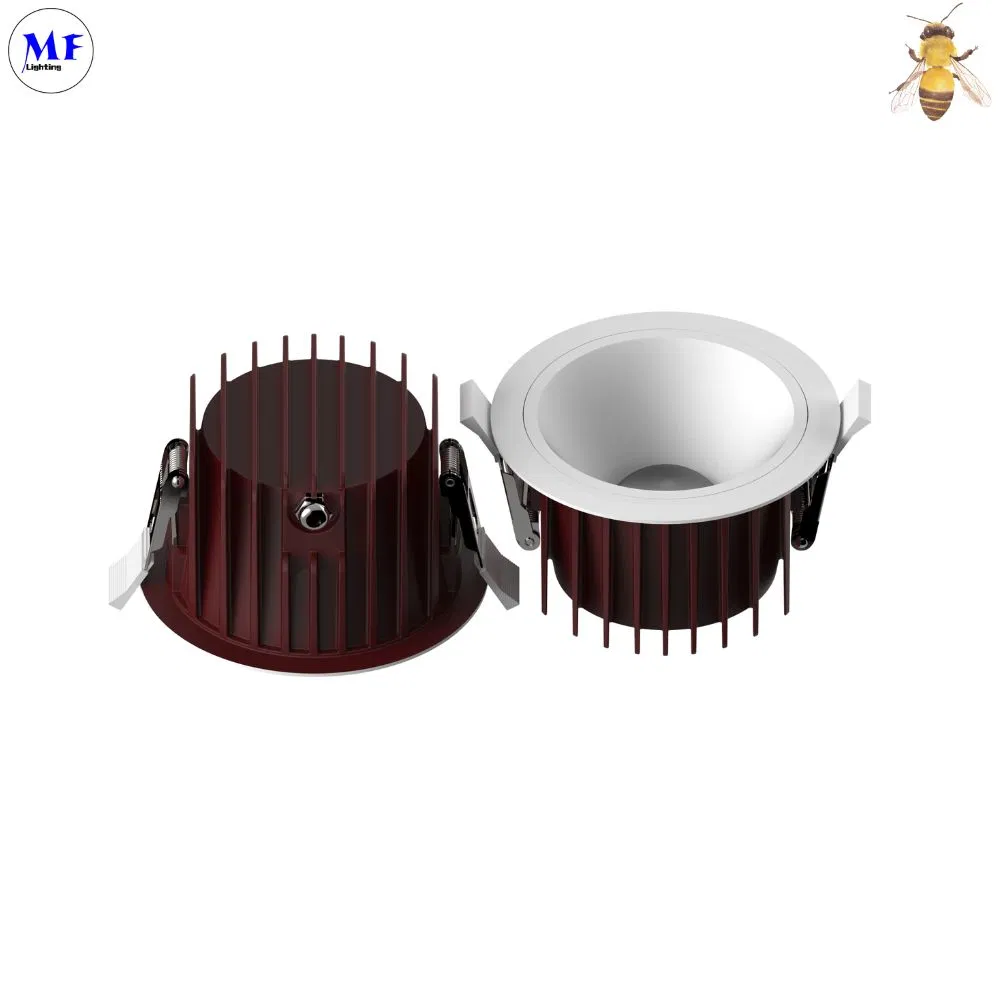

7W/10W/15W/20W/25W/30W/50W/40W/60W 2inch 3inch 4inch IP65 Waterproof Dustproof LED Spot Down Light with Dimmable 0-10V Dali Control for Bathroom Shower Room

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
7W/10W/15W/20W/25W/30W/50W/40W/60W 2inch 3inch 4inch IP65 Waterproof Dustproof LED Spot Down Light With Dimmable 0-10V Dali control For Bathroom Shower room
Model NO.MF Down Light Bee-5
Power7W/10W/15W/20W/25W/30W/50W/40W/60W
Color Temperature2700K, 3000K, 4000K, 5000K
Lamp Body MaterialAluminum+PC
Source NumberSingle Plug
InstallationRecessed
Lamp InstallationPlug Lamp
Switch TypeWith Remote Control
Warranty3 Years
ApplicationHome, Office, Restaurant, Retail, Kitchen
IP RatingIP65
CertificationCCC, CE, RoHS, SAA, TUV
LED TypeCREE
Power SupplyLifud/CE Certificate Power
System Efficacy100lm/W±5%
Power Frequency50~60Hz
Output Voltage28.8~48VDC
Output Current350mA~ 2.0A
CRIRa80 / Ra90
Power Efficiency>90%
System Efficiency>90%
Power Factor>0.90
Class RateClass I
Dimmable1~10V Dim/Dali Options
Life Span7 Years (12 Hours/Day)
Storage Temp.-40~+60°c
Operating Temp.-40~+40°c
Transport PackageCarton Box
OriginChina
HS Code9405429000
Production Cap.10000pcs/Year
Product Features
  • High luminous efficacy
  • Direct replacement for compact fluorescent lamp downlights
  • Energy savings up to 60% (compared to luminaires using CFL lamps)
  • Very homogenous light output
  • Functional design with easy installation and fast connection
  • 3 years guarantee
  • Type of protection: IP65 Waterproof & Dustproof
Diameter of Required Ceiling Cut-out:
MF-D1001B: 15W, Φ100mm; 20W, Φ110mm; 30W, Φ145mm; 50W, Φ200mm
MF-D1002B: 5W, L90xW90mm; 20W, L110xW110mm; 30W, L145xW145mm; 50W, L200xW200mm;
MF-TH185: 10W, Φ87mm; 15W, Φ110mm; 20W, Φ130mm; 30W, Φ140; 40W, Φ170mm; 60W, Φ200mm
IP65 Waterproof LED Spot Down Light Features
Specification Details
Parameter Value / Details
Nominal wattage 7W/10W/15W/20W/25W/30W/50W/40W/60W
Nominal voltage 100-240 V
Mains frequency 50-60 Hz
Nominal current 350.000 mA
Power factor 0.9
Protection class I
Installation Method Recessed Mount
Dimmable 1~10V Dim/DALi as options
Luminous efficacy 100 lm/W
Color temperature 3000 K / 4500 K / 6000 K
Fixture Color White ring, grey housing
Color rendering index Ra ≥80
Beam angle 15°/24°/36°/8°/15°/24°/36°/60°

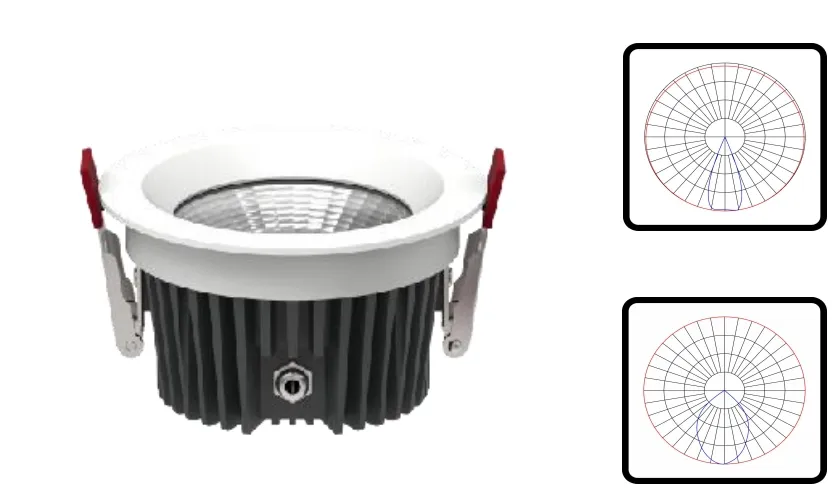

Beam Options
Beam Options for LED Spot Down Light

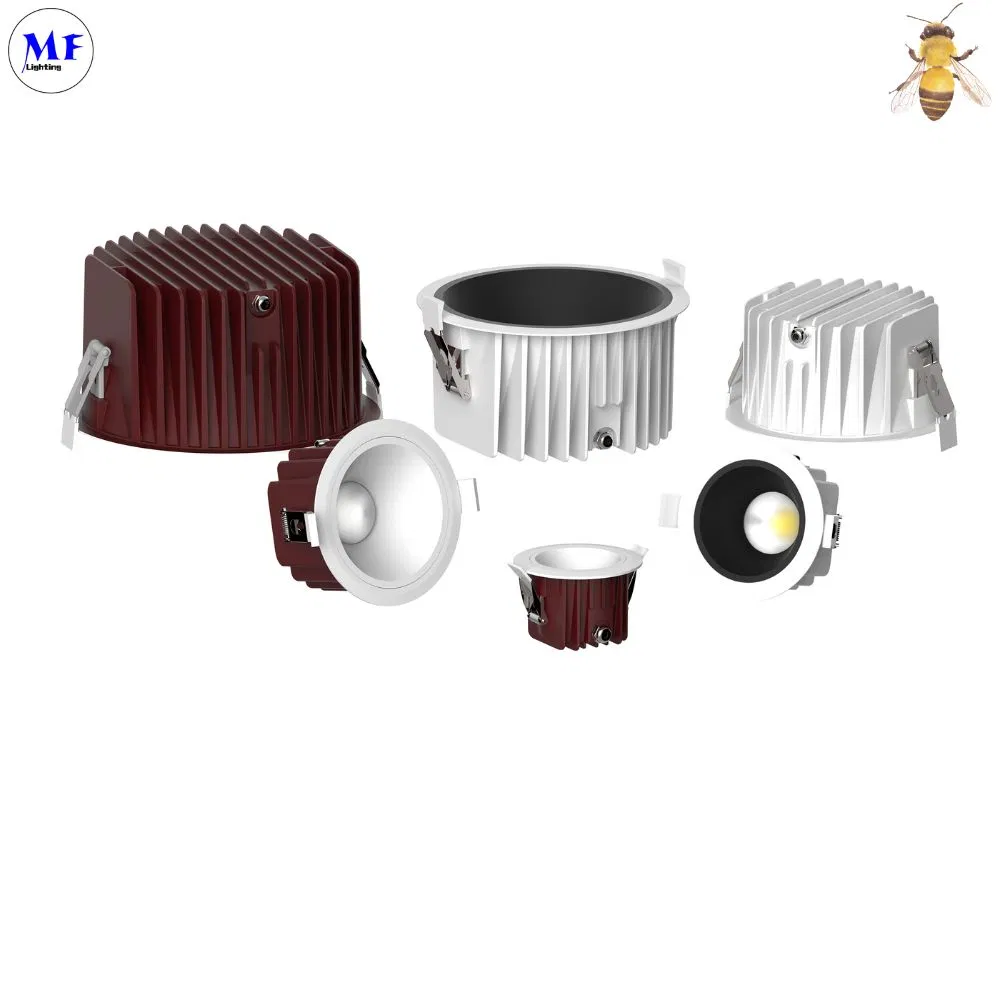

Detailed Product Photos

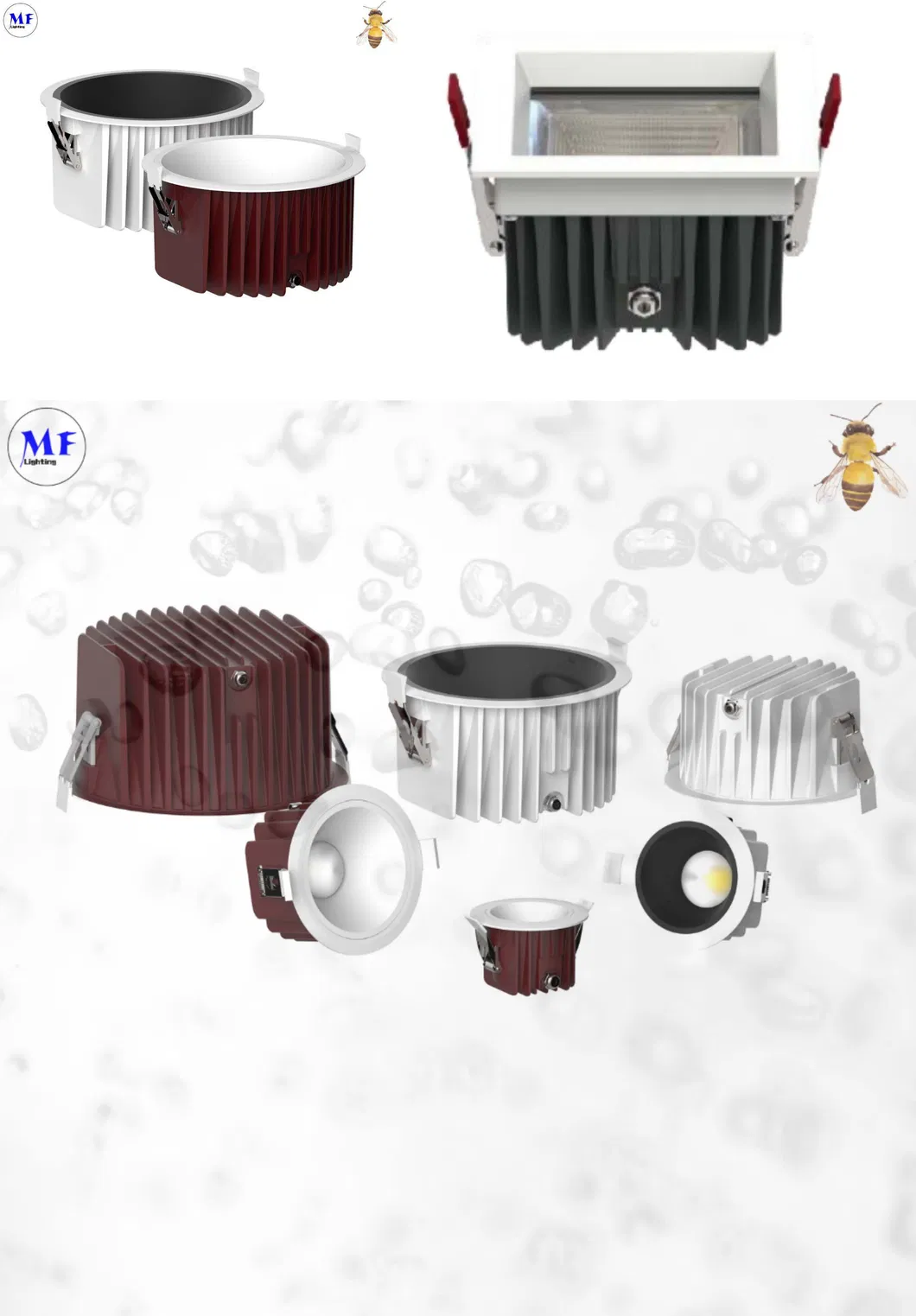

Detailed View LED Down Light

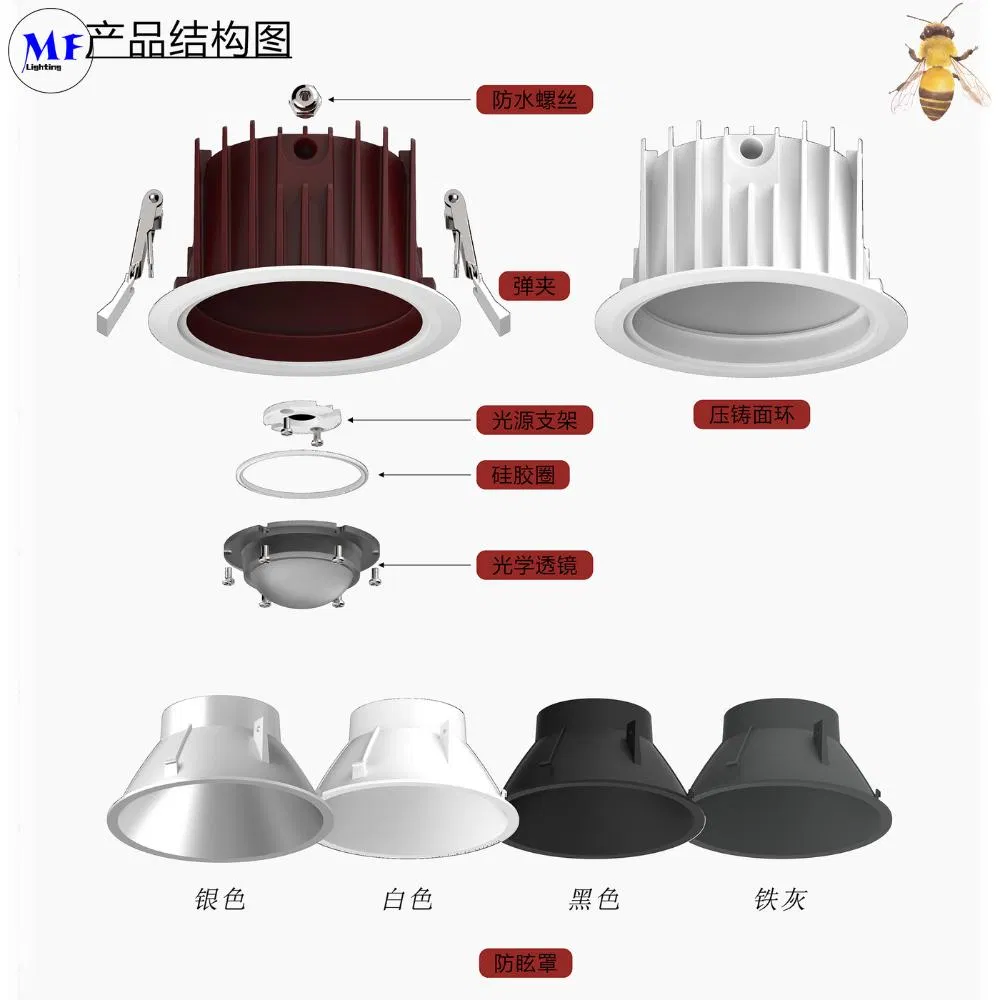

Detailed Closeup LED Down Light
Product Dimensions
MF-D1001B Outlook Size (MM):
15W, Φ110xH59mm; 20W, Φ127xH70mm; 30W, Φ165xH80mm; 50W, Φ220xH90mm
MF-D1002B Outlook Size (MM):
15W, L110xW110xH59mm; 20W, L127xW127xH70mm; 30W, L165xW165xH80mm; 50W, L220xW220xH90mm
MF-TH185 Outlook Size (MM):
10W, Φ87xH58mm; 15W, Φ110xH67mm; 20W, Φ130xH75mm; 30W, Φ160xH84mm; 40W, Φ190xH98mm; 60W, Φ225xH115mm
Product Application

LED downlights are highly versatile lighting fixtures that find wide application in various settings. With their sleek design and energy-efficient performance, these LED downlights are commonly used in residential, commercial, and hospitality environments.

In residential settings, they are installed in kitchens, living rooms, and bedrooms to provide ambient or task lighting. They offer a modern and stylish lighting solution while consuming less energy compared to traditional options, creating a warm and inviting atmosphere.

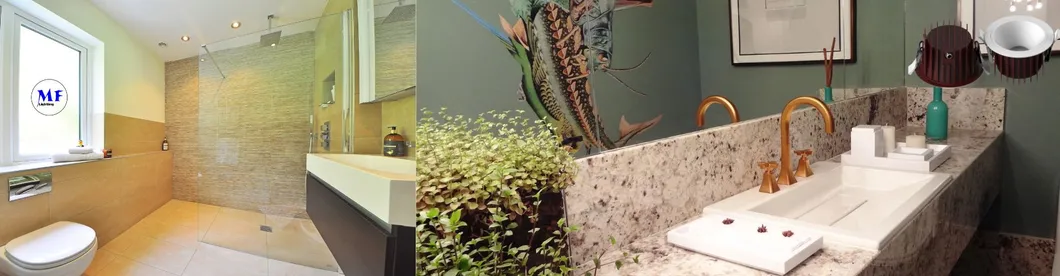

Residential Application LED Down Light Kitchen LED Down Light Application

In commercial spaces such as offices, retail stores, and showrooms, LED downlights illuminate the area effectively. These downlights offer a focused and uniform light distribution, making them ideal for highlighting specific areas or products. LED technology ensures long-lasting performance, reducing maintenance costs.

Hospitality venues, including hotels, restaurants, and bars, benefit from LED downlights to create a welcoming and visually appealing ambiance. They are perfect for general lighting, accenting architectural features, or accentuating artwork and displays. The dimmable feature allows for flexible lighting control to adjust light levels based on desired atmospheres.

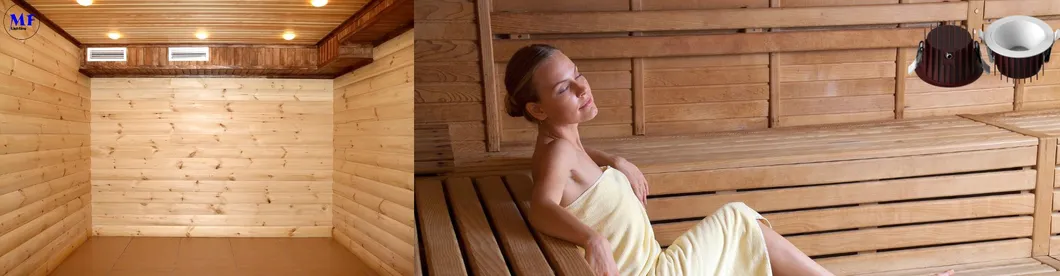

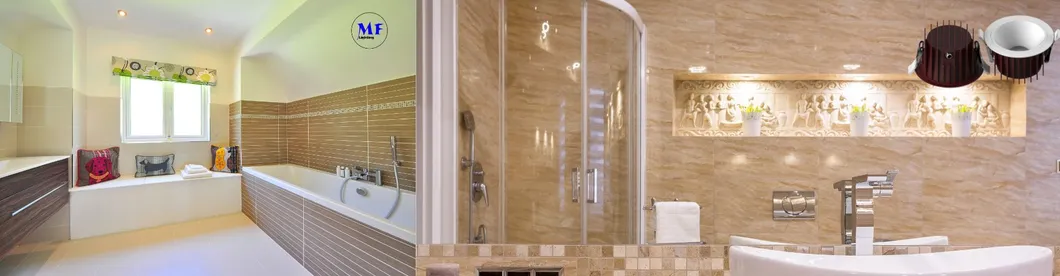

Commercial LED Down Light Application Office Space LED Down Light

Museums and Galleries prefer LED downlights to illuminate exhibits and artwork with precision and accuracy. Their directional lighting helps to highlight fine details and colors while minimizing heat and UV emissions that could potentially damage the artwork.

Showrooms utilize these lights to showcase products in retail spaces, car dealerships, and jewelry stores. Their focused beam and adjustable angles allow for effective accent lighting, drawing attention to specific merchandise.

Museum Lighting LED Down Light Gallery LED Down Light Application

Offices, work environments, educational institutions, and healthcare facilities benefit from the bright, glare-free illumination provided by these downlights. They reduce eye strain, support productivity, and promote well-being in waiting areas or patient rooms. Outdoor versions with suitable IP ratings enhance safety on facades, pathways, and gardens.

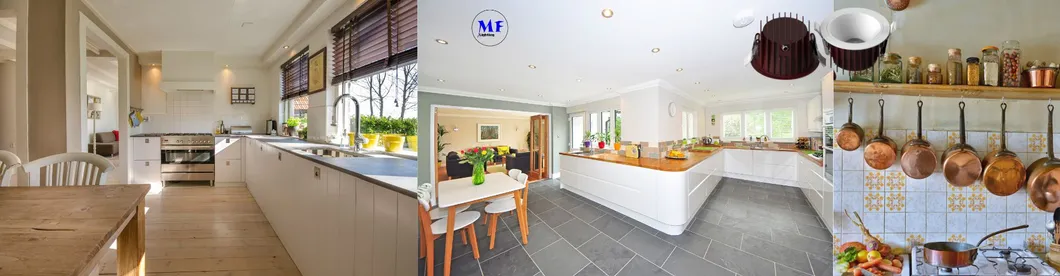

Office Lighting Solution Outdoor Facade Lighting application
Packaging Info

The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit.

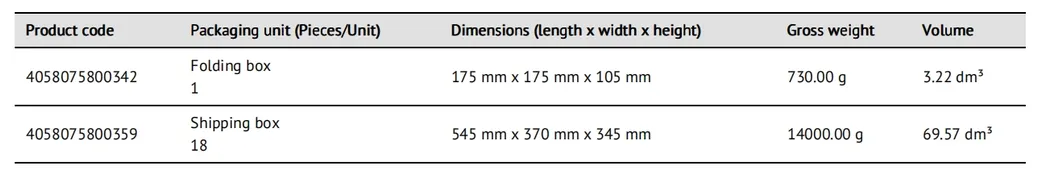

Packaging Standard Units

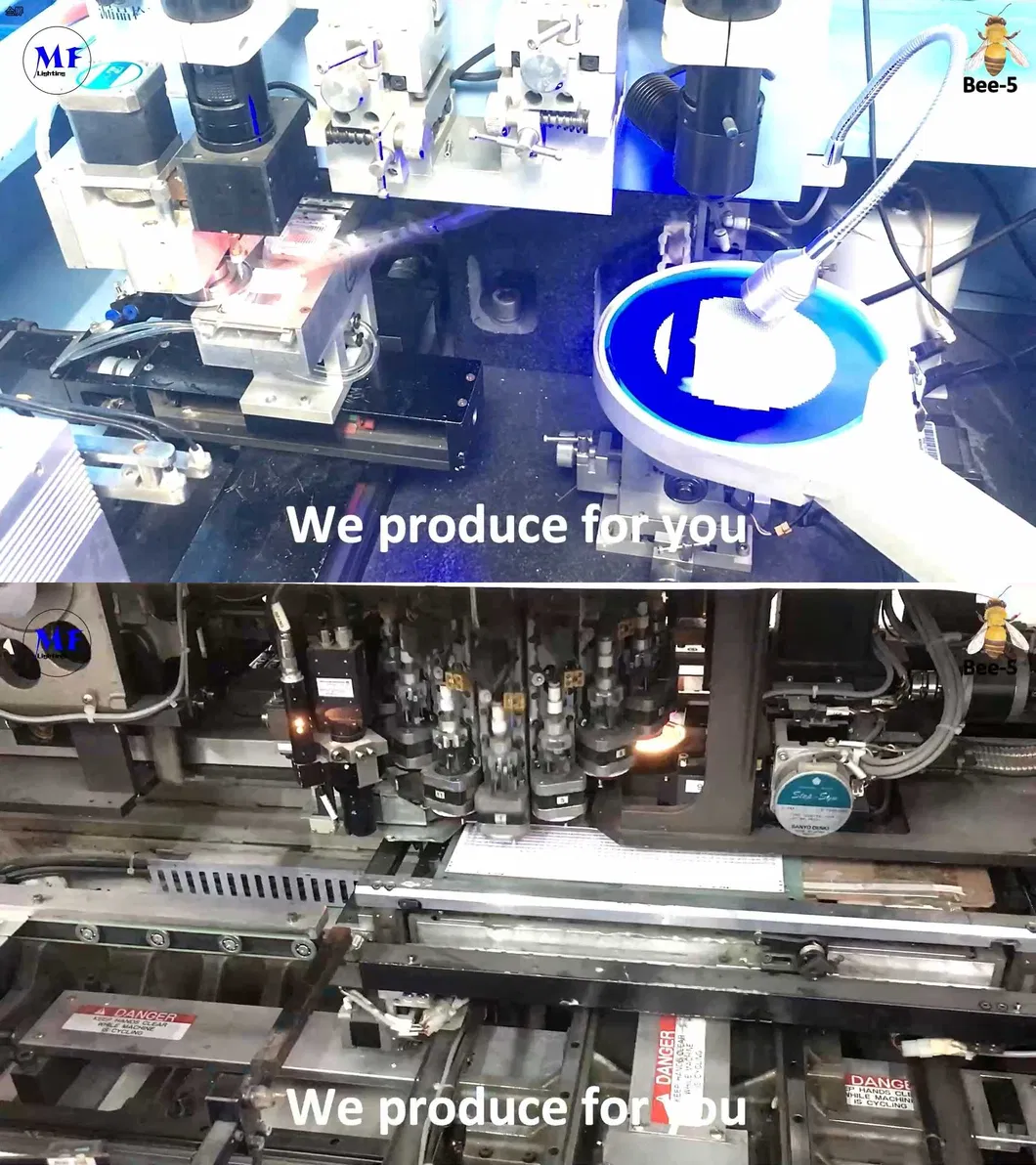

Packaging Specifications Box

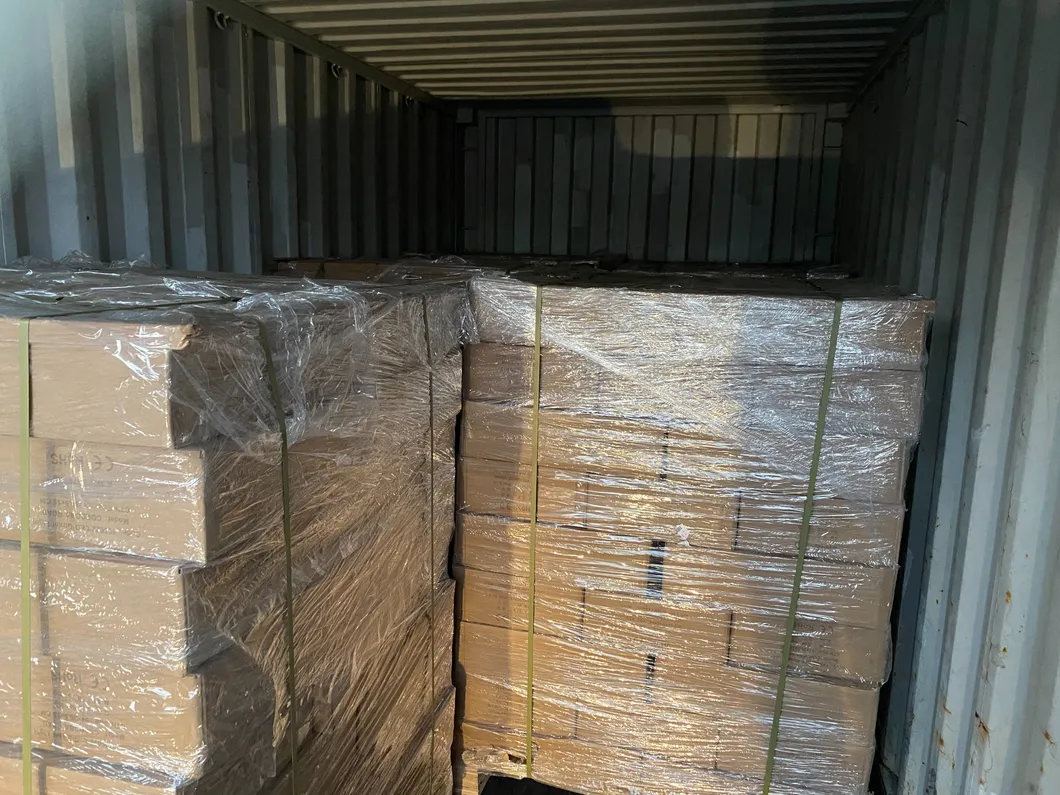

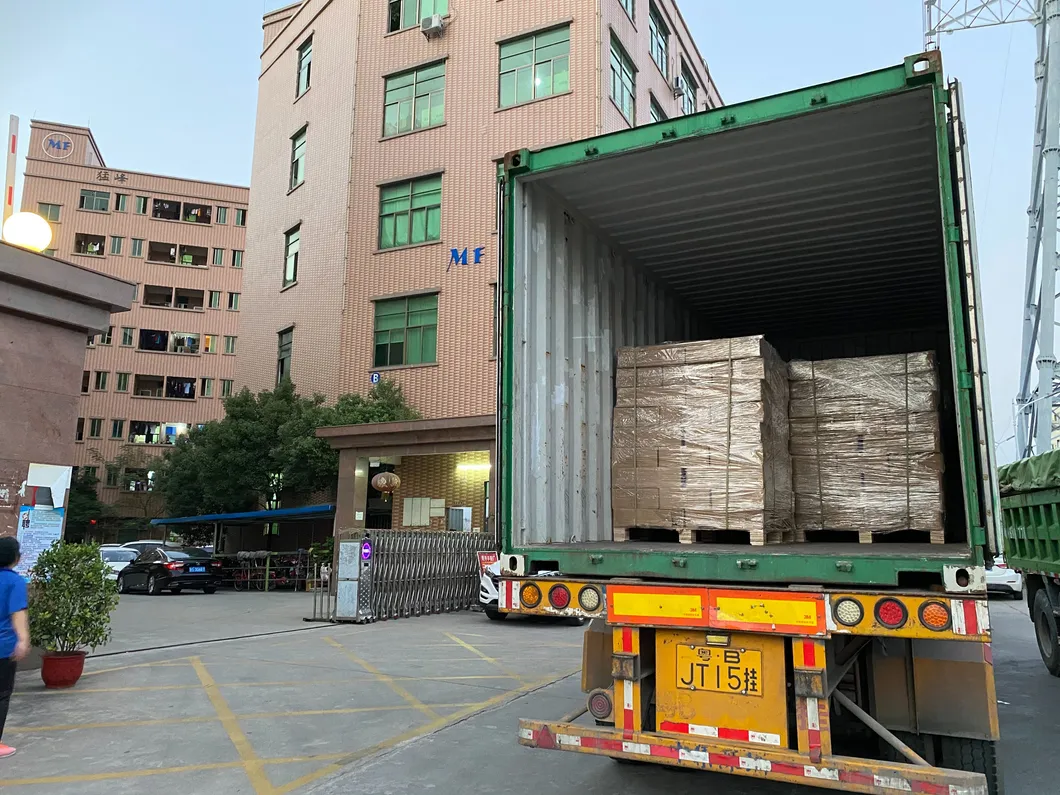

Inner Packaging Setup Box Package Preparation Carton Box Final Packaging
Shipping Carton Info
Warehouse Storage Packing
Frequently Asked Questions (FAQ)
What is the waterproof and dustproof rating of these downlights?
These LED downlights feature an IP65 protection rating, which makes them highly waterproof and dustproof. They are designed to withstand moisture and water splashes, making them perfect for bathrooms, shower rooms, kitchens, and select outdoor applications.
Are these LED spot down lights dimmable?
Yes, these downlights support dimming functionality. They are compatible with both 1-10V Dimming and DALI control configurations as optional upgrades to meet your specific project needs.
What wattage and color temperature options are available?
We offer a wide range of wattages: 7W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, and 60W. Color temperatures are available in 2700K, 3000K, 4000K, and 5000K to achieve the ideal lighting color profile for your space.
What is the warranty period and expected lifespan of the product?
These LED downlights come with a 3-year guarantee. Their expected lifespan is up to 7 years when operated for approximately 12 hours per day.
What kind of light distribution and beam angles do they offer?
These fixtures provide exceptionally homogenous light distribution. Multiple beam angle options are available, including 8°, 15°, 24°, 36°, and 60° to accommodate both spotlighting and general floodlight layouts.
What materials are used for the lamp construction?
The lamp body is manufactured using high-grade Aluminum combined with PC materials, ensuring durable heat dissipation, structural robustness, and reliable long-term performance.
