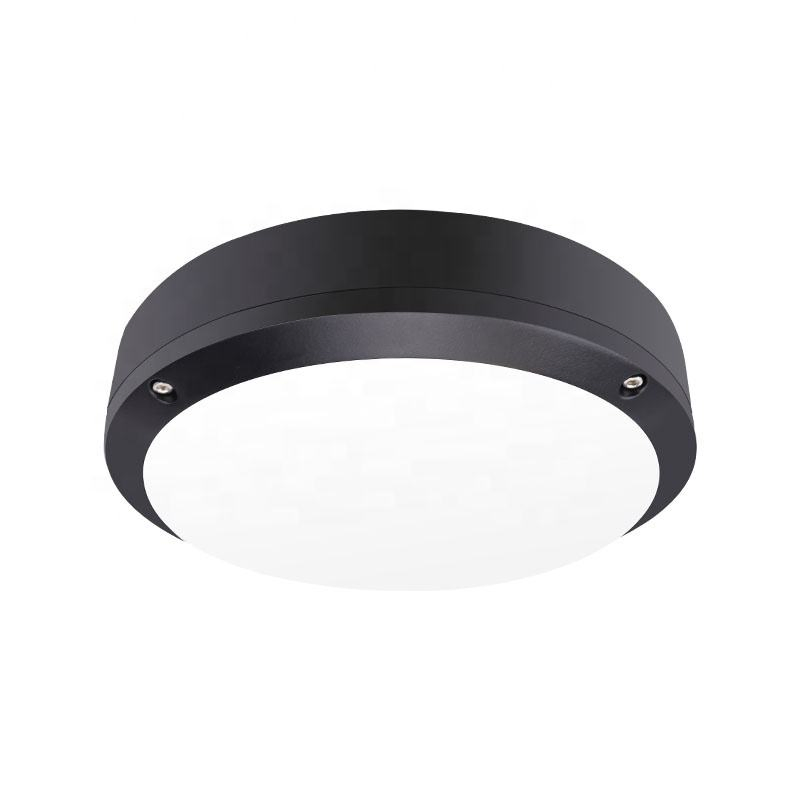

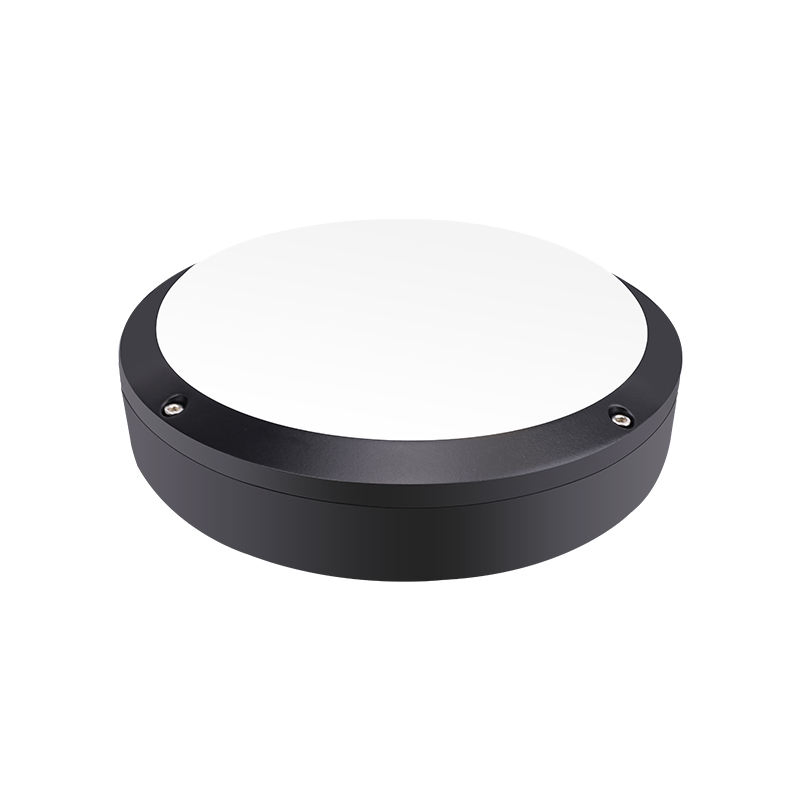

Motion Sensor 18W 20K 24W Industrial 110V 220V Smart PIR Sensor Modern IP65 LED Ceiling Light

1 / 5

Motion Sensor 18W 20K 24W Industrial 110V 220V Smart PIR Sensor Modern IP65 LED Ceiling Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info & Specifications

Model NO. LS-04-CL

Style European

Shape Round

Shade Type Plastic

Usage Room, Study, Restaurant, Aisle, Living Room, Balcony, Toilet, Kitchen, Conference Room

IP Rating IP65

Install Style Surface Mounted

Certification CCC, CE, CQC, C-tick, EMC, ETL, FDA, GS, LVD, REACH, RoHS, SAA

Voltage 220V

Beam Angle 110°

Input Voltage 220V-240V

LEDs Epistar SMD2835

Watt 10W / 15W / 22W

Size Diameter 300mm

CCT 3000K / 4000K / 6000K

Sensor Microwave Sensor

Emergency Kit 3 Hours

Lux 3 Steps

Lumens 100lm/W

IK Grade IK08

Packaging & Delivery

Package Size 33.00cm * 23.00cm * 20.00cm

Package Gross Weight 1.000kg

Transport Package CTN

Production Capacity 100,000 PCS/Month

Product Description

40W Nordic White Body Tri-proof LED IP65 Die Cast Aluminum AC90/220V Cylinder Shape Wall Lamp

Key Features & Technical parameters

Features

Energy efficient LED system
IP65 weatherproof rating with insect resistant seal
IK08 vandal proof rating
Supplied with eyelid trim option
Tri-CCT selectable technology

Mechanical

Adjustability: Fixed
Body Material: Polycarbonate
Diffuser Material: Polycarbonate
Fitting Colour: Black and White
IK Rating: IK08
Installation Type: Wall or Ceiling
IP Rating: IP65

Electrical Parameters

Electrical Rating: Class II
Input Current: 0.07 A
Input Frequency: 50 Hz
Input Voltage: 230Vac
Switch Type: Inline
System Max Wattage: 20W / 40W / 60W
Working Temp Range: -20 to 45 °C

Optical & CCT

CCT Configuration: TRI-CCT
CRI: >80
System Efficiency: 100 lm/W
LED Lifetime: >54,000 hours
Warm White (3000K): 1400 lm
Cool White (4000K): 1440 lm
Daylight (6500K): 1500 lm

Product Detail Galleries

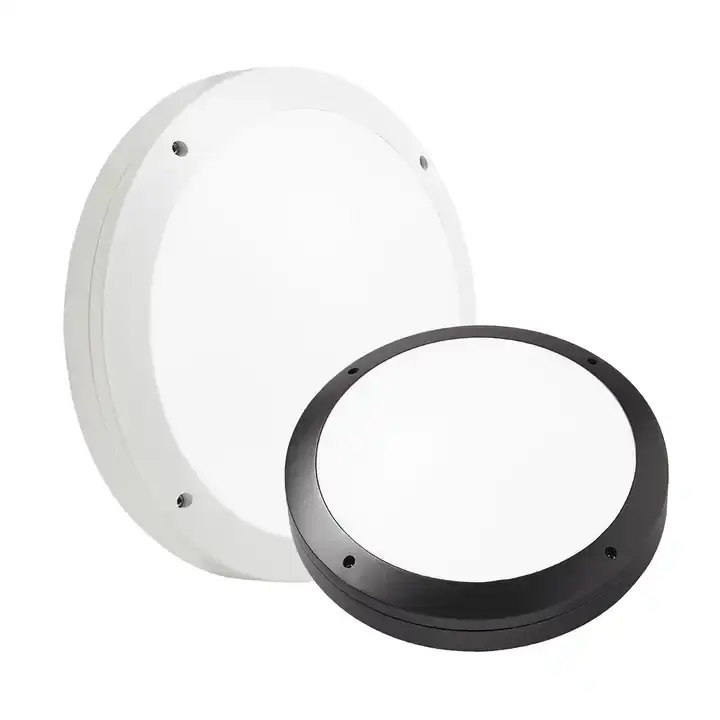

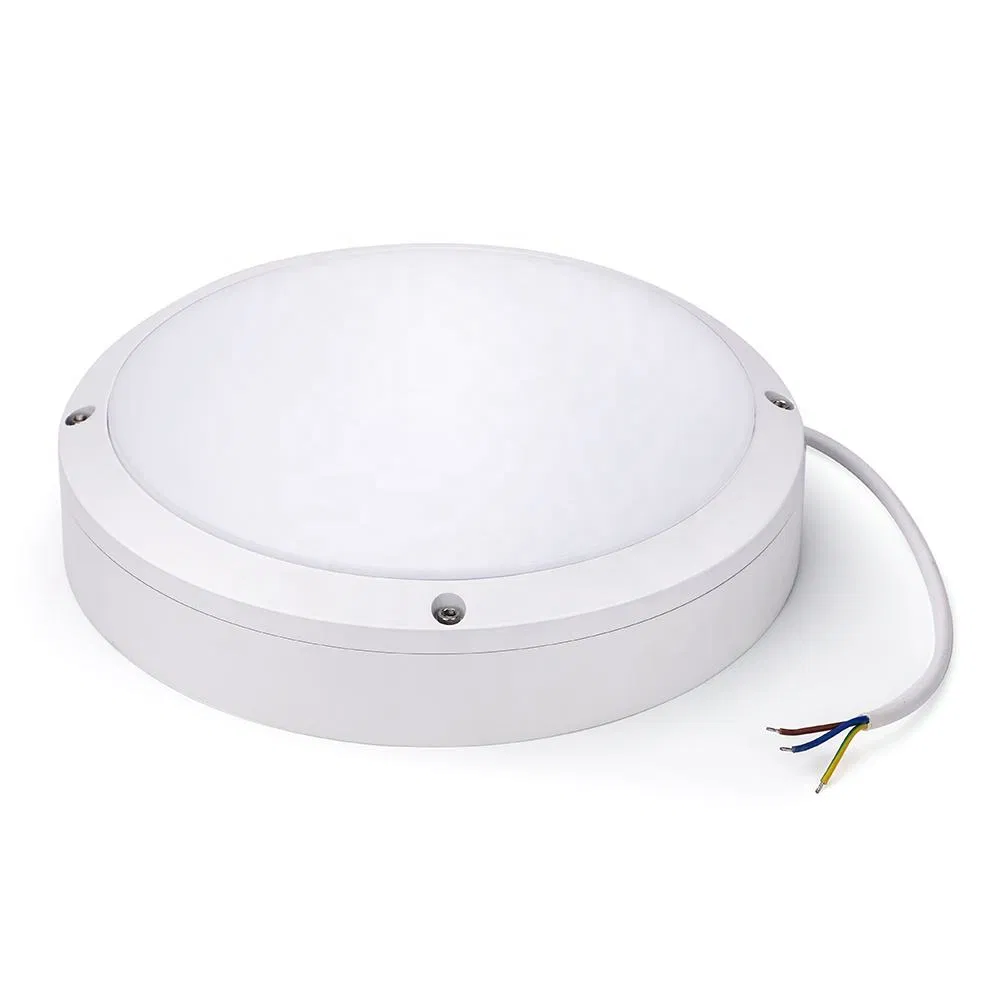

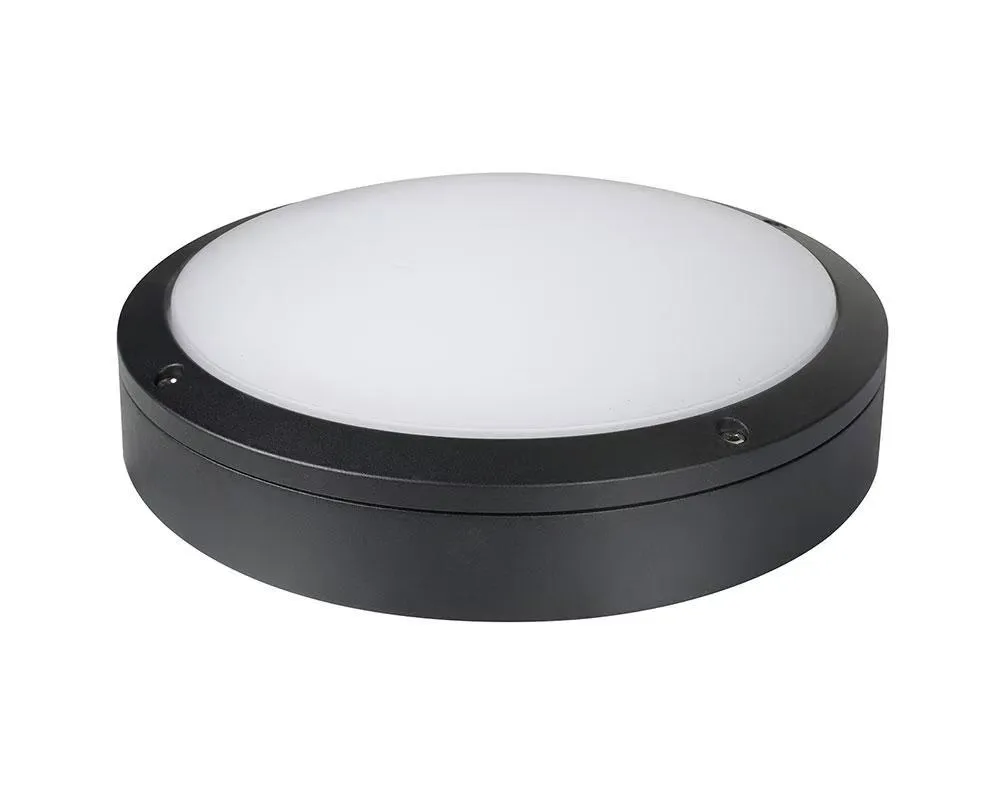

1) White and Black Housing Finishes

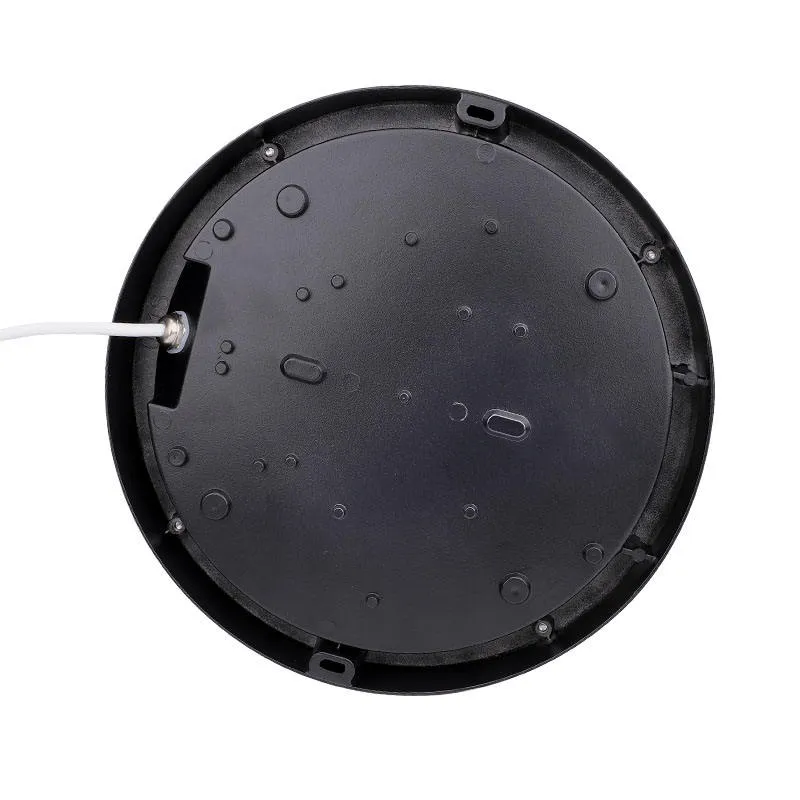

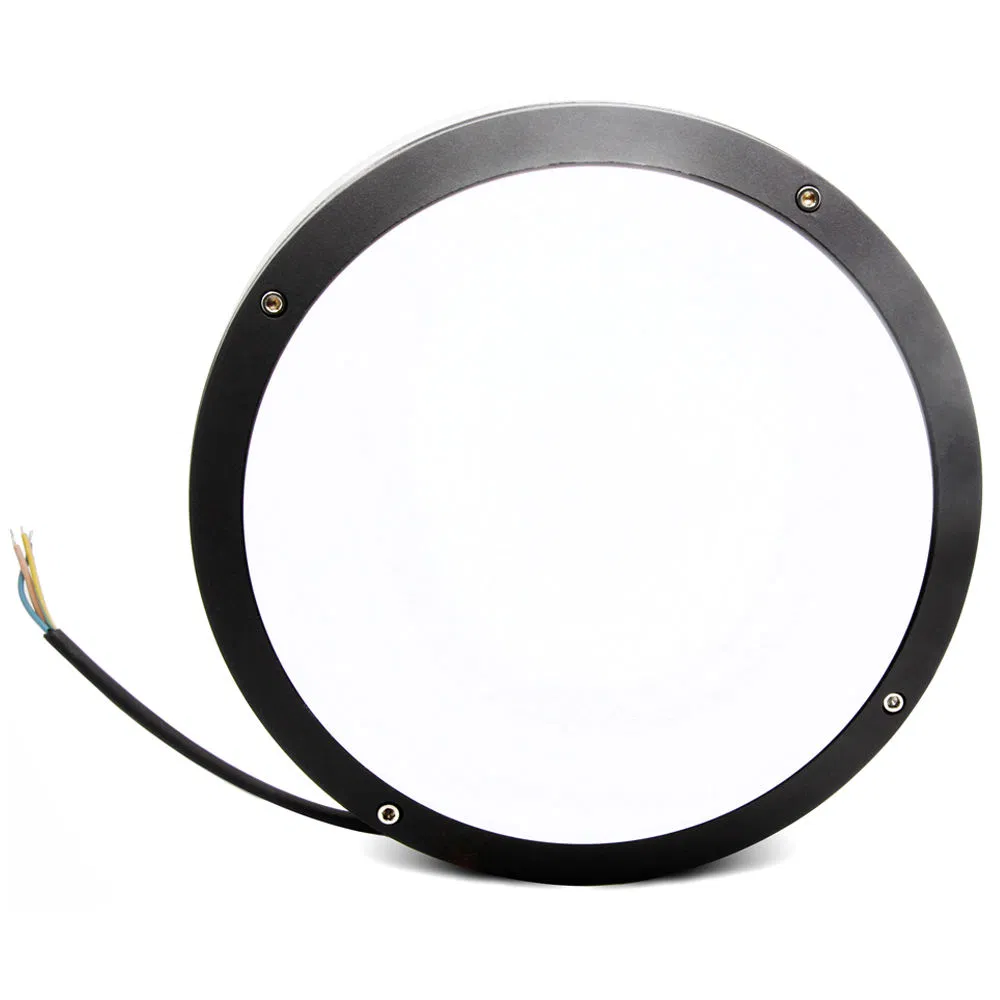

2) Front and Back View

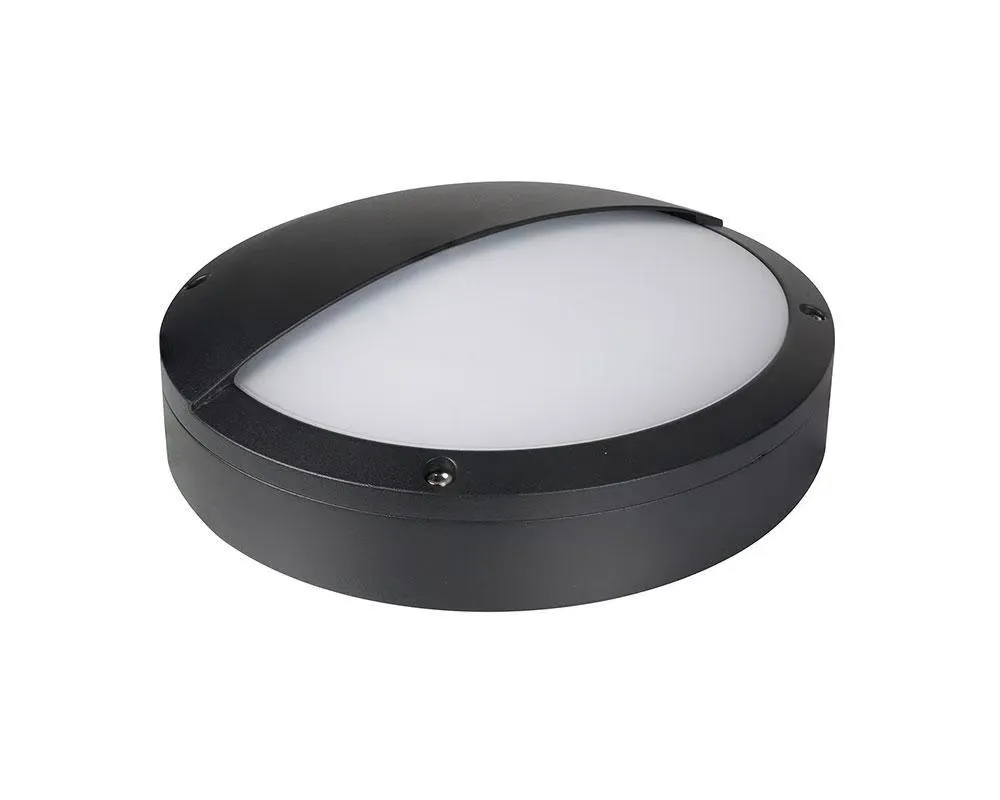

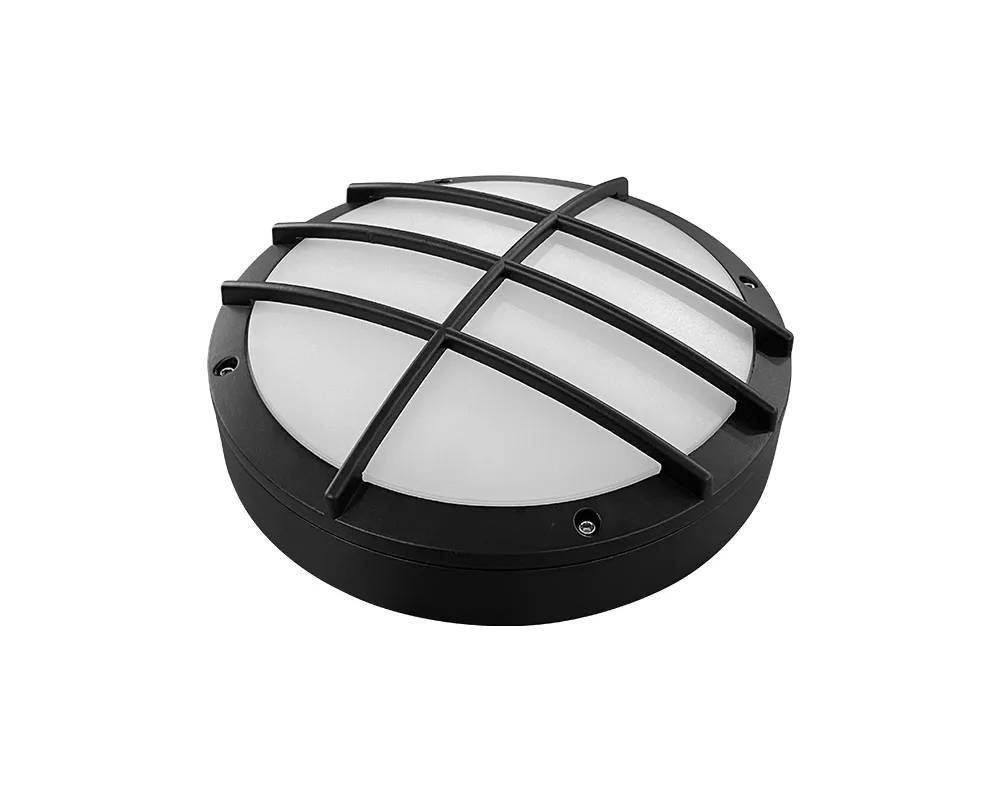

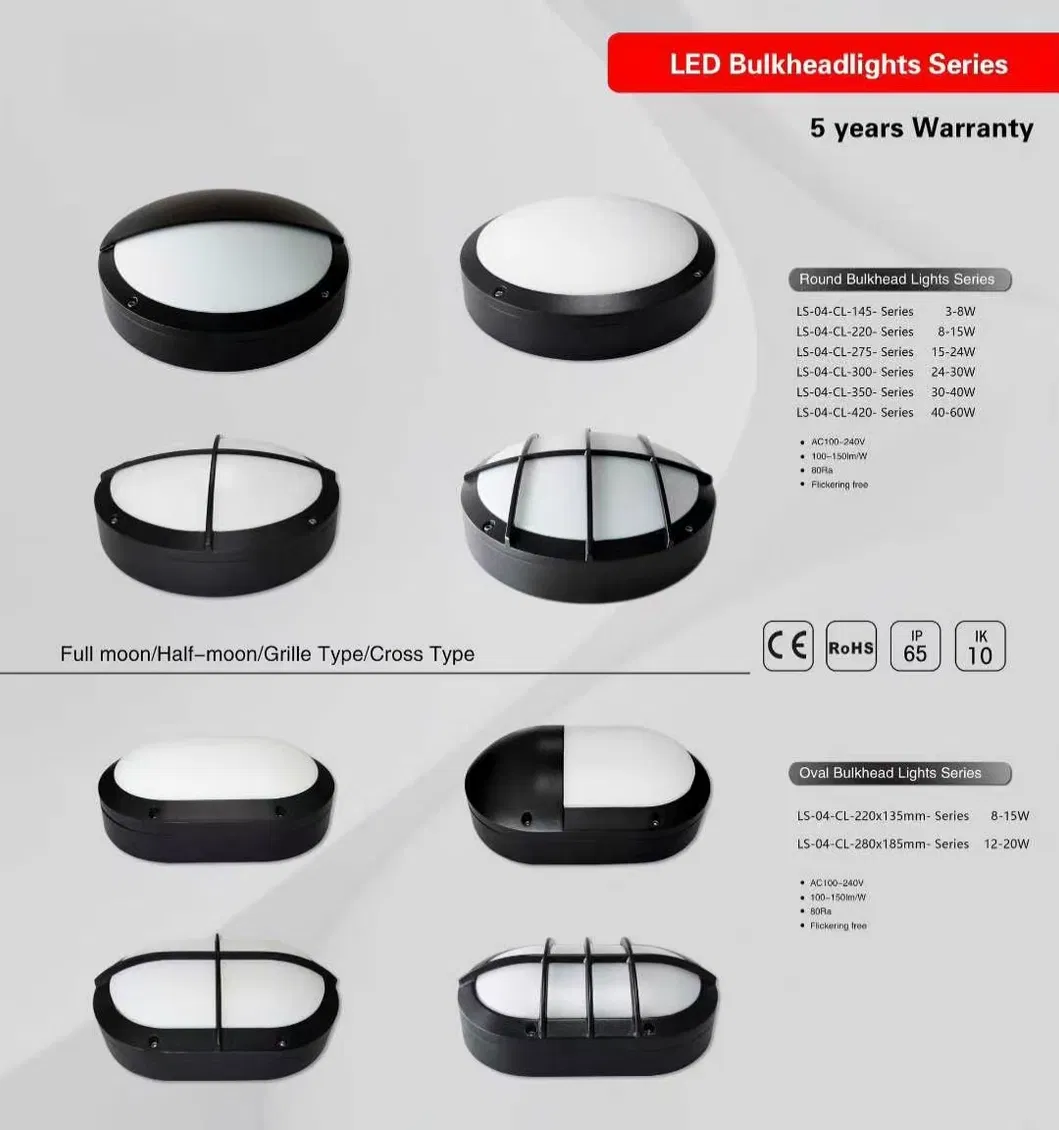

3) Variations & Alternates

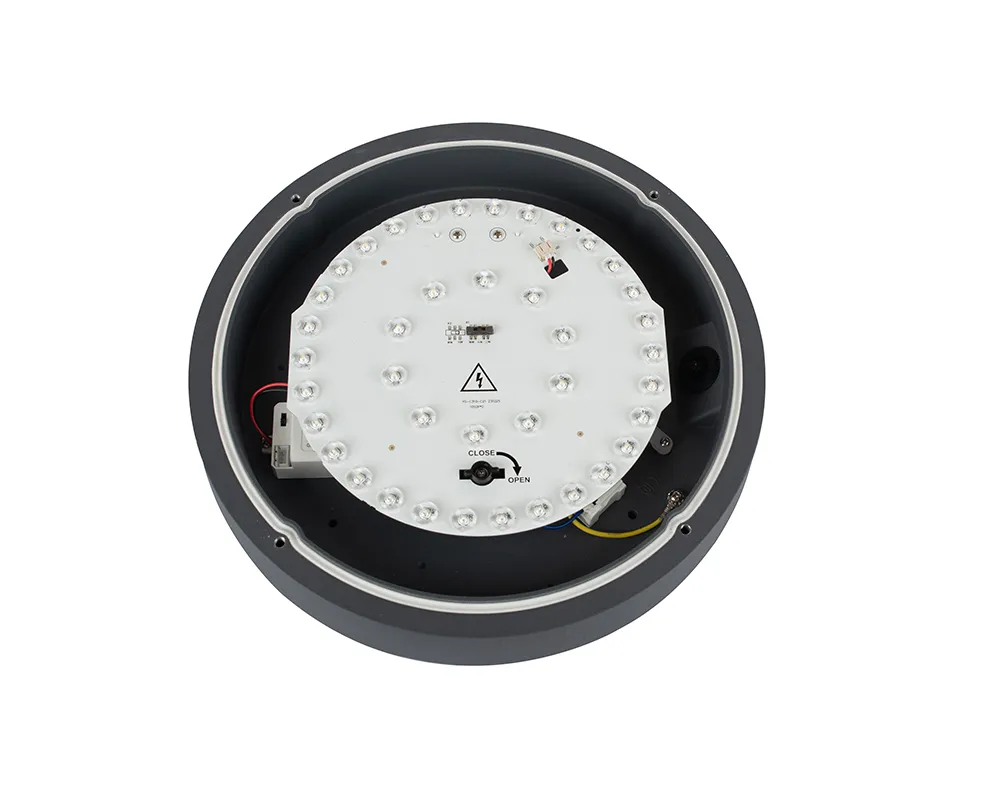

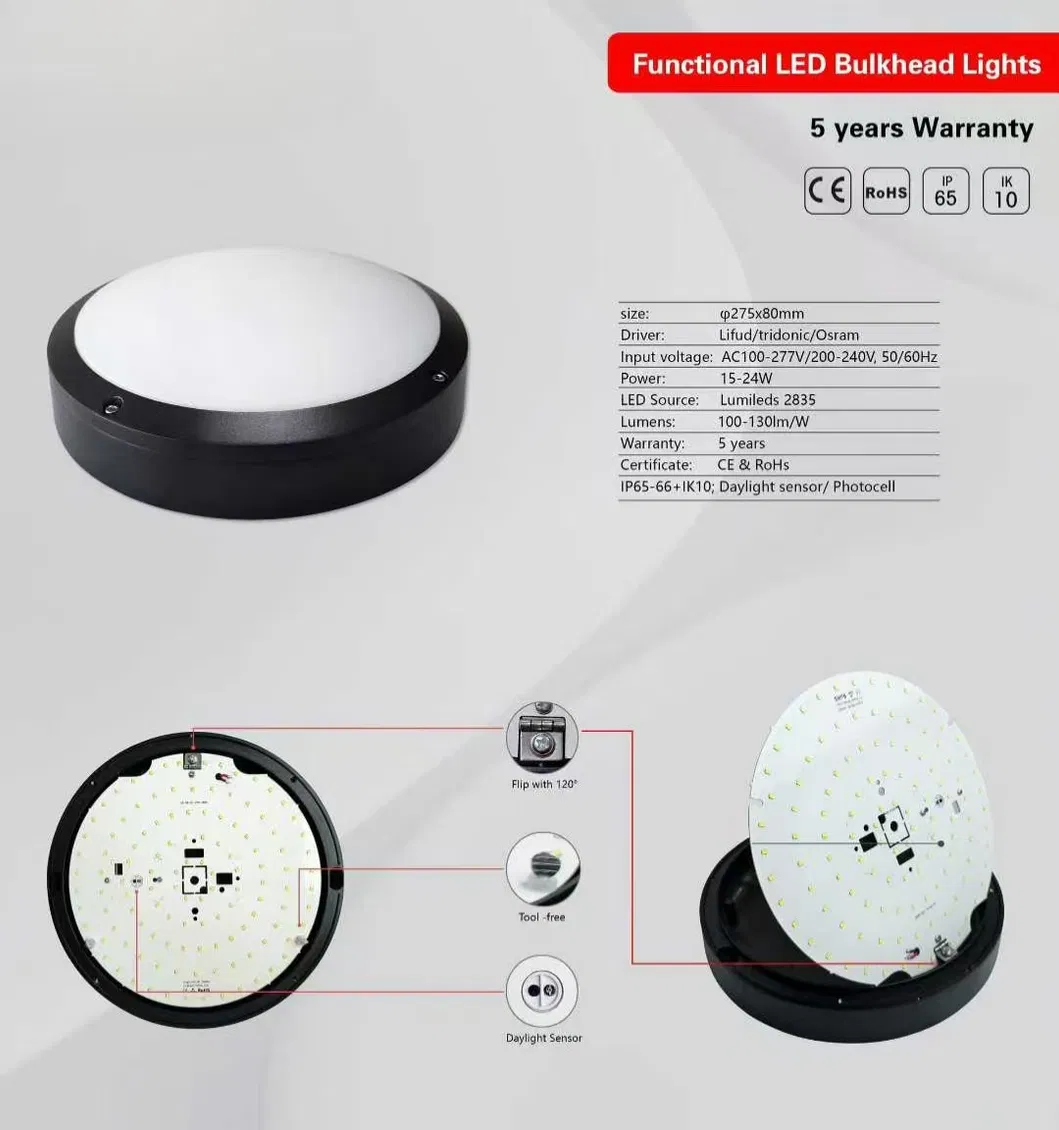

4) Internal Layout (Full Overview)

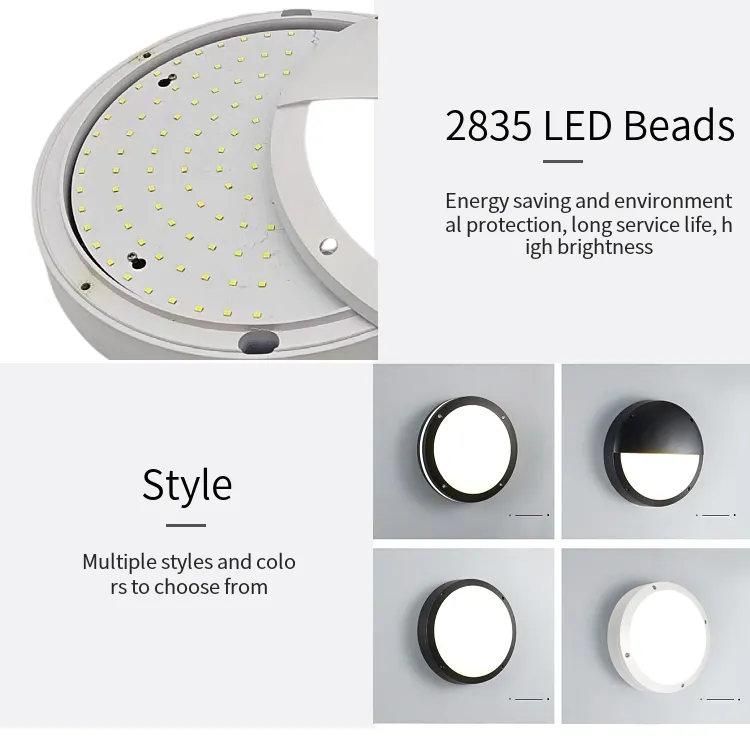

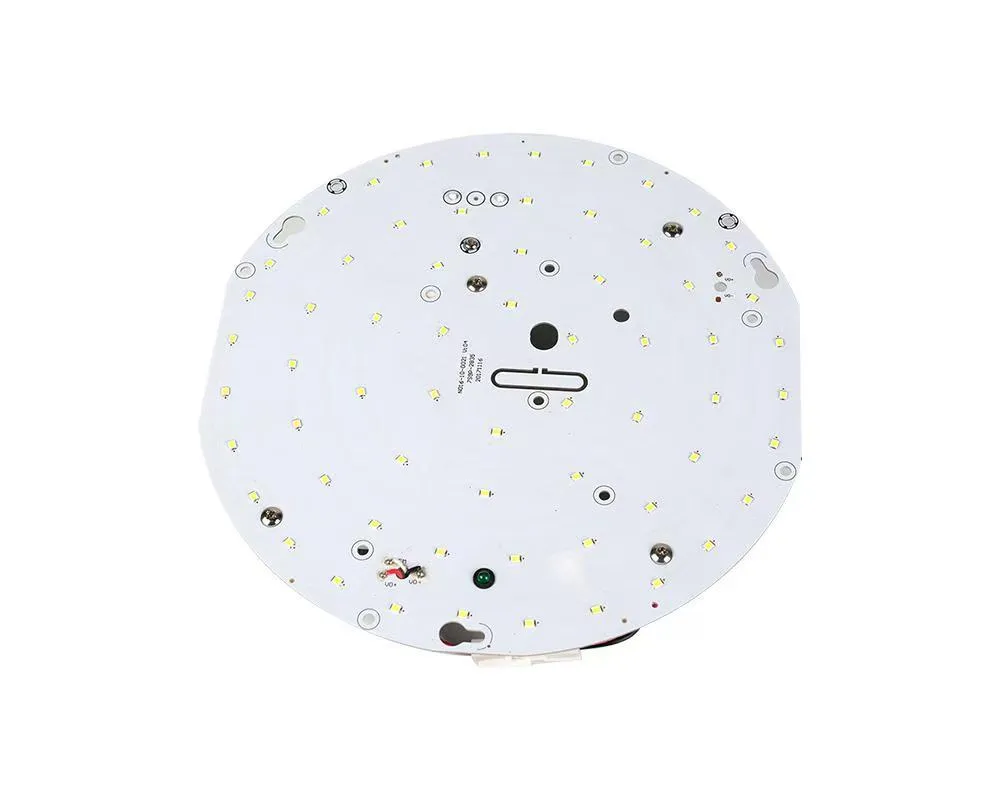

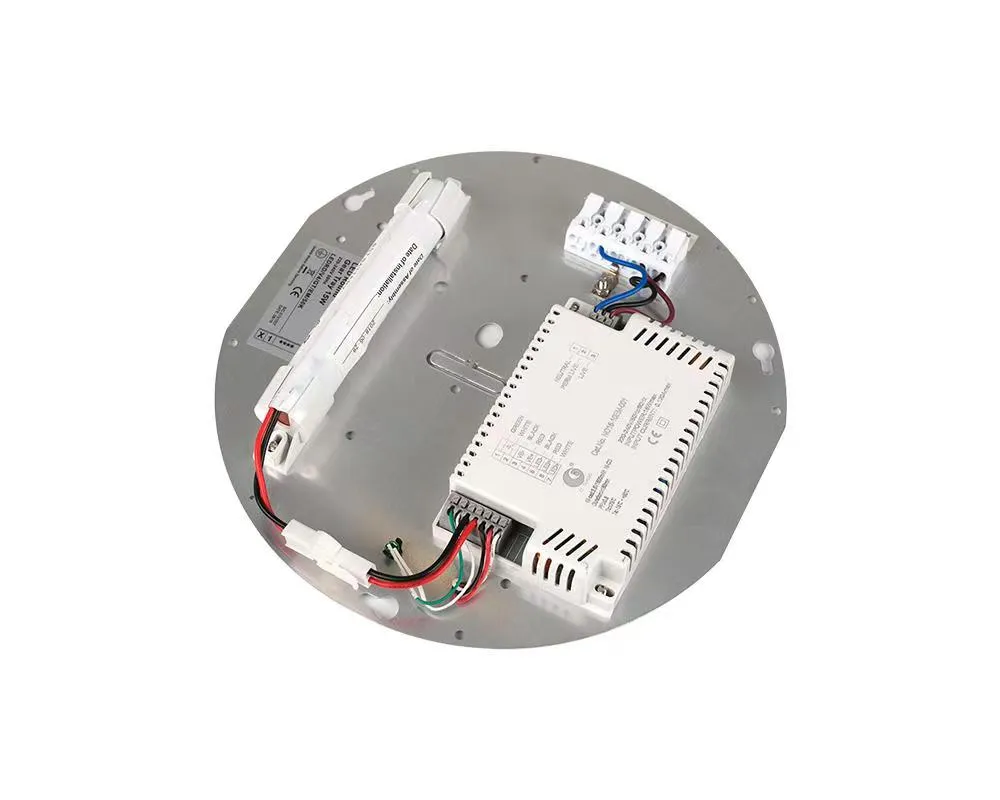

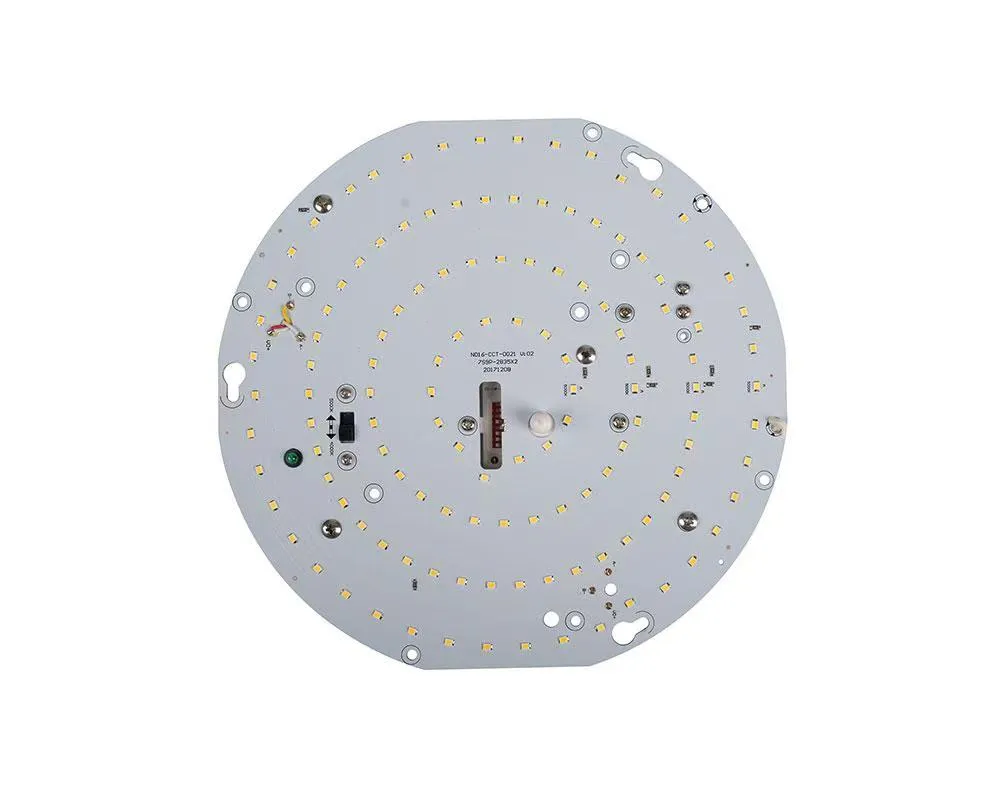

5) Driver and Aluminum LED Board Detail

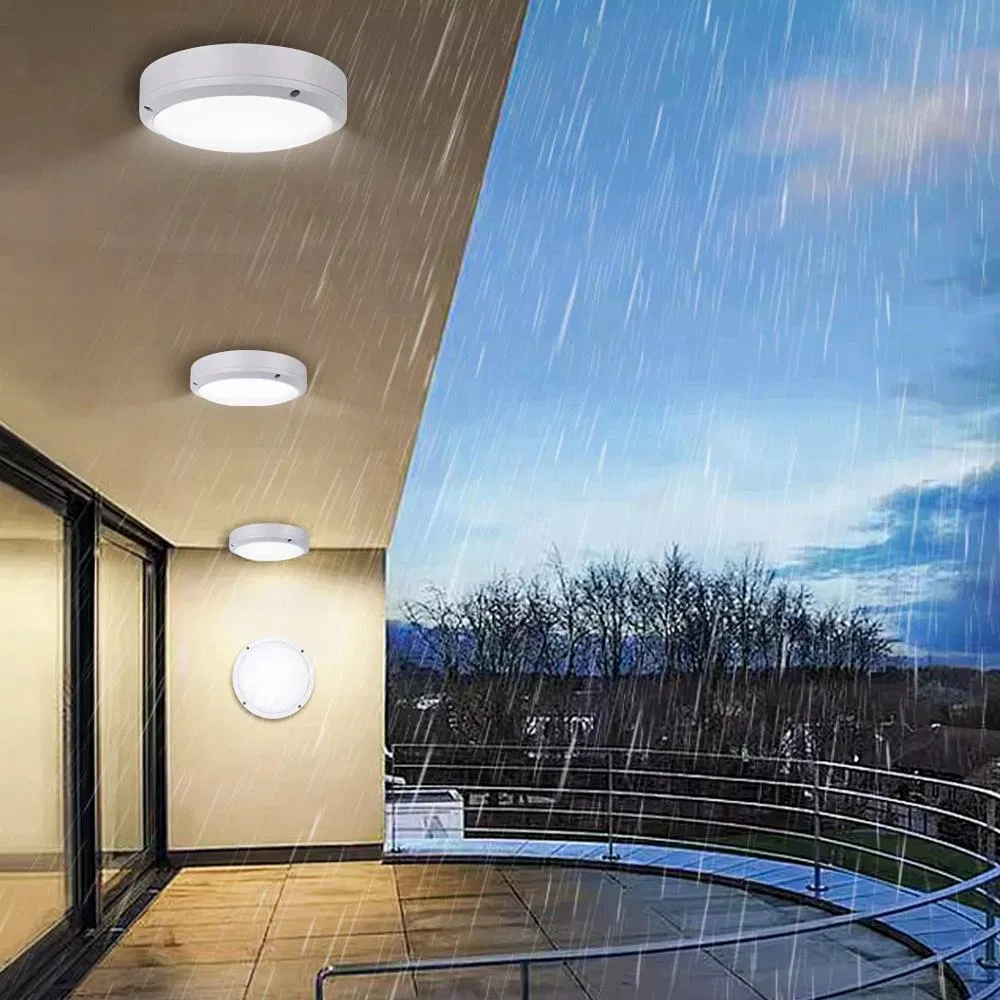

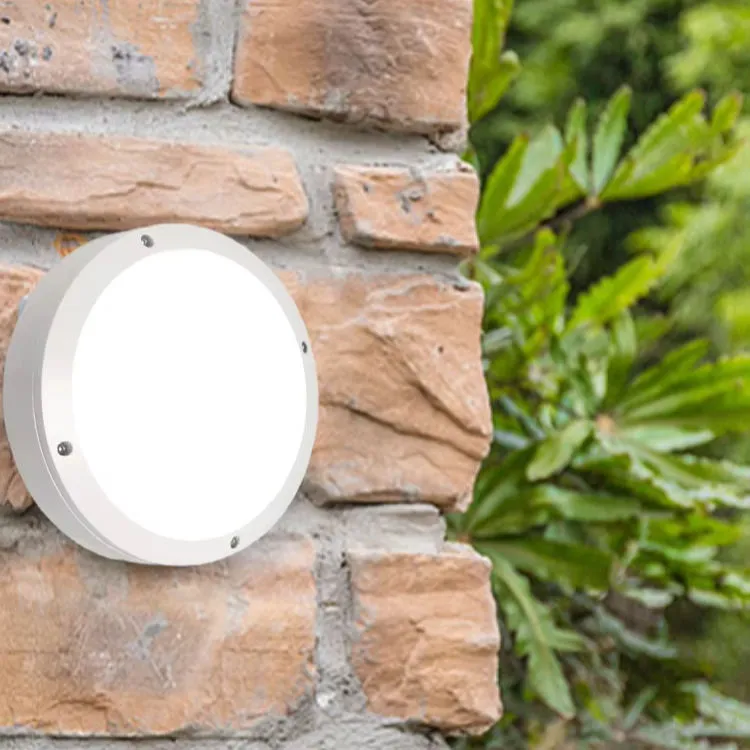

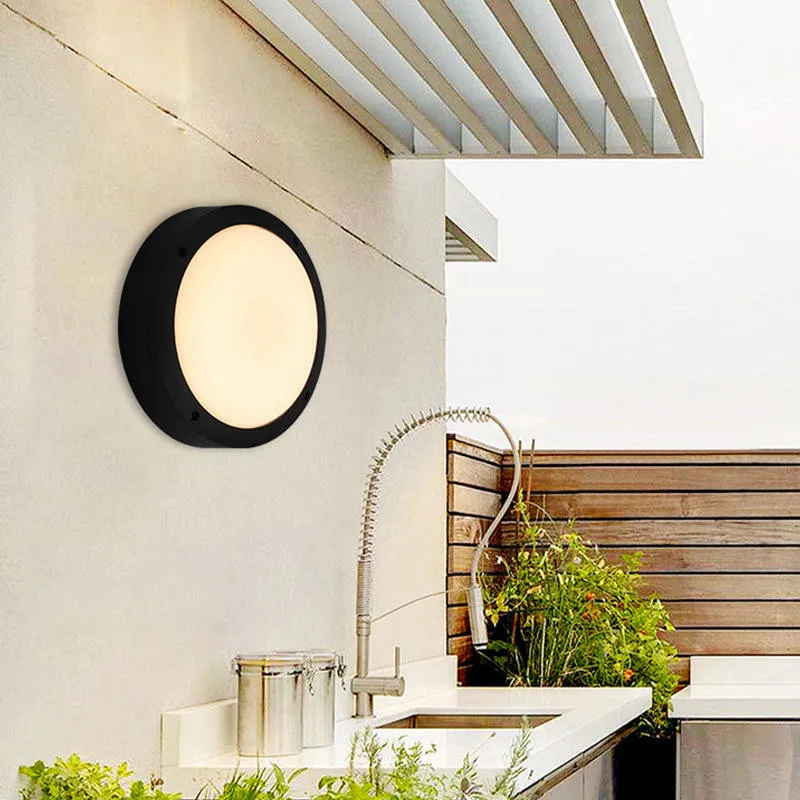

6) Application Environments & Installation Examples

Office / Meeting Room Interior Application

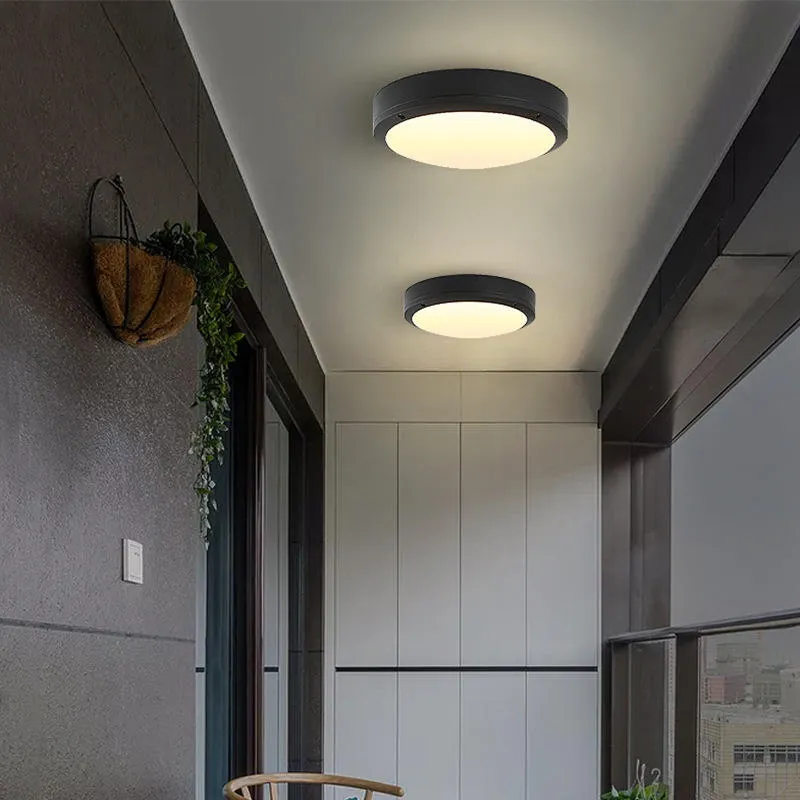

Bathroom / Moist Environment Installation

Detailed Specifications

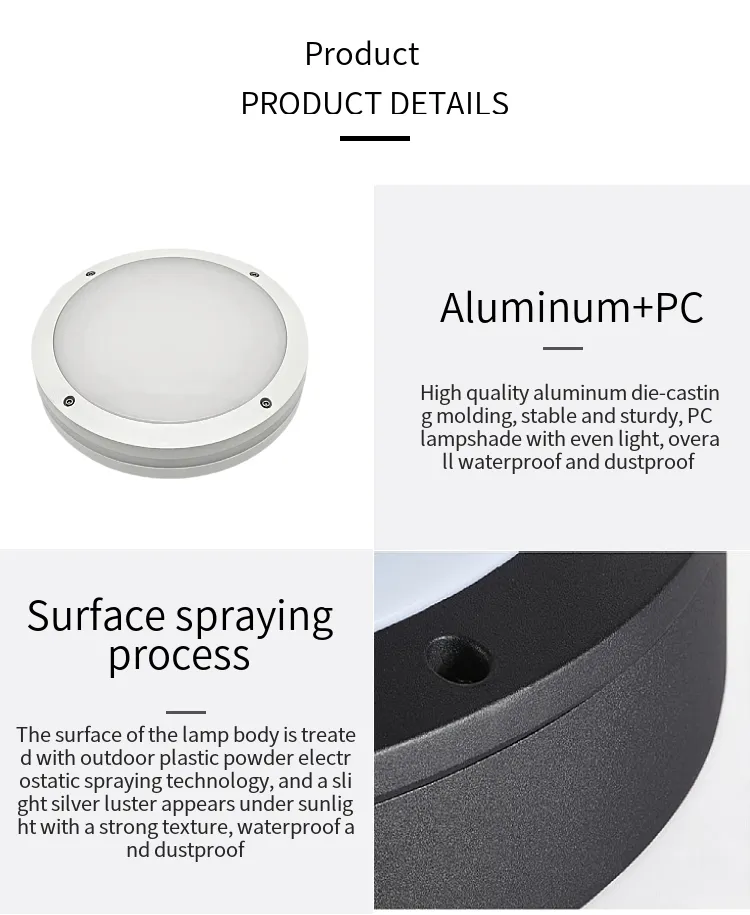

Lighting body: Robust PC or ABS material body featuring high impact resistance and a non-deformable structure suitable for high vibration environments.
Lighting cover: Premium quality opal PC diffuser for soft, uniform lighting distribution.
LED board: Heavy-duty white aluminum base with 0.45mm thickness for efficient thermal dissipation.
Applications: Designed for indoor & outdoor areas requiring high IP protection. Perfect for food processing facilities, heavy mining industries, oil & petrochemical offshore sites, coastal regions, swimming pool areas, dusty warehouses, damp basements, parking lots, under-canopy transit bays, tunnels, and railway terminals.
Operating voltage: Input 220V ~ 240V, 50Hz ~ 60Hz. Output 12V-24V, 50Hz ~ 60Hz.
Type of lamps: Epistar SMD2835 LED chips.
Wattage options: 12W, 20W, and 24W formats.
Operating temperature: Tested to operate reliably between -20°C ~ 45°C.
IP rating: IP65 certified with high-performance water-tight gaskets for waterproof, explosion-proof, and dustproof protection.
Electrical components: High-efficiency constant current driver paired with high-quality SMD2835 LEDs.
Additional Options: Integration supported for 3CCT select switches, microwave sensors, and emergency backup battery packs (3-hour).
Certifications: Full compliance with CE, CB, RoHS, and SAA standards.

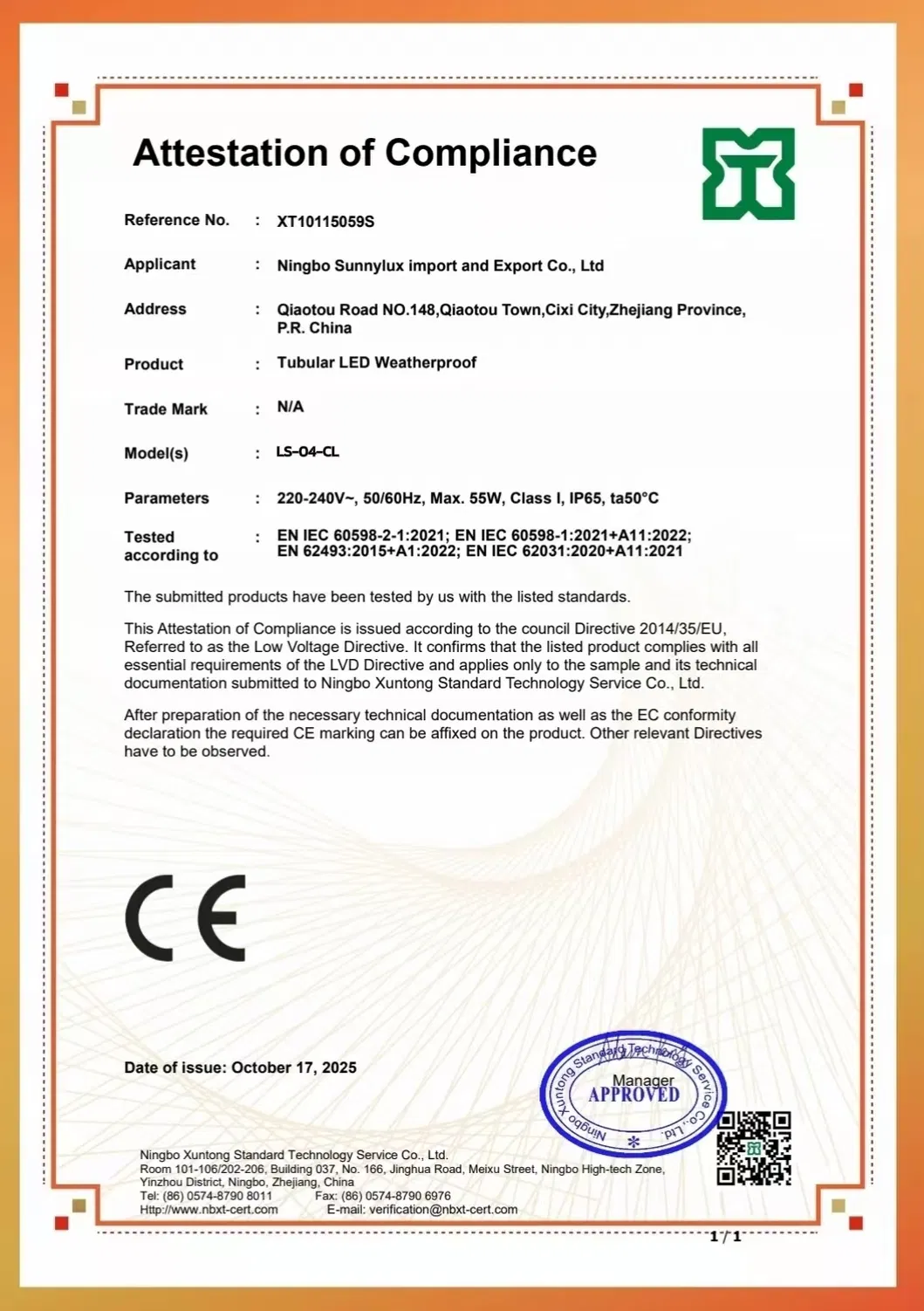

Certifications & Industry Compliance

Product Models & Sizing Matrix

Item No.	Power	PF	IP Grade	Sensor Type	IK Grade	CCT Options	CRI	Warranty	Dimensions
LS-04-CL-1	15-24W	>0.95	IP65	Microwave Sensor	IK08	3000K/4000K/6500K	>80	3 Years	Φ275*80mm
LS-04-CL-2	8-15W	>0.95	IP65	Microwave Sensor	IK08	3000K/4000K/6500K	>80	3 Years	220*135mm
LS-04-CL-3	12-20W	>0.95	IP65	Microwave Sensor	IK08	3000K/4000K/6500K	>80	3 Years	280*135mm

Our Service Terms

All inquiries will be replied to by professional technicians within 24 hours.
Highly trained staff are always available to assist with custom OEM/ODM setups.
Fast lead times: 3-4 working days for samples; 7-10 working days for volume orders.

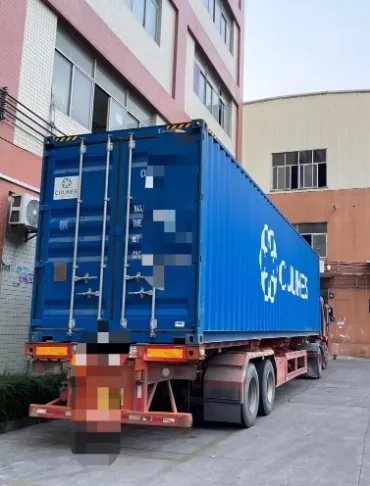

Packaging Detail Layouts

Frequently Asked Questions (FAQ)

Where are your production facilities located?

Our manufacturing operations are based in Zhejiang, China. We have been producing high-quality LED light fittings since 2014 and serve markets across Western Europe, North America, Northern Europe, Oceania, and South America.

How is the quality of the LED lights guaranteed?

Quality is managed through strict protocols: we always compile a pre-production sample before launching mass assembly, and conduct a final 100% inspection before shipment to ensure stability.

What types of products can I purchase from you?

We specialize in a wide range of industrial and consumer lighting, including LED Tri-Proof Lights, Ceiling Lights, Emergency Lights, Work Lights, Bulkheads, Warning Lights, and related electrical appliances.

What are your research, design, and manufacturing advantages?

We offer over 100 types of self-developed lighting designs and customized molds. To keep pace with international trends, we launch 2 to 5 new products monthly and hold extensive international certifications like CE, RoHS, SAA, and GS.

What delivery terms and payment structures are accepted?

We accept delivery under FOB, CFR, CIF, EXW, FAS, and FCA. Payments can be processed in USD, EUR, and CNY currencies through T/T, L/C, PayPal, Western Union, and Escrow.

Can these bulkhead lights be used in damp or dusty areas?

Yes, these units feature an IP65 ingress rating combined with IK08 impact resistance. The high-performance silicone gaskets ensure complete protection against moisture, dust, and insects, making them ideal for tunnels, parking structures, and coastal environments.
