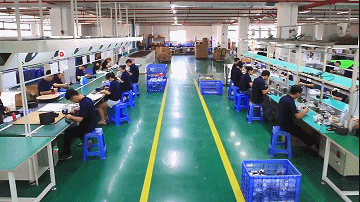

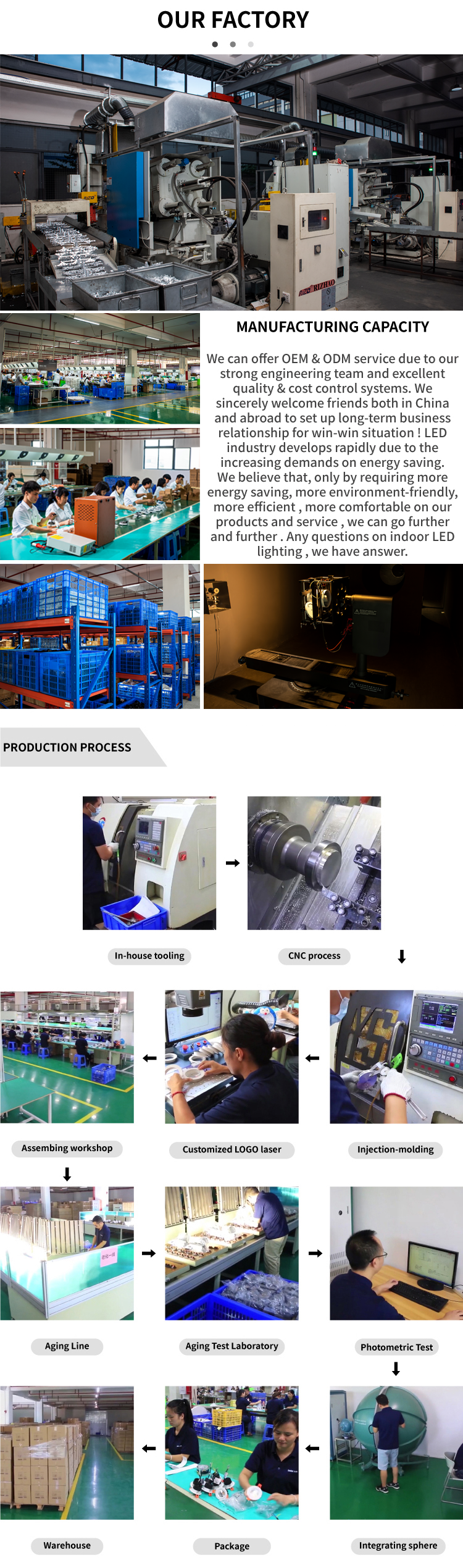

15+ years OEM & ODM Experience, 100+ skilled technicians, always deliver your products to you on time.
The lights display in our store are regular products. If you have other special needs, we have 5 professional lighting engineering designers customized for you.

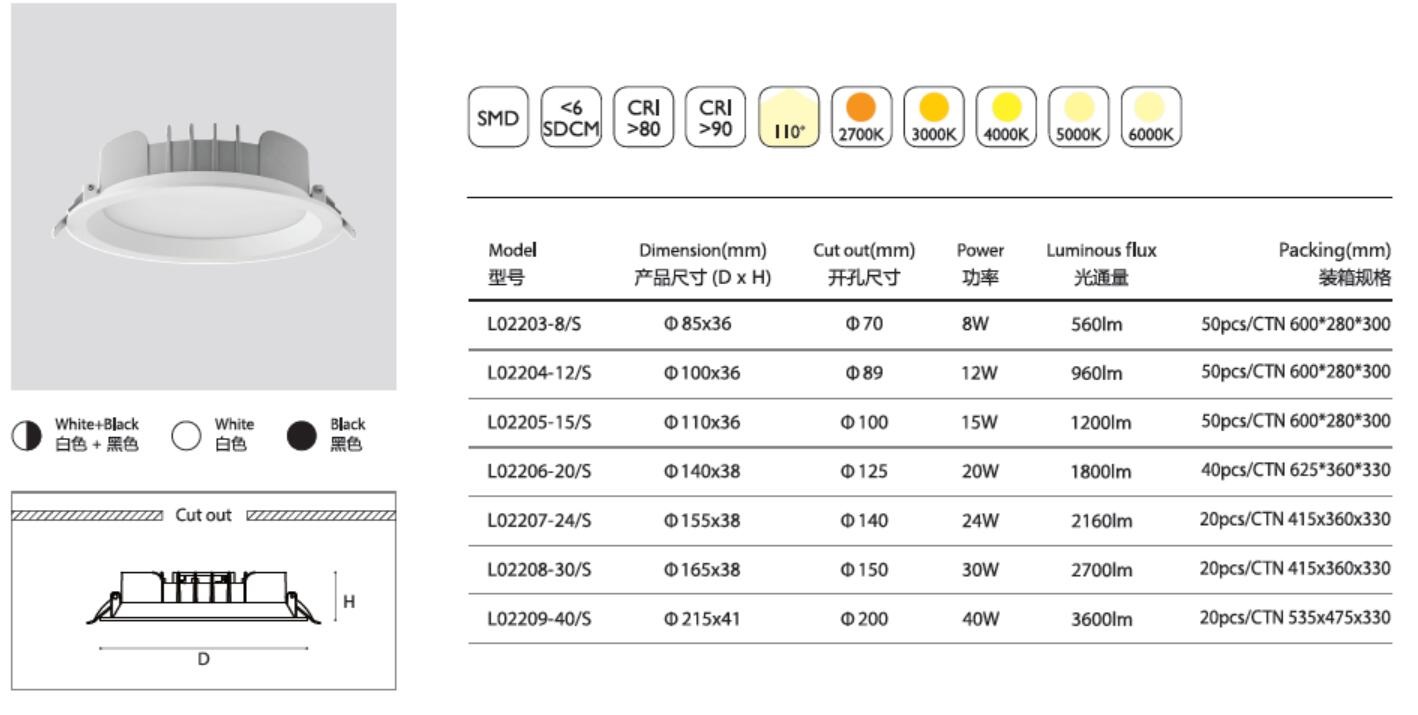

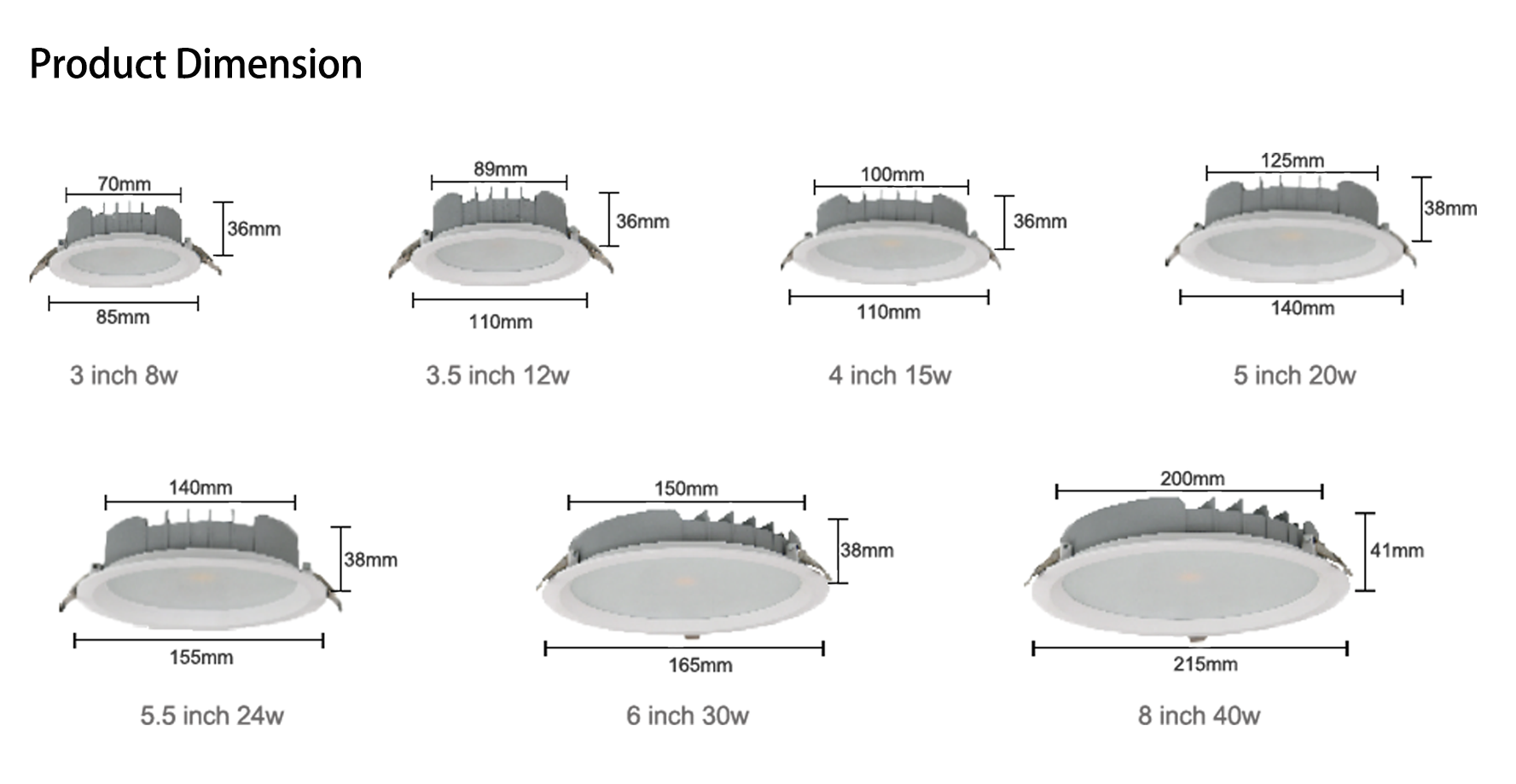

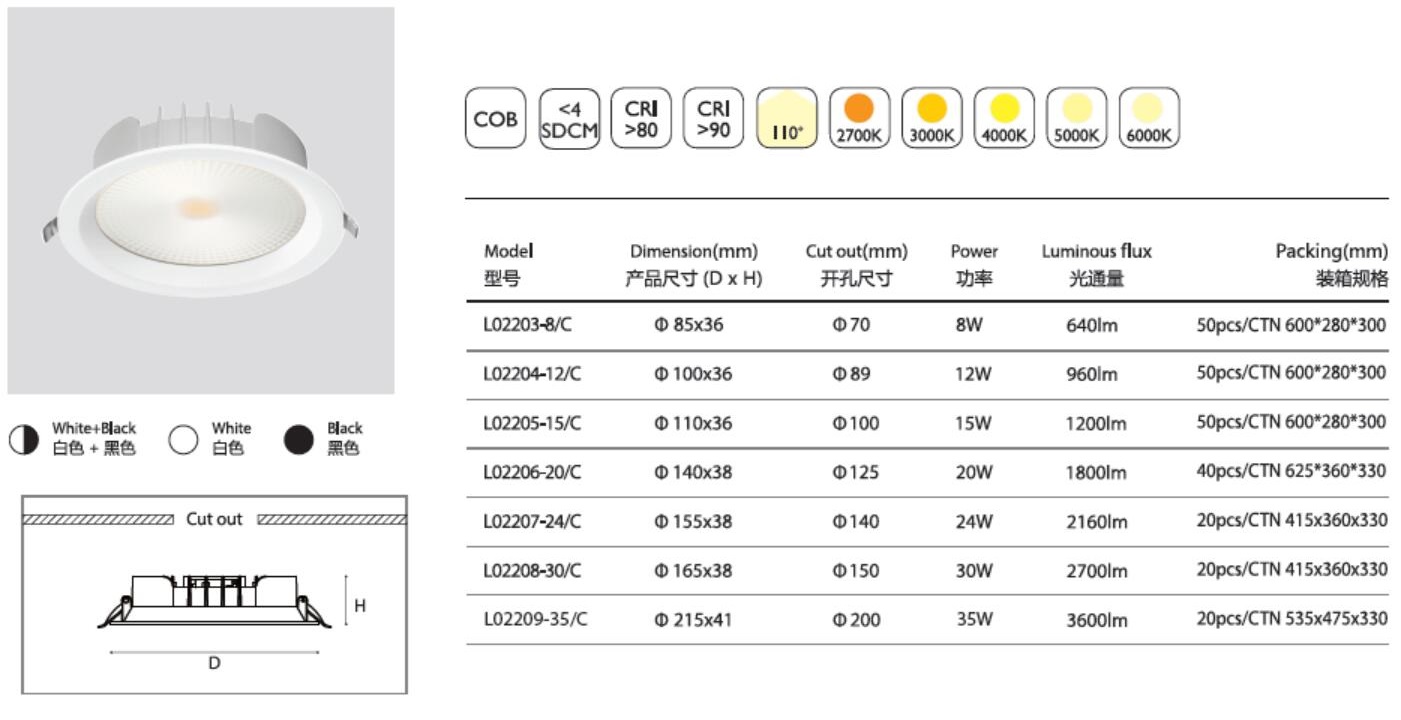

| Model | Dimension(mm) | Cut out(mm) | Power | Luminous(lm) | Packing(mm) |
|---|---|---|---|---|---|
| L02203-8 | 3 inch/85x36 | 75 | 8W | 560/640 | 50pcs/CTN 600×280×300 |
| L02204-12 | 3.5 inch/100x36 | 89 | 12W | 960 | 50pcs/CTN 600×280×300 |
| L02205-15 | 4 inch/110x36 | 100 | 15W | 1200 | 50pcs/CTN 600×280×300 |
| L02206-20 | 5 inch/140x38 | 125 | 20W | 1800 | 40pcs/CTN 625×360×330 |
| L02207-24 | 5.5 inch/155x38 | 140 | 24W | 2160 | 20pcs/CTN 415×360×330 |
| L02208-30 | 6 inch/165x38 | 150 | 30W | 2700 | 20pcs/CTN 415×360×330 |
| L02209-40 | 8 inch/215x41 | 200 | 40W | 3600 | 20pcs/CTN 535×475×330 |
| Input Voltage | AC85-270V | ||||
| Light Source | SMD/COB | ||||

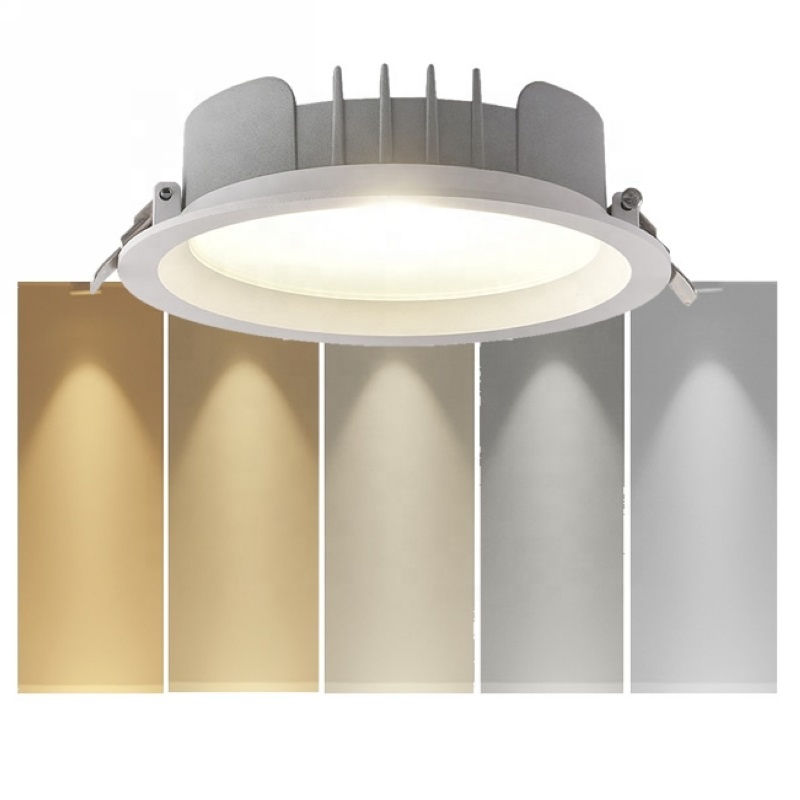

| CCT | 2700K/3000K/4000K/5000K/6500K | ||||

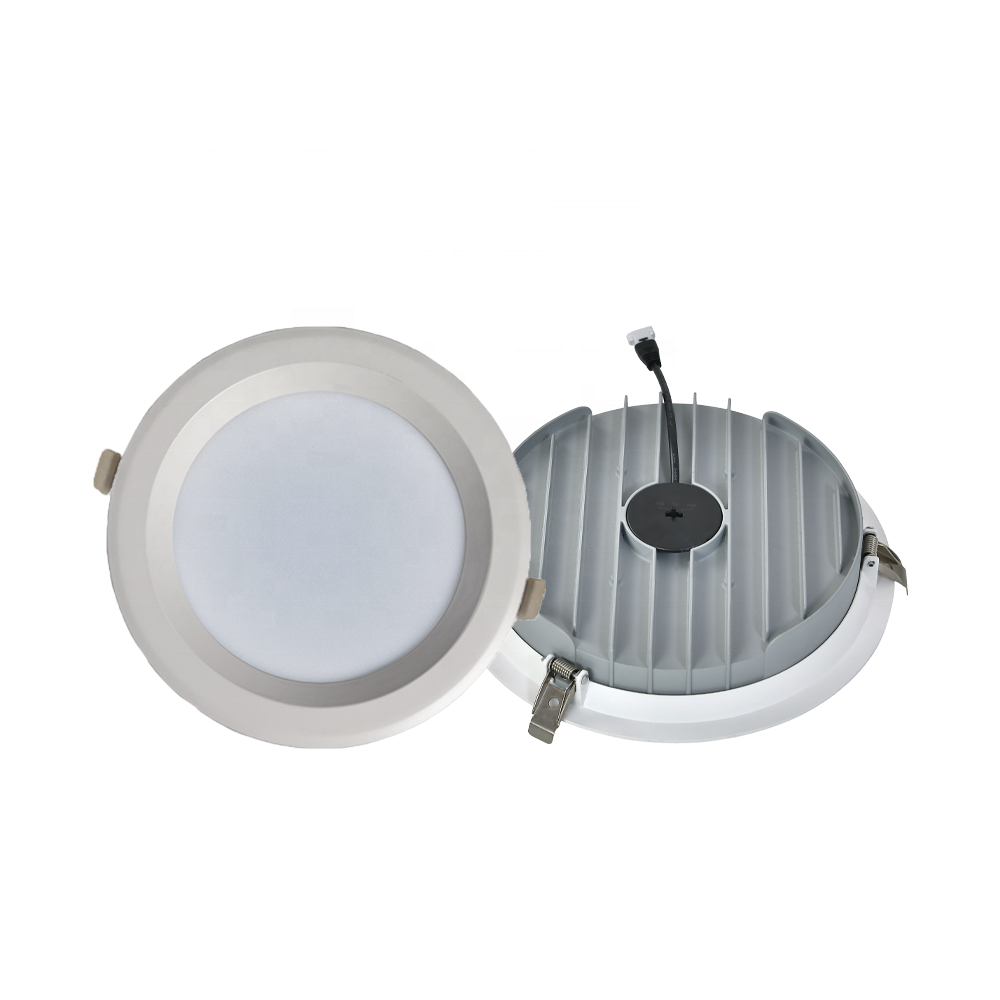

| Material | Die-cast aluminum | ||||
| Driver Options | Non Flicker/Dali Dimmable/Traic Dimmable/0-10V Dimmable/Standard | ||||

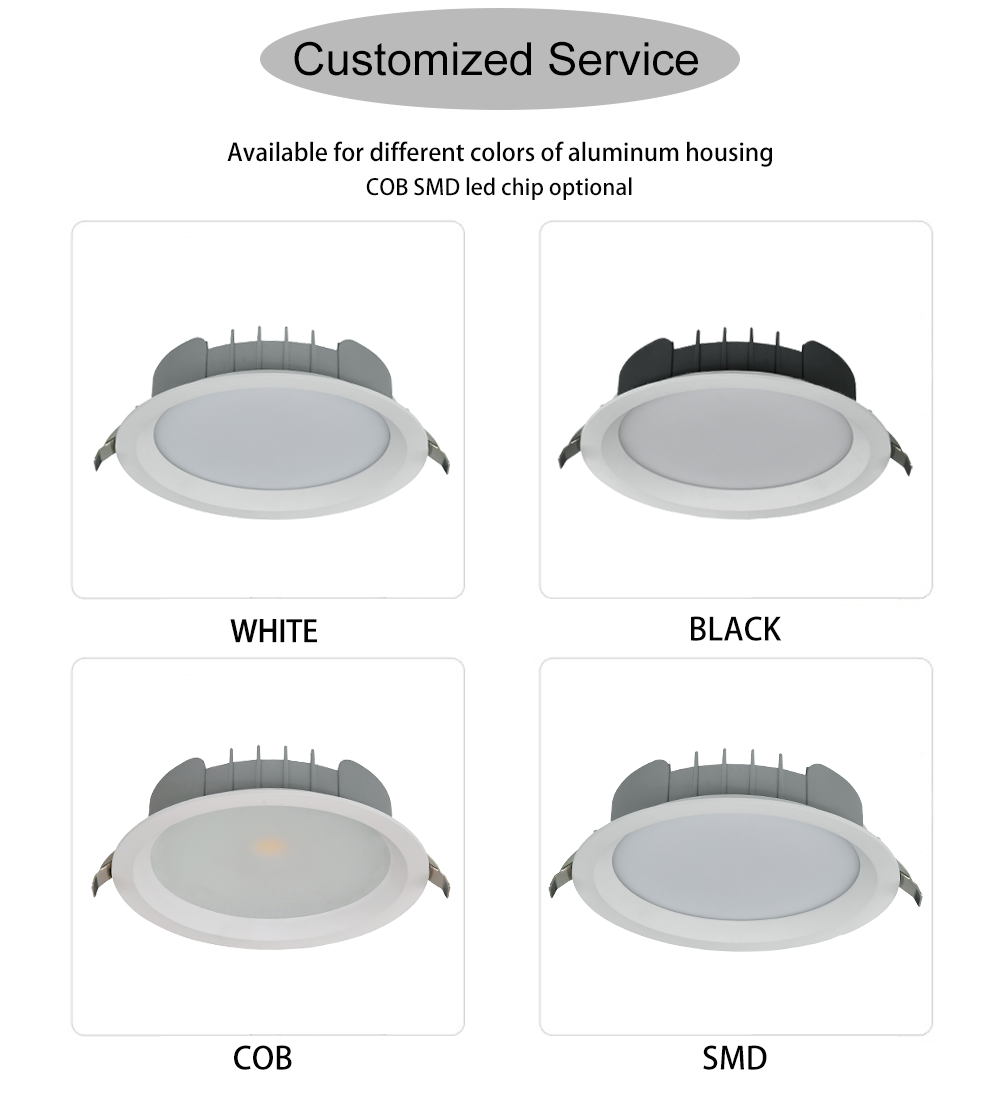

| Finishing color | Black/White | ||||
| CRI | Ra>80/Ra>90 | ||||

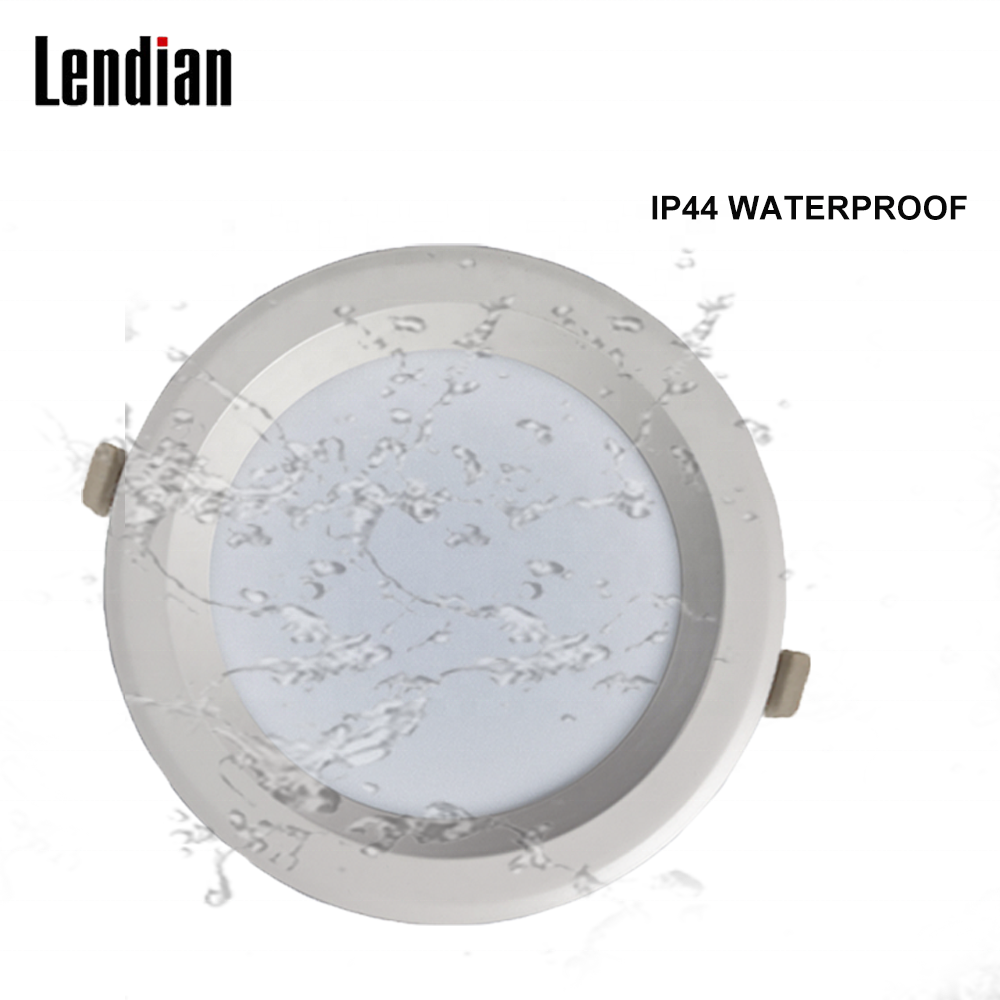

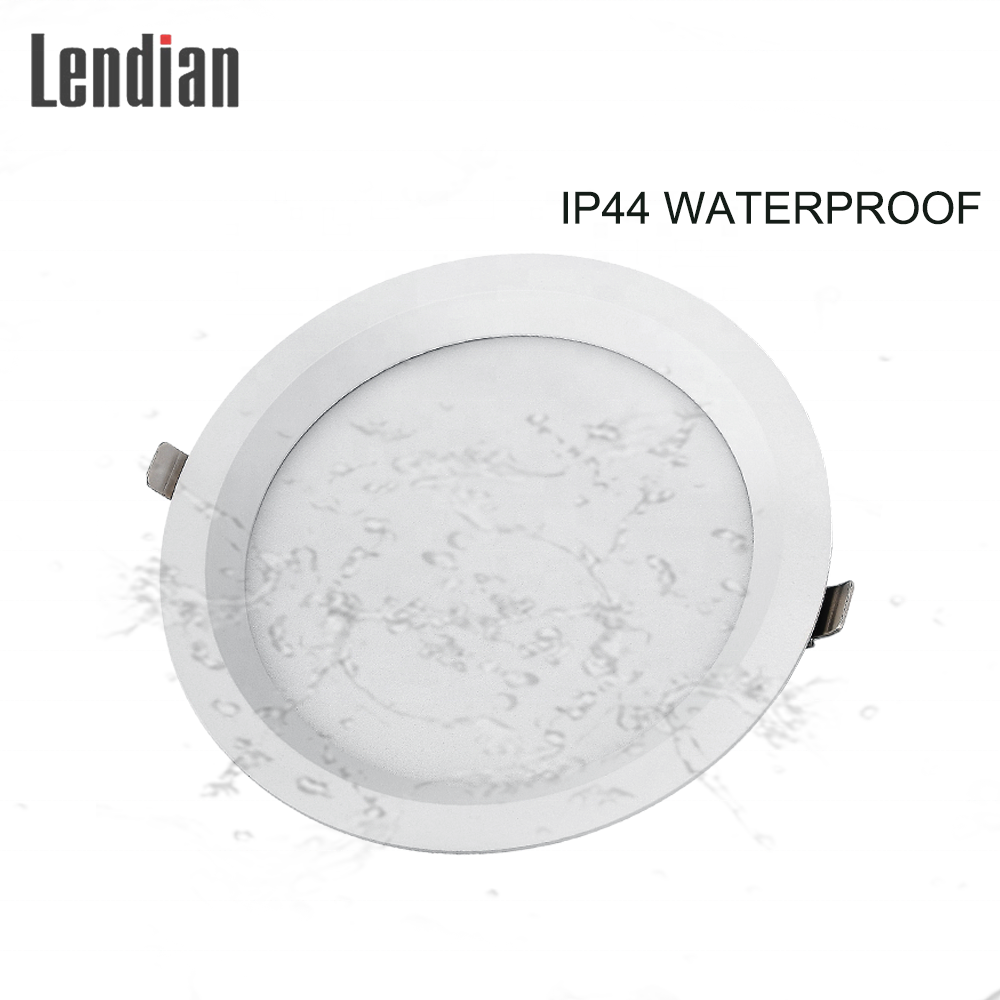

| IP Rate | IP20/IP44 | ||||
| Beam Angles | 110° | ||||
| Certificates | CE/CCC/SAA/TUV/RoHS/SASO | ||||
| Warranty | 3/5 years | ||||
| Product Feature |

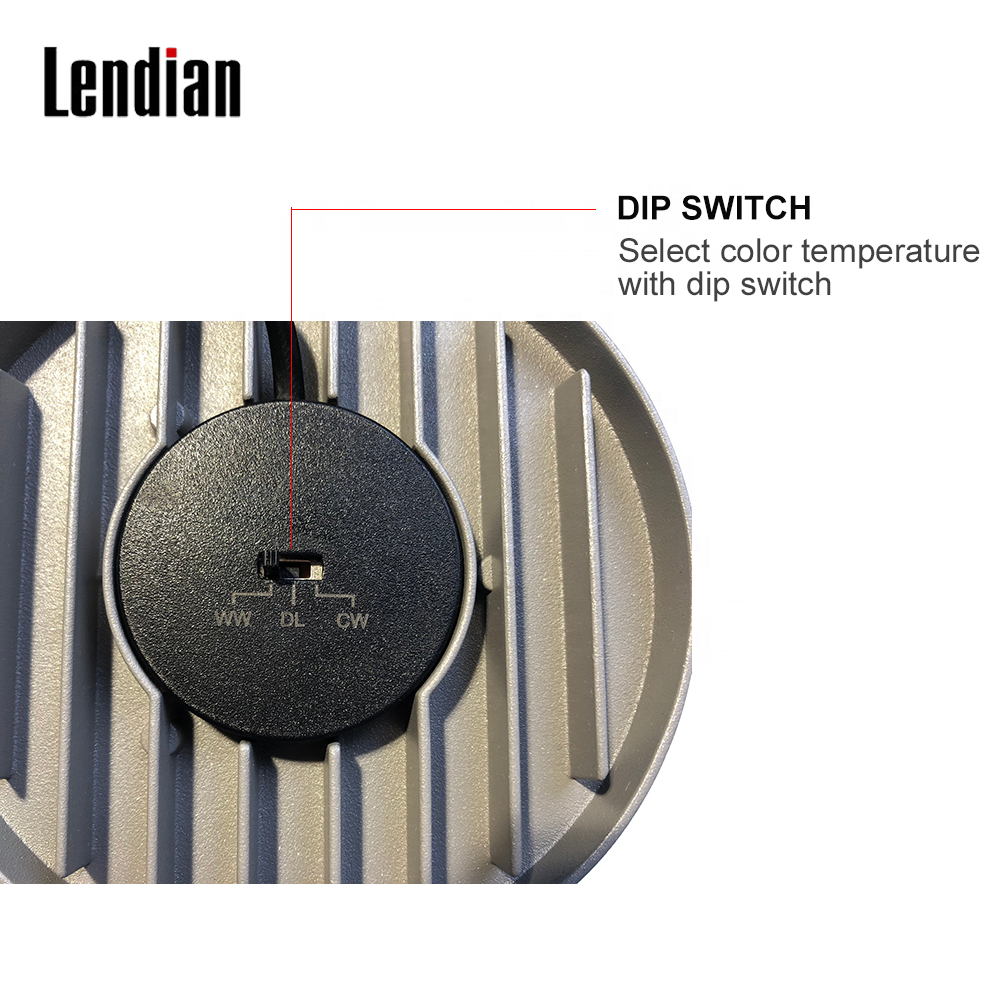

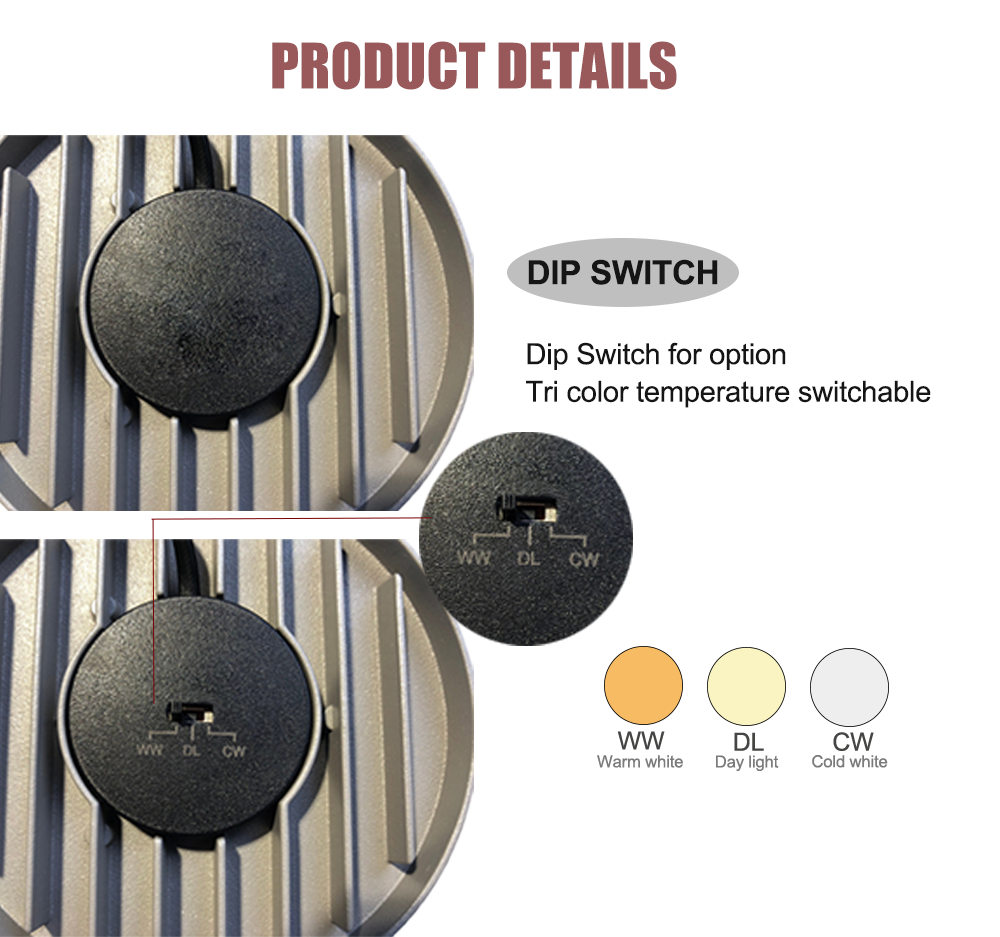

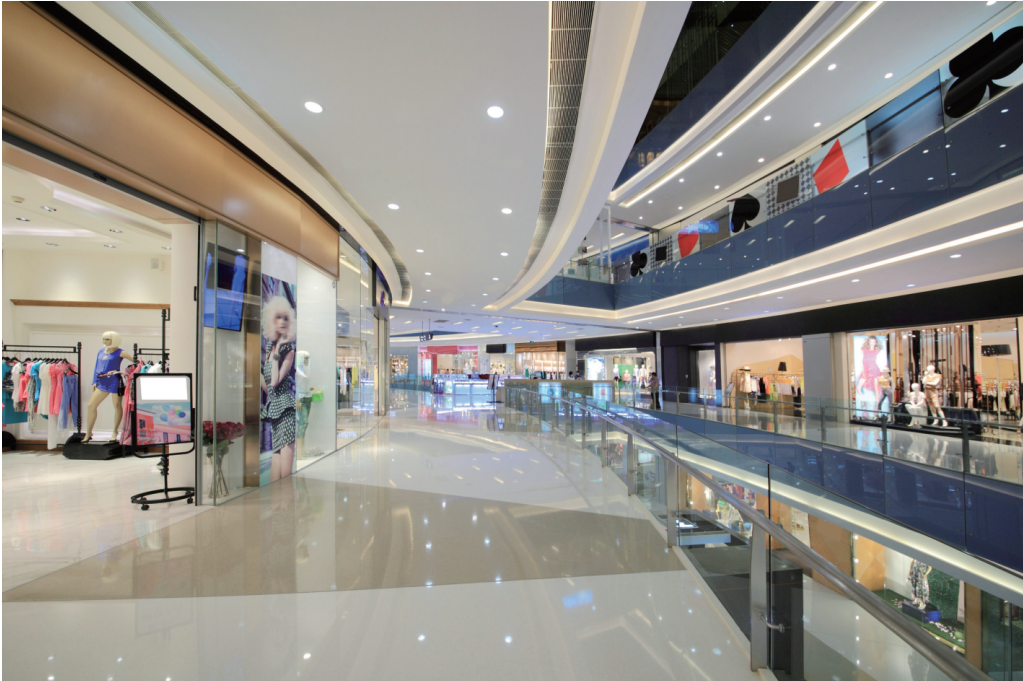

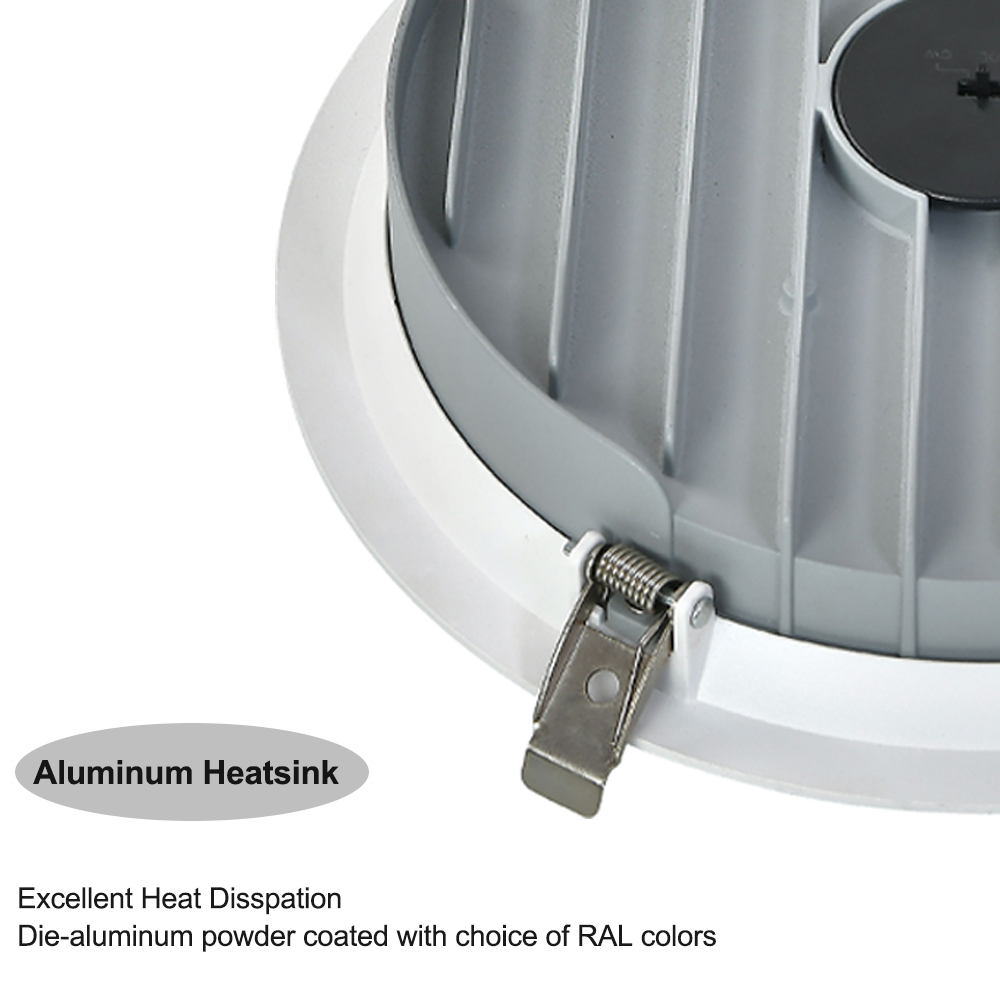

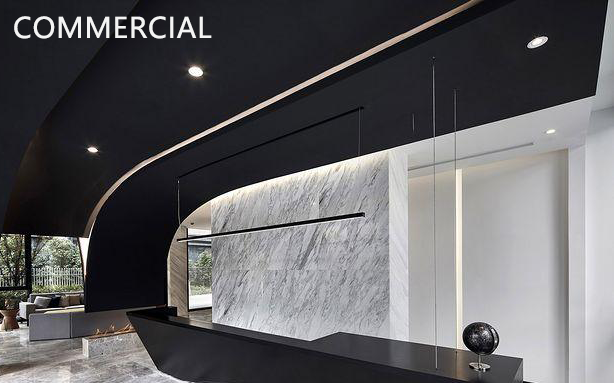

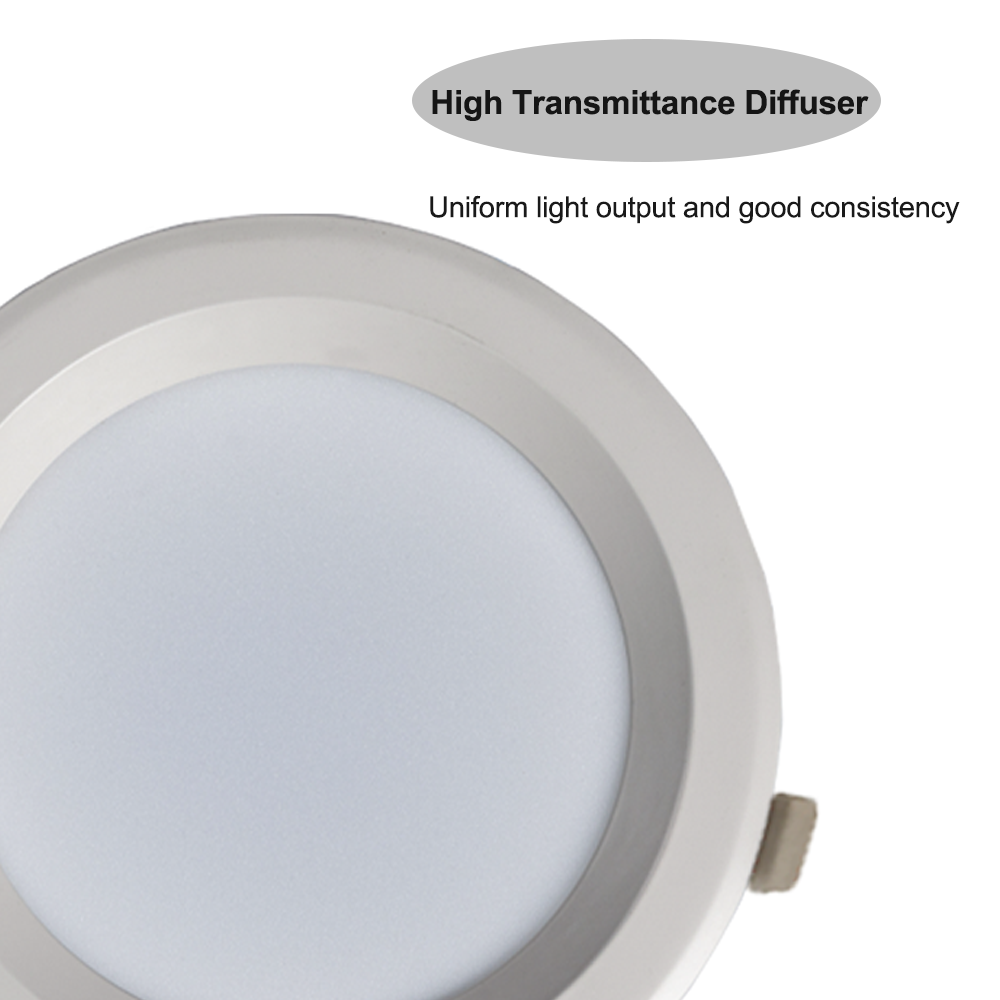

1. Dip Switch 3CCT 2. Application: General lighting for museums, galleries, showrooms and commercial applications 3. Housing: Die cast aluminum powder coated with choice of RAL colors. 4. Optic: Diffuser LED: Epistar, Bridgelux, CREE, OSRAM, Philips Power 5. Supply: Lifud, Eaglerise, Philips, Tridonic or Customized brand 6. Standard: Manufactured in accordance with tested as per IEC 62722. 7. Profile: Wide Beam with High Lumen Performance. |
||||
