| NO. | Item | Introduction |
|---|---|---|
| 1 | Size | 0.565m/0.665m/0.765/0.865m/0.965m/1.065m/1.165m and customized size available. |
| 2 | Light source | SMD2835 |
| 3 | Color temperature | 3000k; 4000k; 6500k |
| 4 | Color rendering index | >80 |
| 5 | Luminous Efficacy | 80 lm/W |
| 6 | Material | Aluminum + PC cover |
| 7 | Operating temperature | below 20~+50ºC |
| 8 | Input Voltage | 24DC |
| 9 | Service life | 30000hrs |
| 10 | Light Distribution | 60-150degree |
| 11 | Frequency | 60Hz to 50Hz |

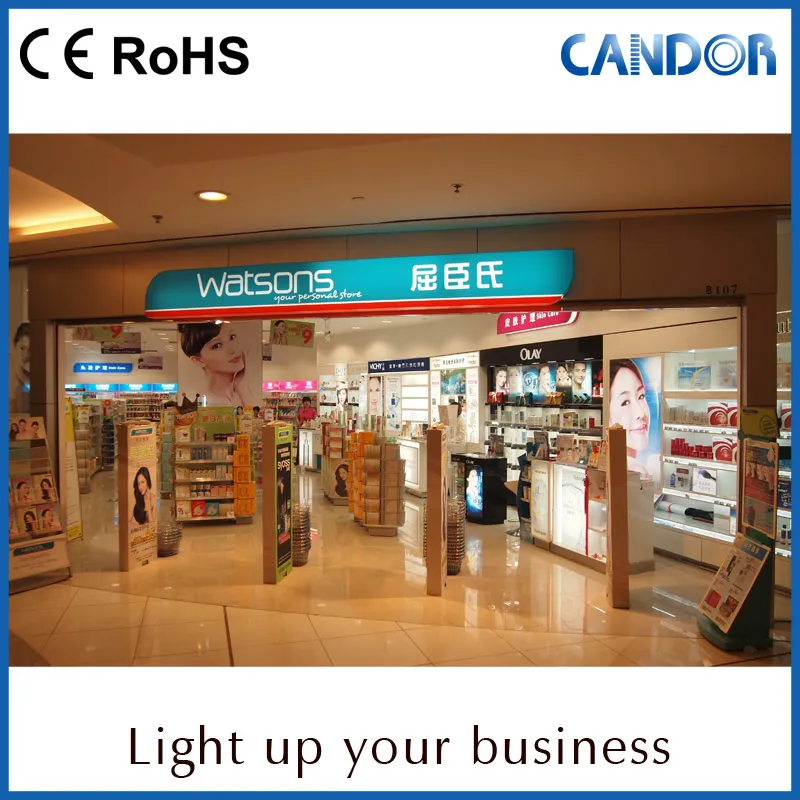

| 12 | Work Environment | Convenience Store; Supermarket; Beauty Store; Cooler Show Case etc |
| Length (mm) | Power (W) | LM (lm) | Body Material | Color Temperature | PCS/CTN | CTN/MEAS |
|---|---|---|---|---|---|---|
| 365 | 3.5 | 260 | Clear, Stripy, grey, Frosted cover available | 3000K/4000K/6500K | 320 | 98*23*17 |
| 465 | 4.2 | 340 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 320 | 120*23*17 |
| 565 | 5.1 | 410 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 75*21*16 |
| 665 | 6 | 500 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 80*21*16 |
| 765 | 6.9 | 550 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 100*23*17 |
| 865 | 7.8 | 620 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 98*23*17 |
| 965 | 8.7 | 695 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 120*23*16 |
| 1065 | 9.6 | 770 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 130*23*17 |
| 1165 | 10.5 | 840 | Clear, Stripy, grey, Frosted cover available. | 3000K/4000K/6500K | 160 | 140*24*17 |
A: If adequate stocks are available, products can be delivered in 1 day. For sample orders, normal samples can be sent in 3-5 days; for large quantity orders, products will depart within 15-20 days after the deposit is received.
A: Yes, products can be customized according to your requirements. MOQ will be different depending on product availability.
A: All our products have at least a 2-year warranty. Should you have any problems, please contact us directly and we will do our best to solve it.
A: 30% T/T deposit before production, 70% T/T balance before shipment.
A: The lifespan of an LED light is decided by the quality of the power supply and chip. With good chips and power, our lights can serve up to 50,000 hours.
A: Our products are CE and RoHS listed. As we expand the business, we will continue to get additional certifications to meet global market requirements.
