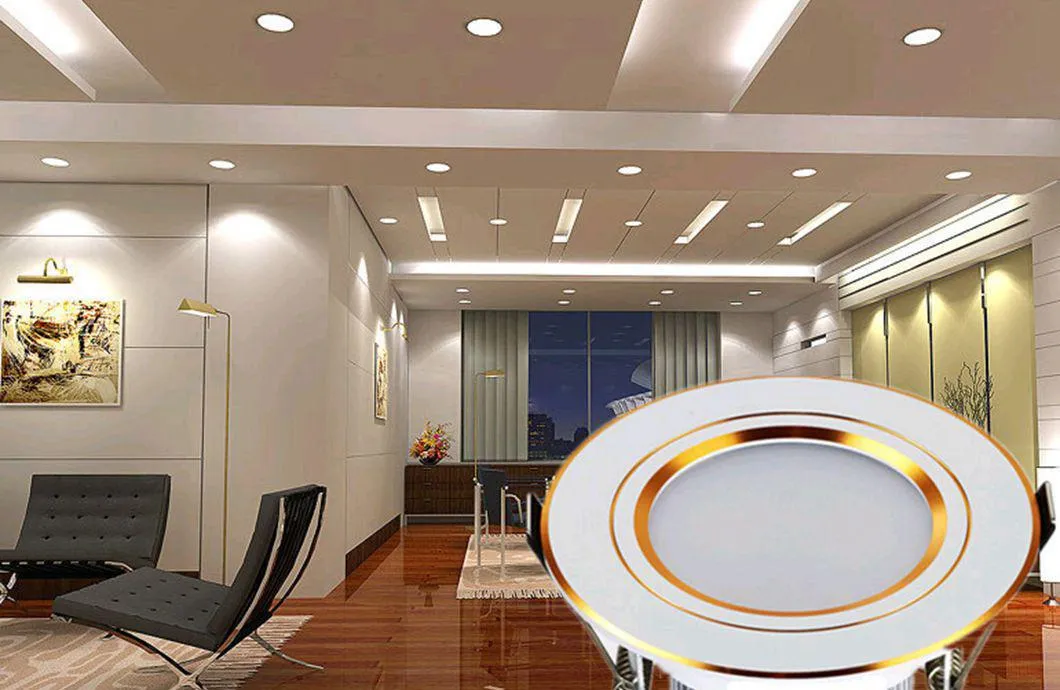

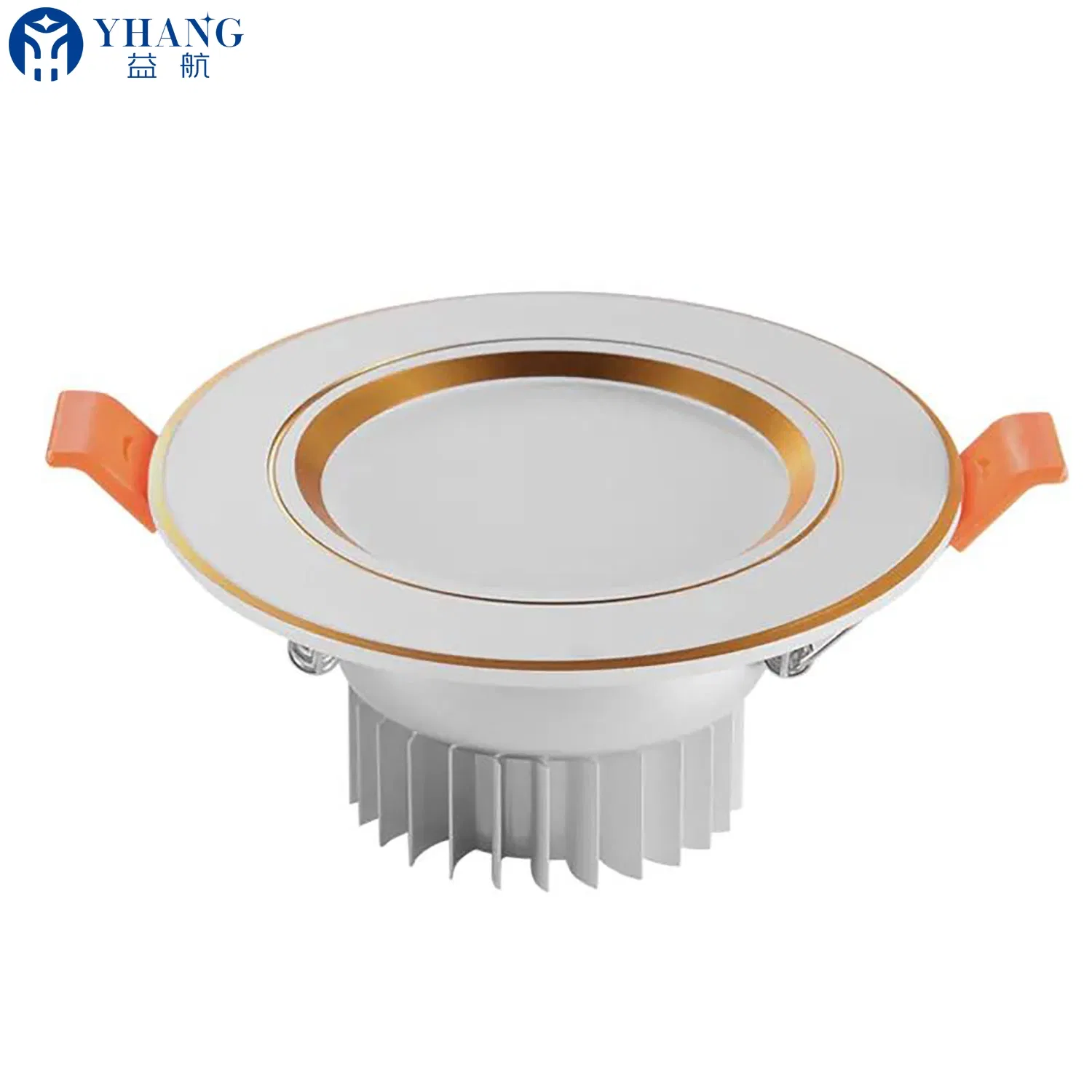

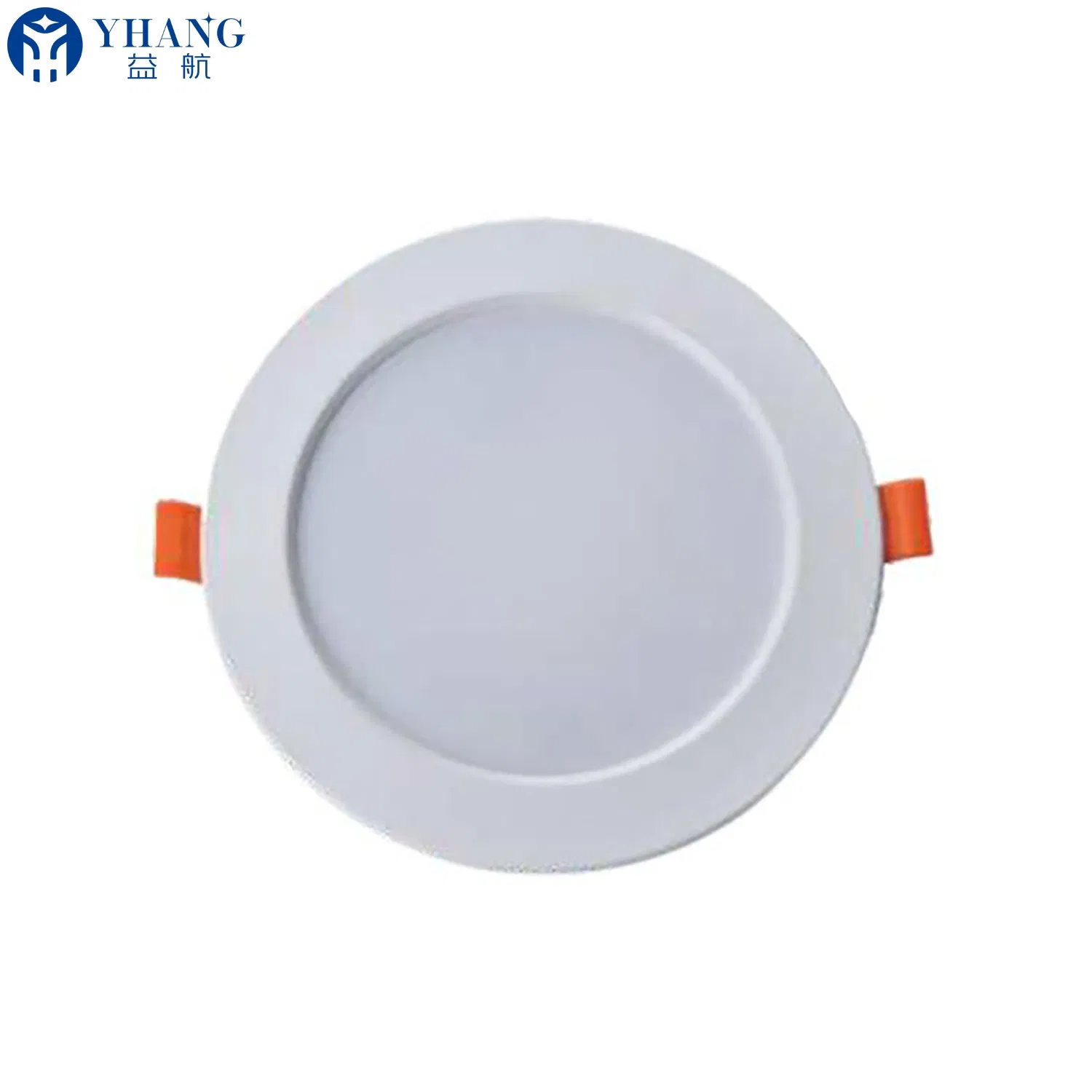

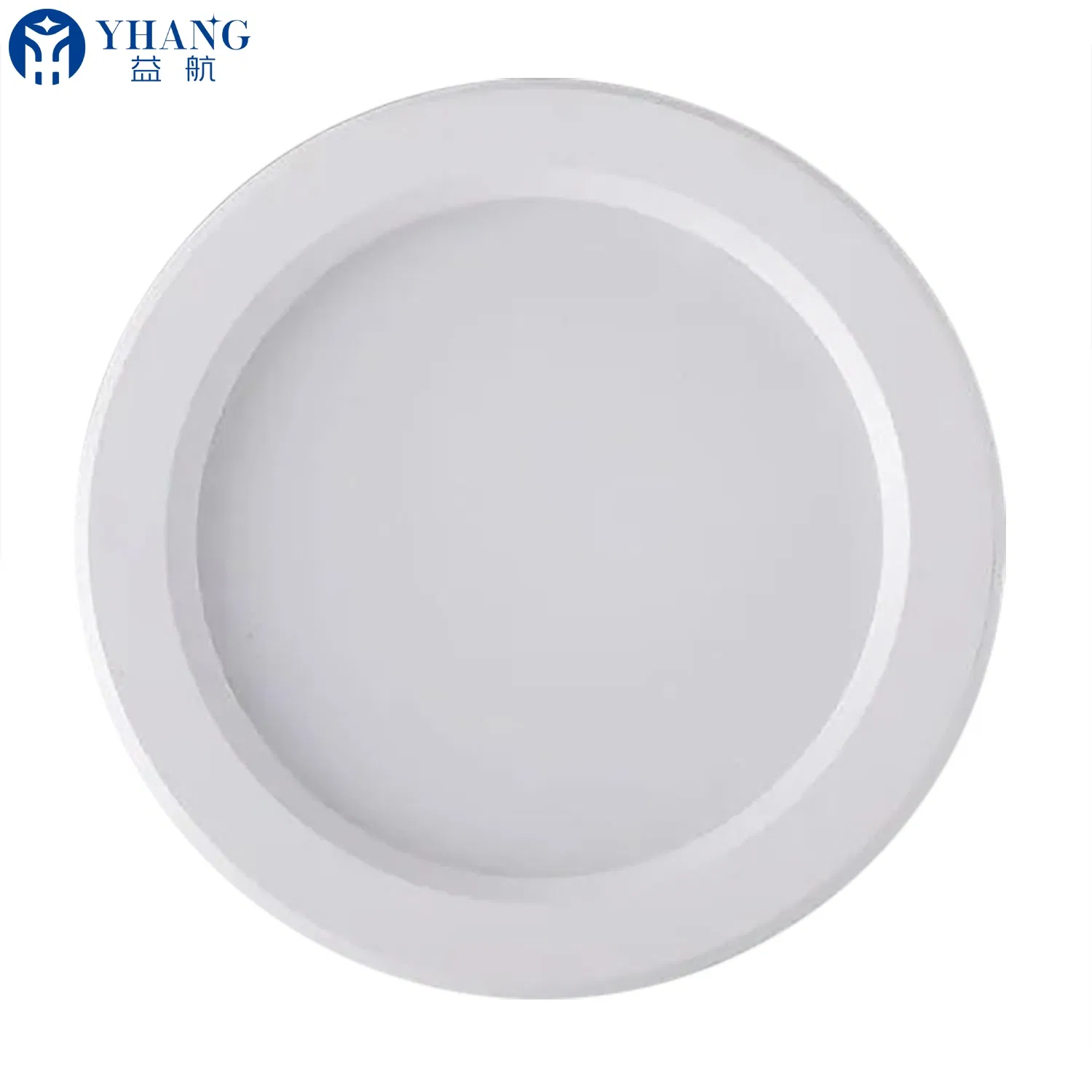

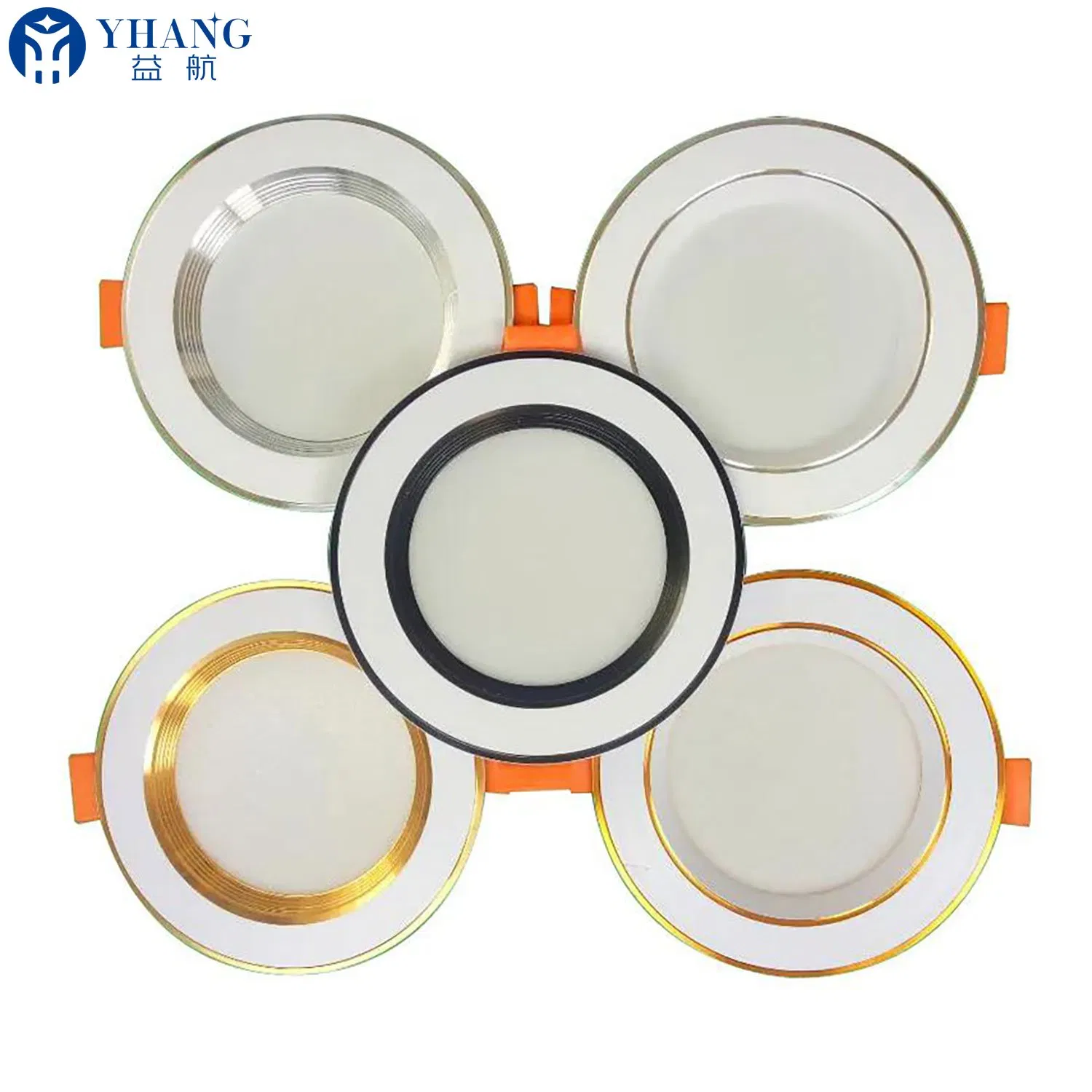

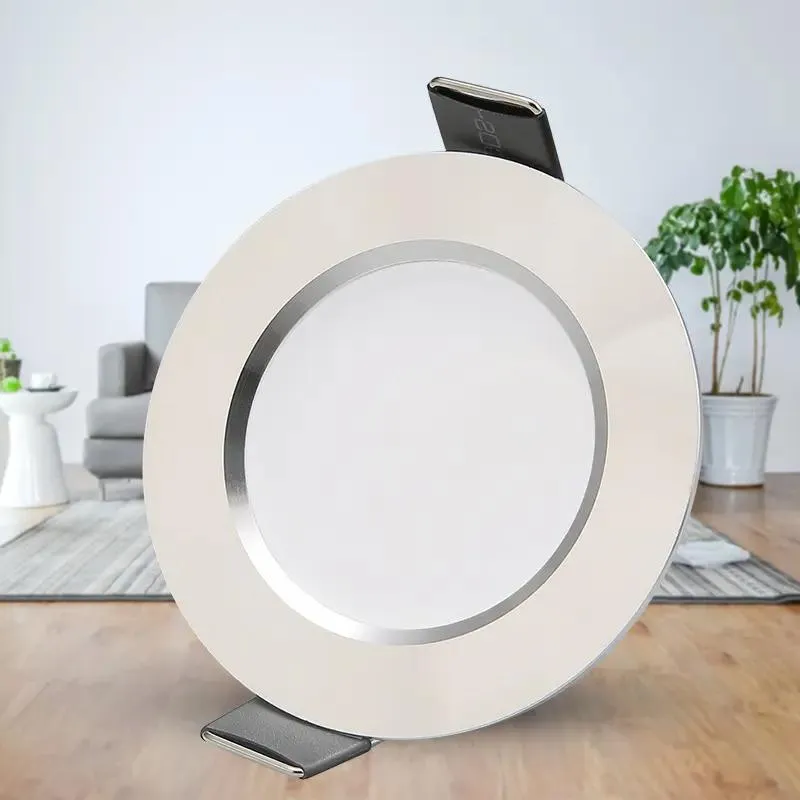

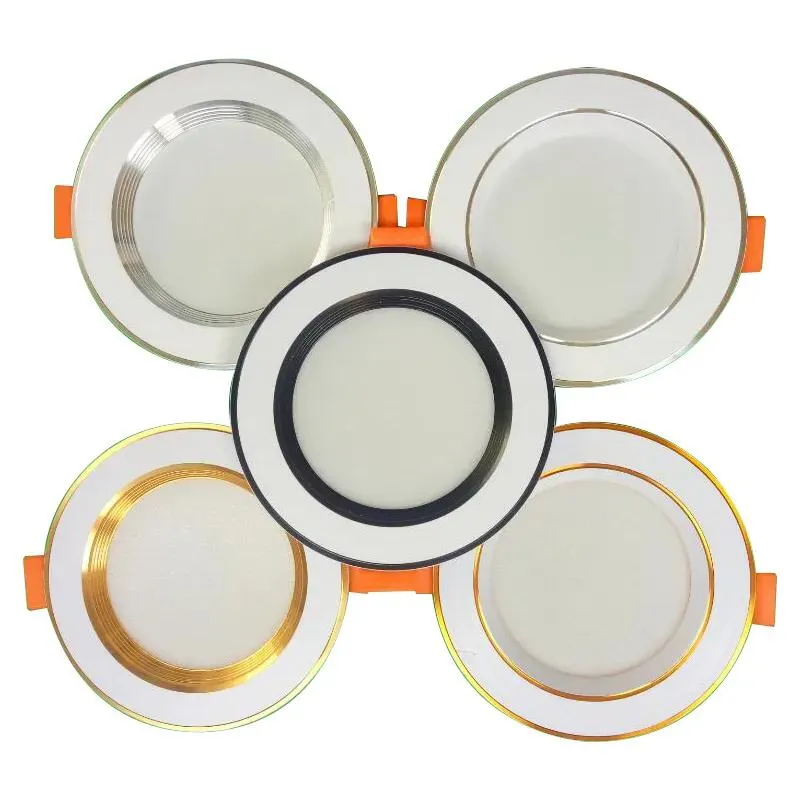

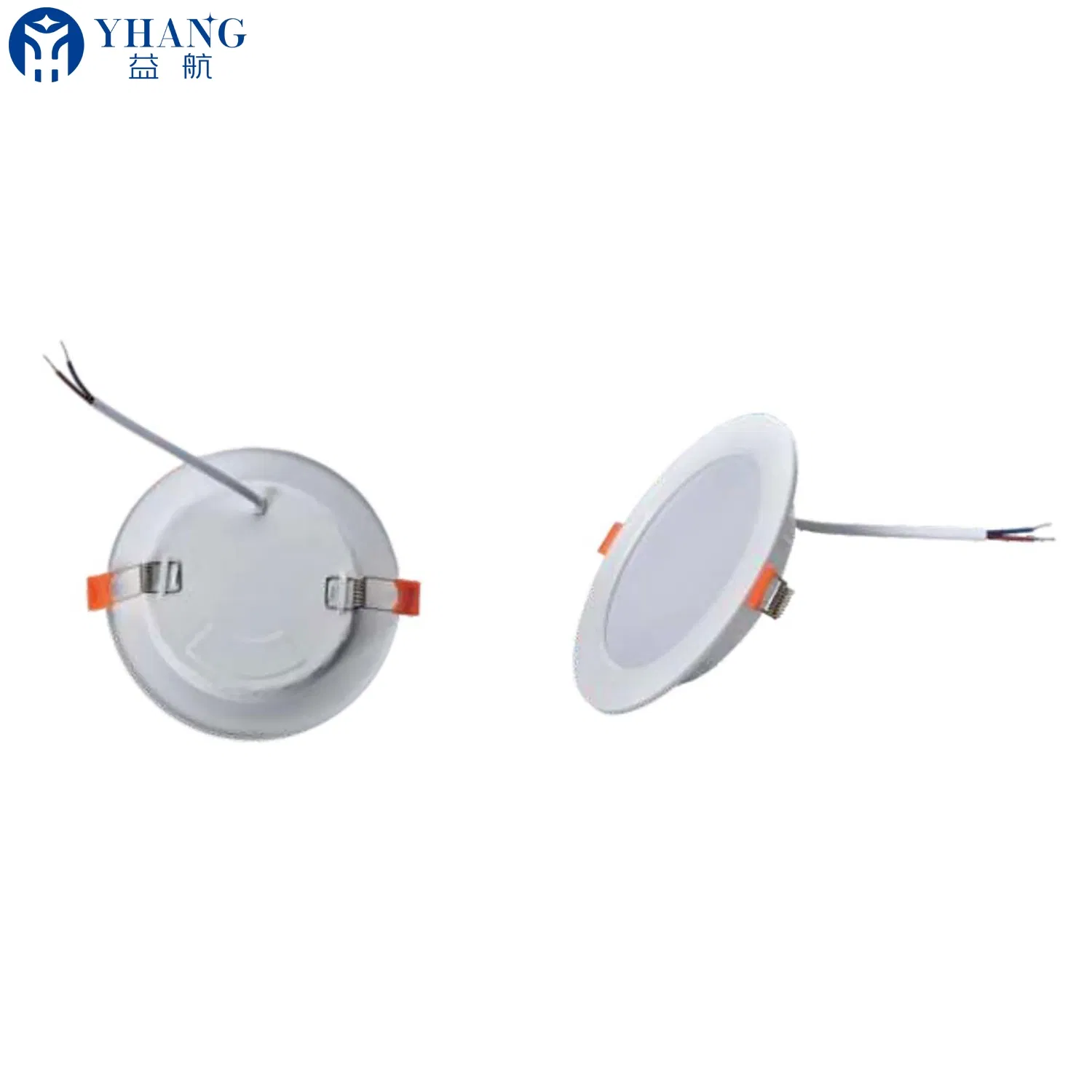

| Model NO. | LED CEILING BACKLIT SMALL PANEL |
| Emitting Color | 2700-6500K |
| Dimmable | Without Dimmable |
| Appearance | Round |
| Type | Ceiling |
| Base Material | Plastic |
| Certification | CE, RoHS, ISO9001, CCC |
| Voltage | 100-240V |
| Beam Angle | 120° |
| Best Service | High Quality |
| Short Leadtime | Best Price |
| Transport Package | 2PCS/Inner Box, 10PCS/Outer Carton |
| Specification | Diamter 96mm 118mm 145mm 185mm 220mm |
| HS Code | 9405429000 |
| Production Capacity | 100000PCS/Month |
| Package Size | 60.00cm * 60.00cm * 20.00cm |
| Package Gross Weight | 9.300kg |
| MODEL | SIZE(mm) | Cut-off hole size | working voltage range | Driver Type | Ra | PF | Lm/W | Power | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| BSP-5W-M | φ96mm | φ70mm | 220-240V | Linear | Ra>70 Ra>80 | >0.7 | >50 | 5W | 120° |
| BSP-7W-M | φ118mm | φ90mm | 220-240V | Linear | Ra>70 Ra>80 | >0.7 | >60 | 7W | 120° |
| BSP-12W-M | φ145mm | φ110mm | 220-240V | Linear | Ra>70 Ra>80 | >0.7 | >65 | 12W | 120° |
| BSP-18W-M | φ185mm | φ140mm | 220-240V | Linear | Ra>70 Ra>80 | >0.7 | >70 | 18W | 120° |
| BSP-24W-M | φ220mm | φ170mm | 220-240V | Linear | Ra>70 Ra>80 | >0.7 | >80 | 24W | 120° |
| BSP-5W-B | φ96mm | φ70mm | 100-240V | IC DOB | Ra>70 Ra>80 | >0.7 | >50 | 5W | 120° |
| BSP-7W-B | φ118mm | φ90mm | 100-240V | IC DOB | Ra>70 Ra>80 | >0.7 | >60 | 7W | 120° |
| BSP-12W-B | φ145mm | φ110mm | 100-240V | IC DOB | Ra>70 Ra>80 | >0.7 | >65 | 12W | 120° |
| BSP-18W-B | φ185mm | φ140mm | 100-240V | IC DOB | Ra>70 Ra>80 | >0.7 | >70 | 18W | 120° |
| BSP-24W-B | φ220mm | φ170mm | 100-240V | IC DOB | Ra>70 Ra>80 | >0.7 | >80 | 24W | 120° |

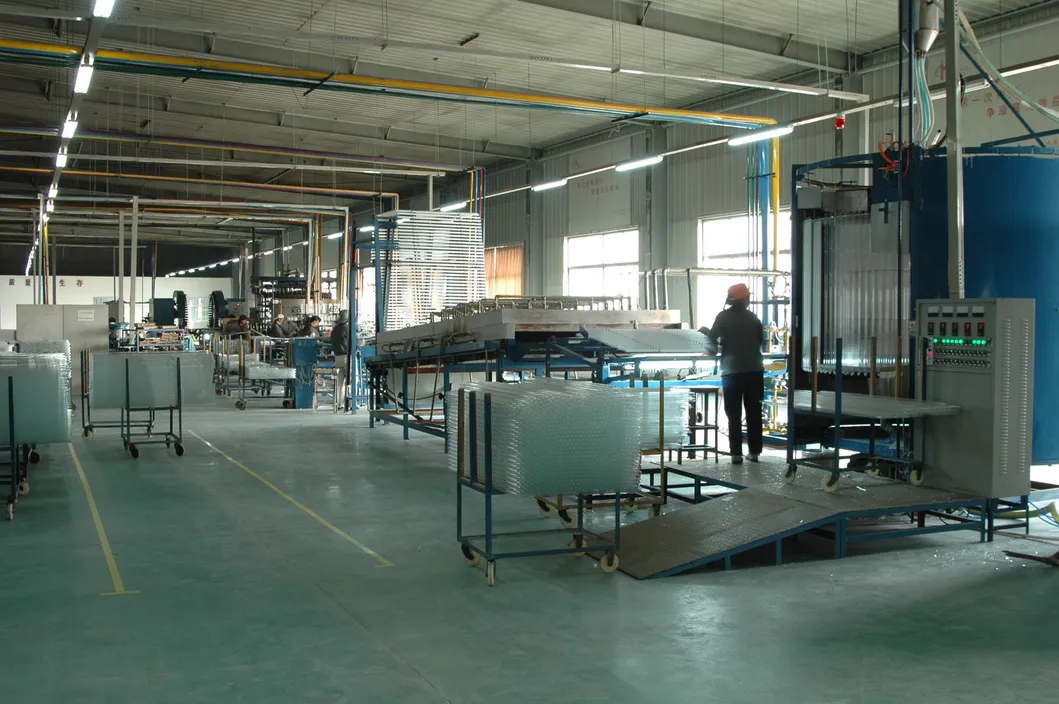

Our company is a professional manufacturer of lighting products and exports them by ourselves.
Our main products include LED tube series, special lighting products series, such as UV lamps, mosquito lamps, germicidal lamps, animal and plant growth lamps, blue medical lamps, reptile lamps, explosion-proof lamps.
We support video inspection and verification.
Common terms: T/T 30% deposit, balance payment before shipment, L/C or Trade Assurance.
12 months warranty time after receiving days, not include quick-wear parts and default phase. We promise 24 hours action for your problems.
Yes, we provide packaging design and customization support to match different market requirements and brand specifications.
