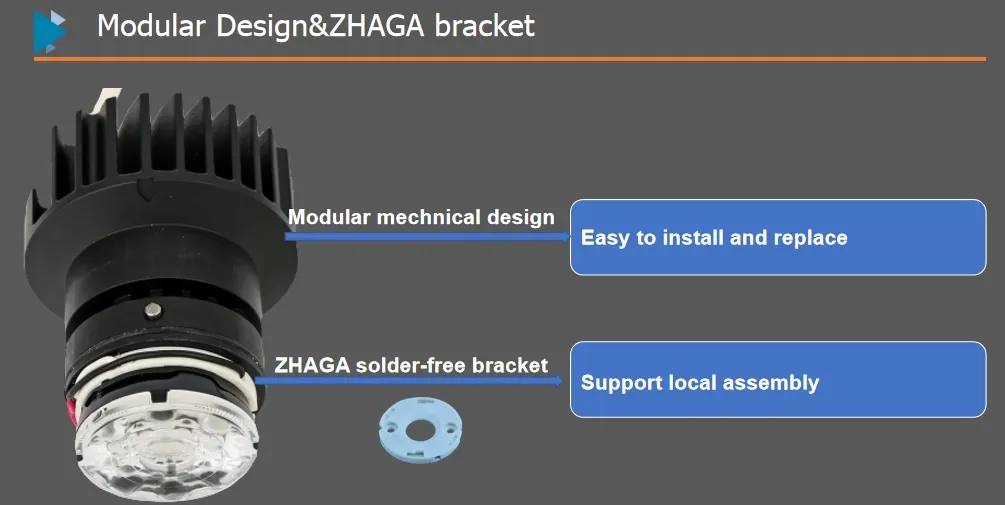

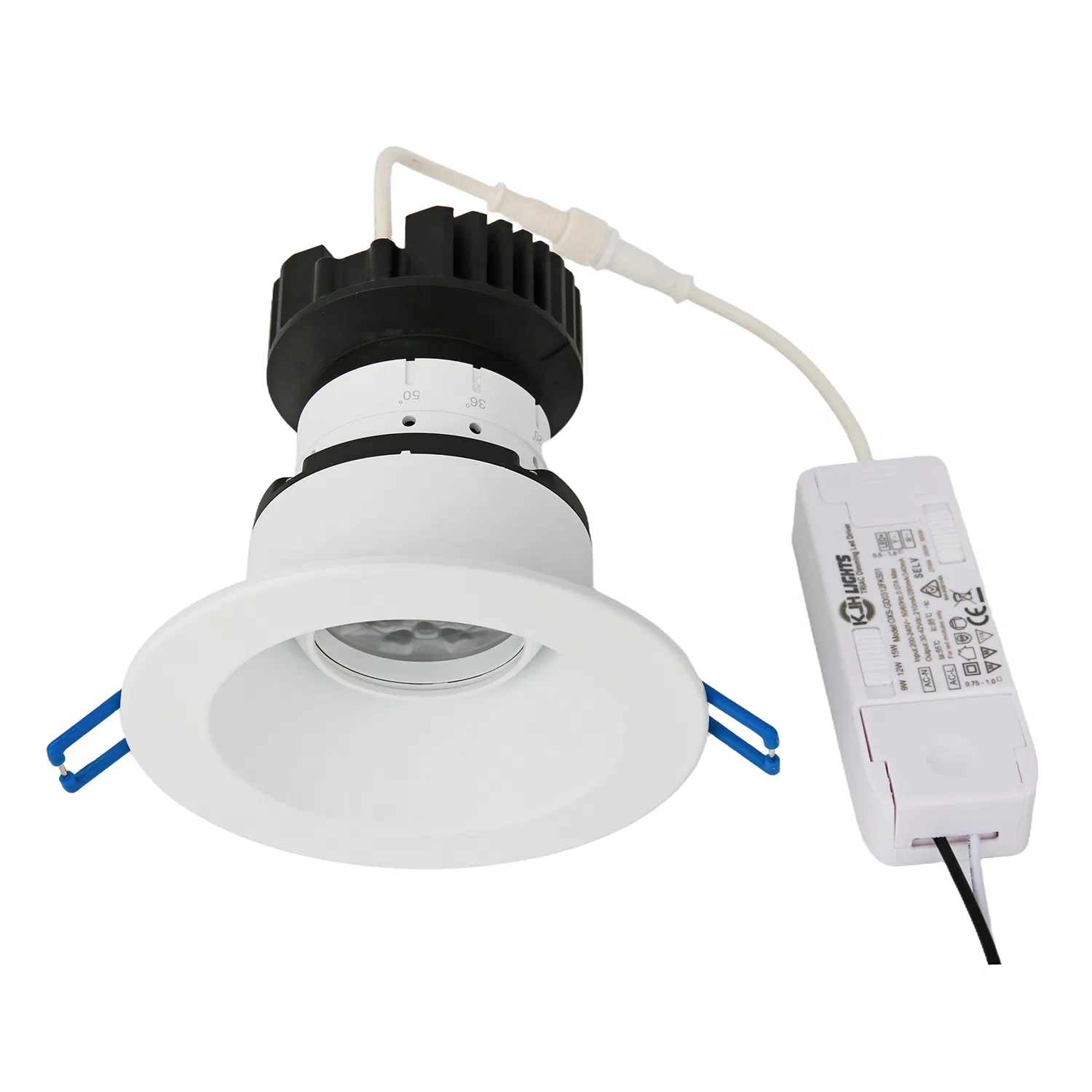

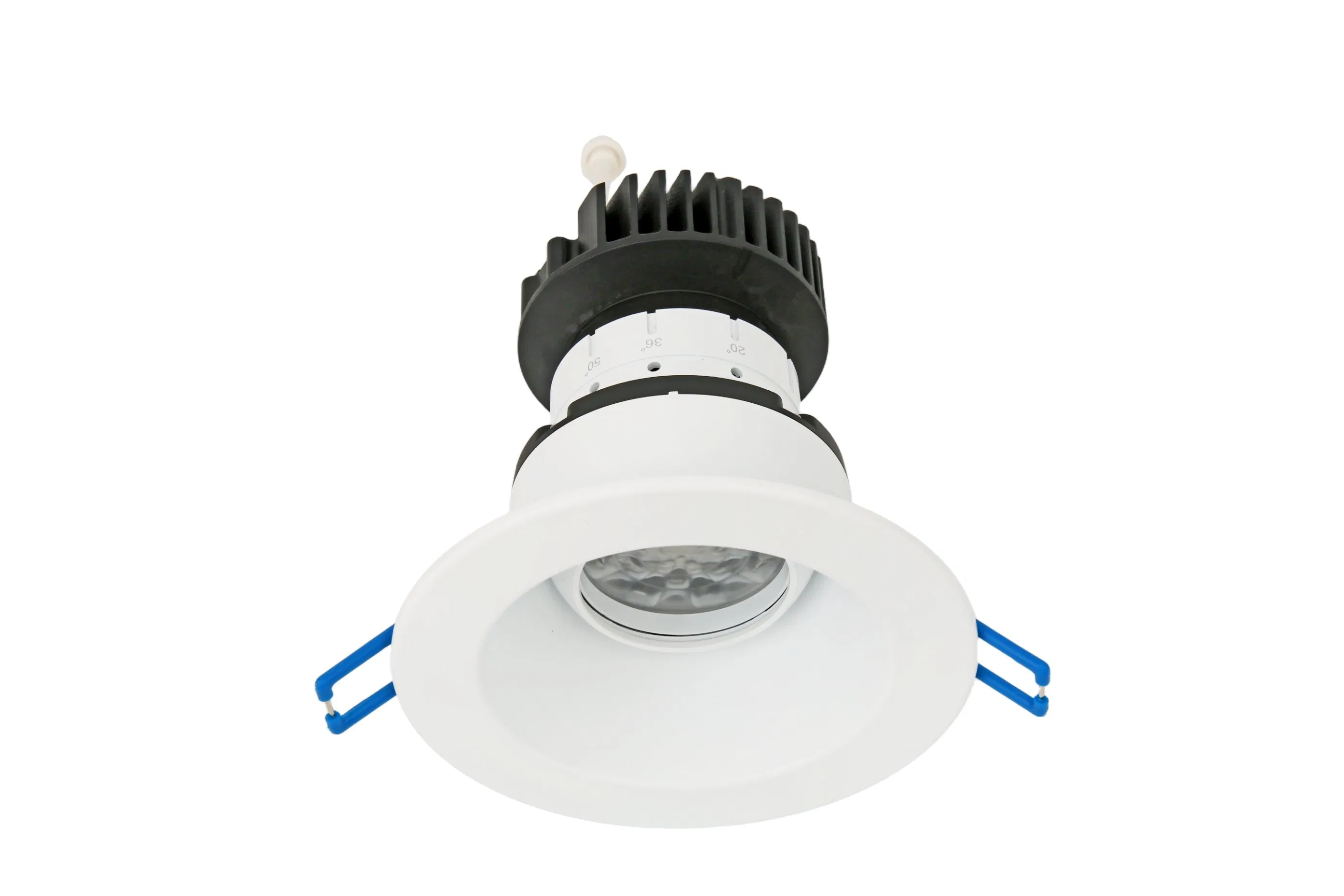

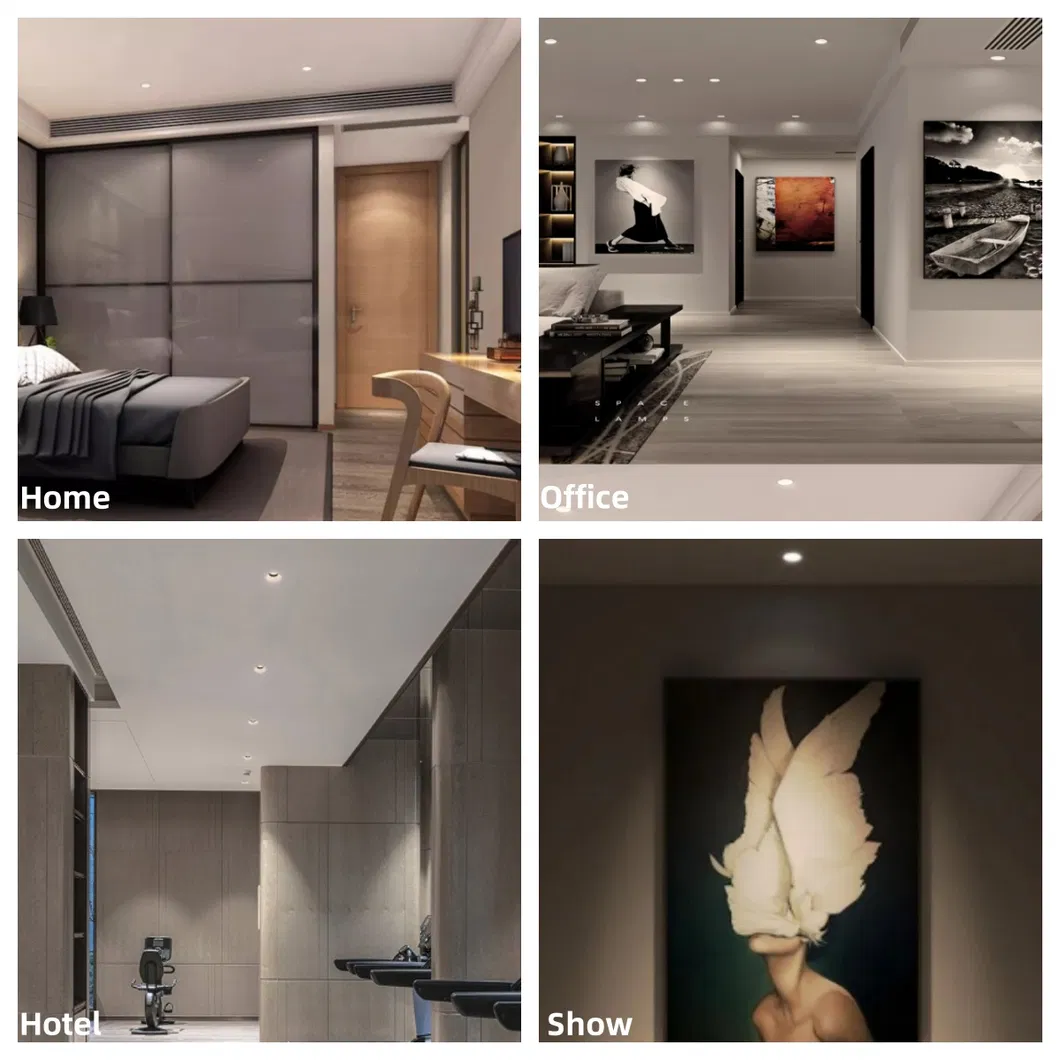

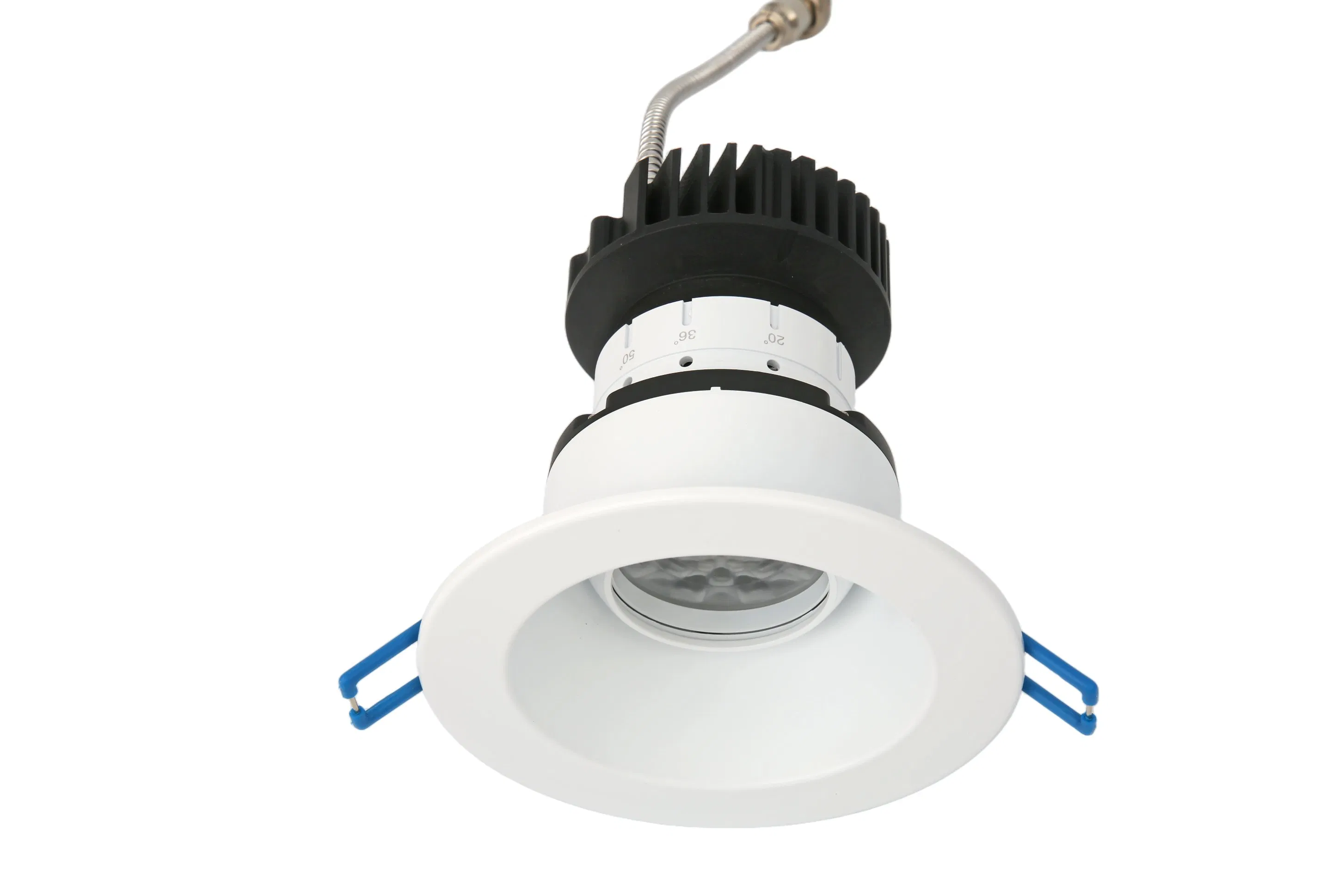

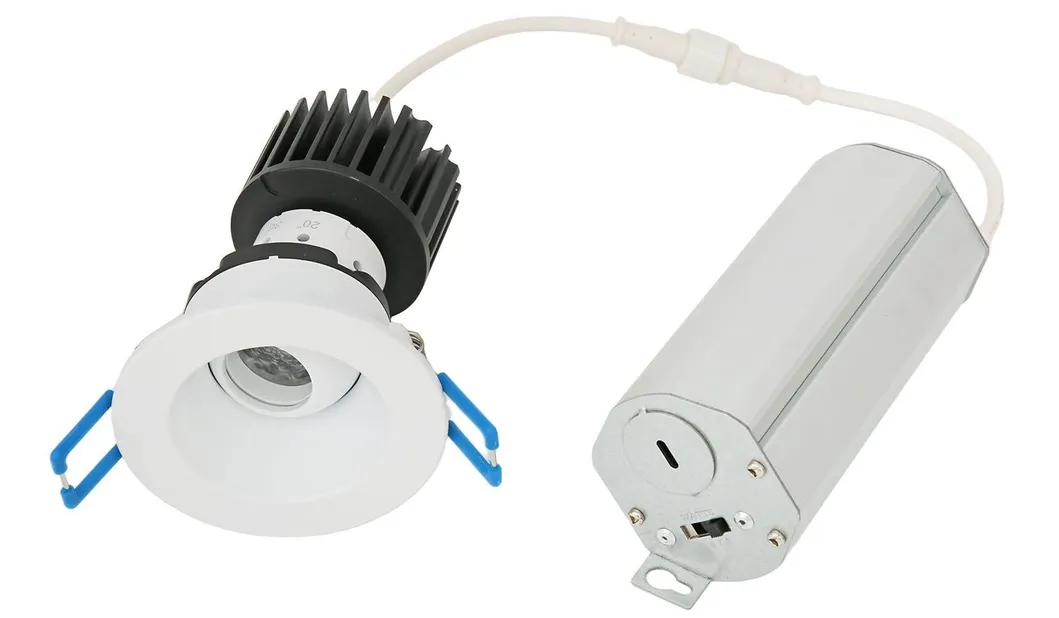

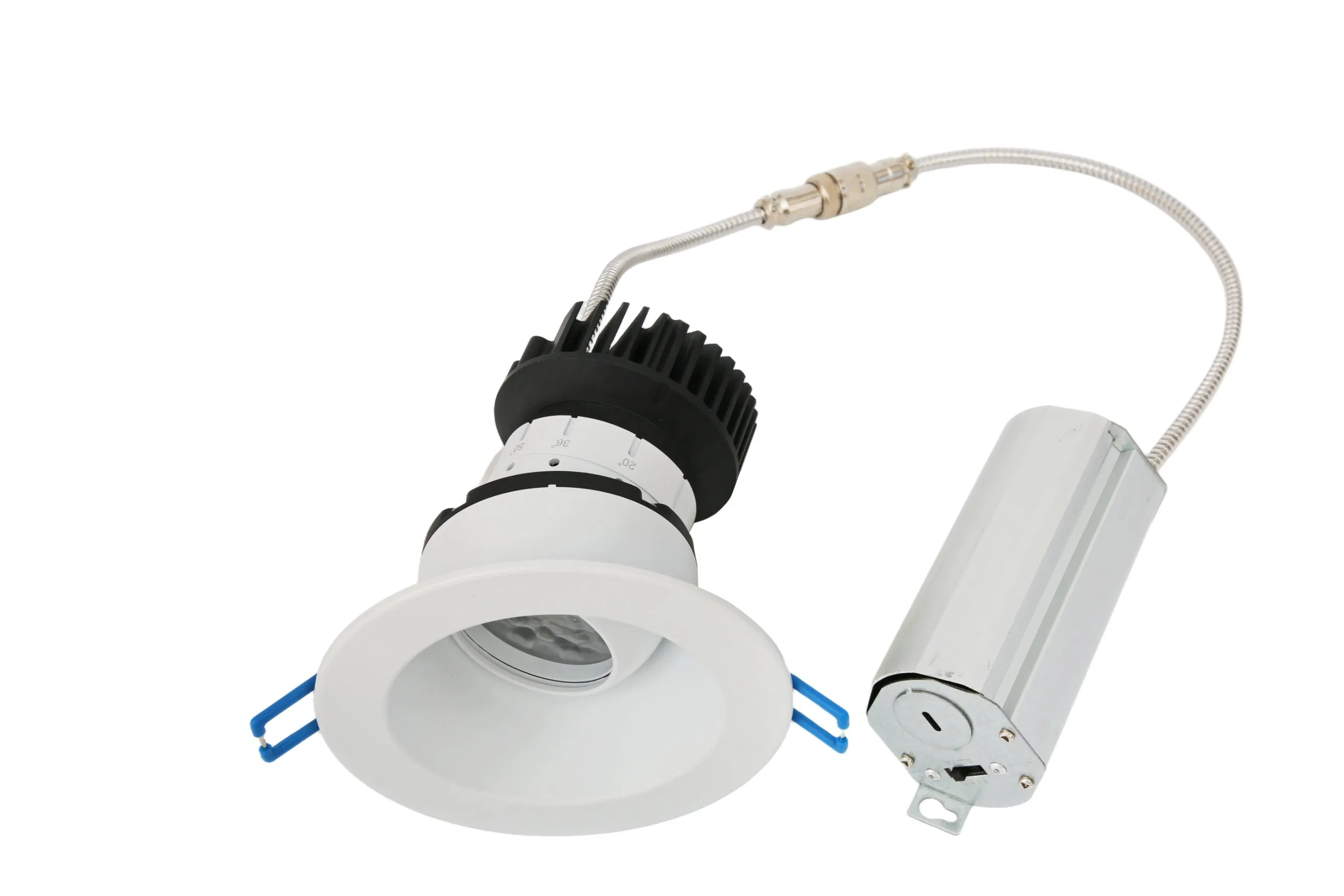

Our patented adjustable beam angle downlight combines innovative mechanics with modular design to enable effortless beam angles adjustments between 20°, 36°, and 50°. Featuring 360° rotation and 20° tilt capabilities, it empowers users to tailor precise light distributions for any unique space. Perfect for residential, commercial, and architectural applications.
Durable aluminum body designed for optimal thermal management and prolonged lifecycle.

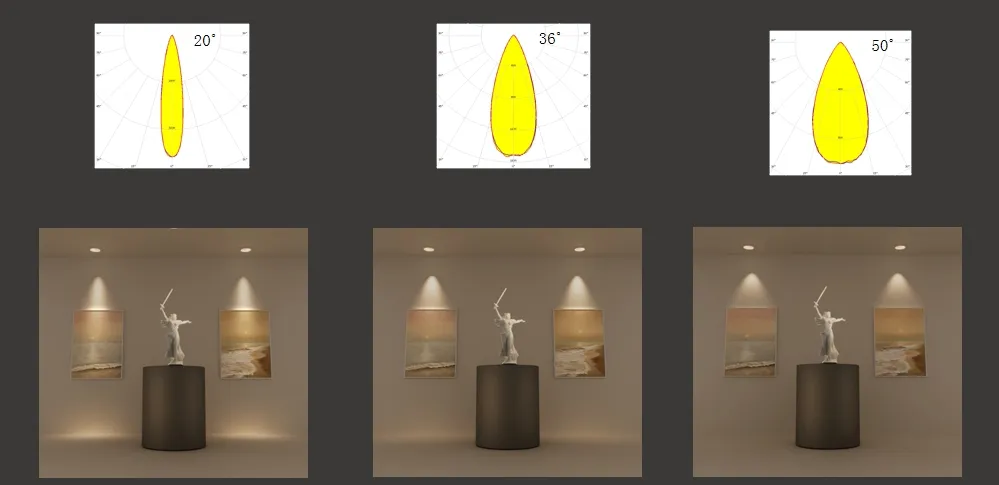

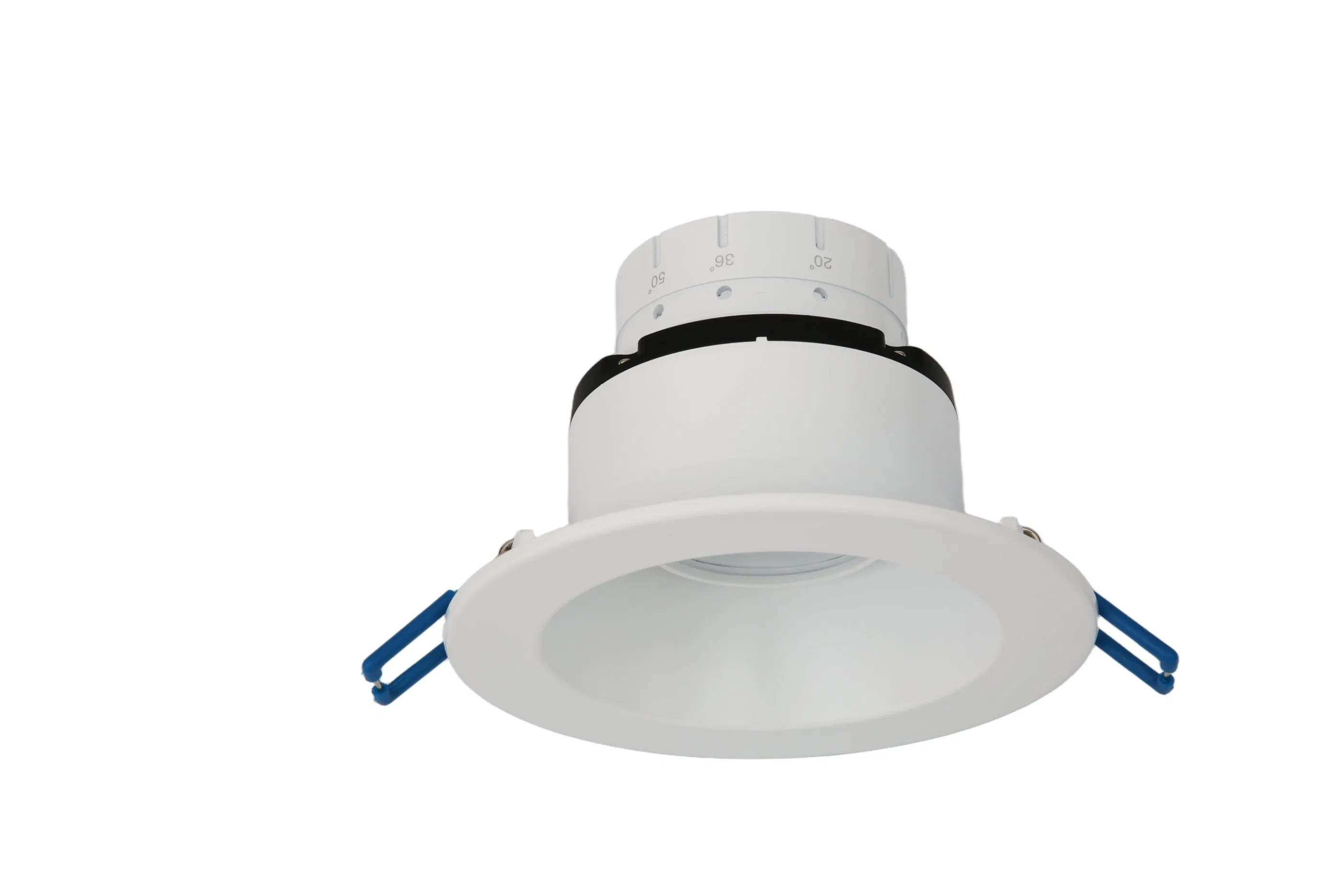

Effortlessly shift beam patterns between 20°, 36°, and 50° to match changing spatial needs.
Supports 360° horizontal rotation and 20° vertical tilt for absolute control over focal illumination.

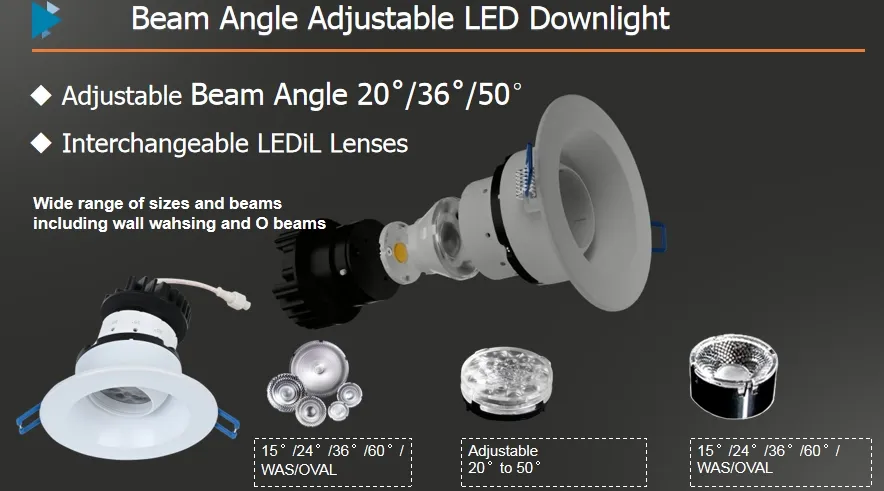

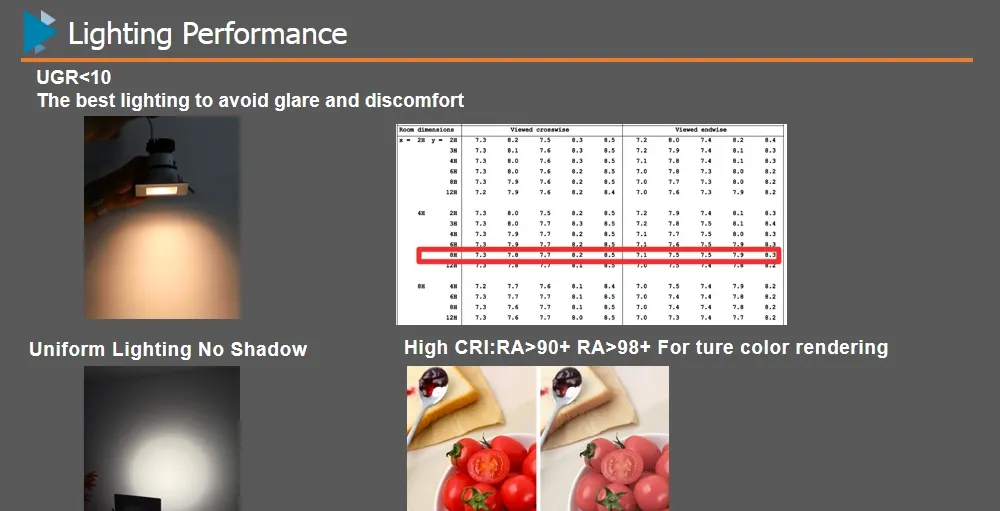

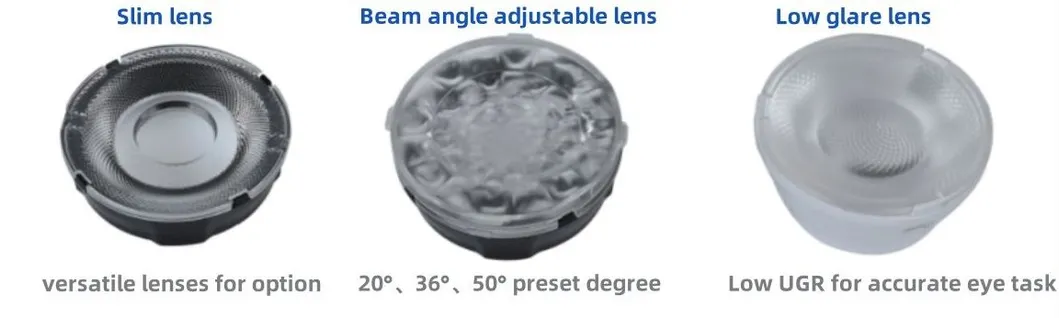

Compatible with premium lenses to easily achieve low-glare, wall-washing, or tailored lighting effects.

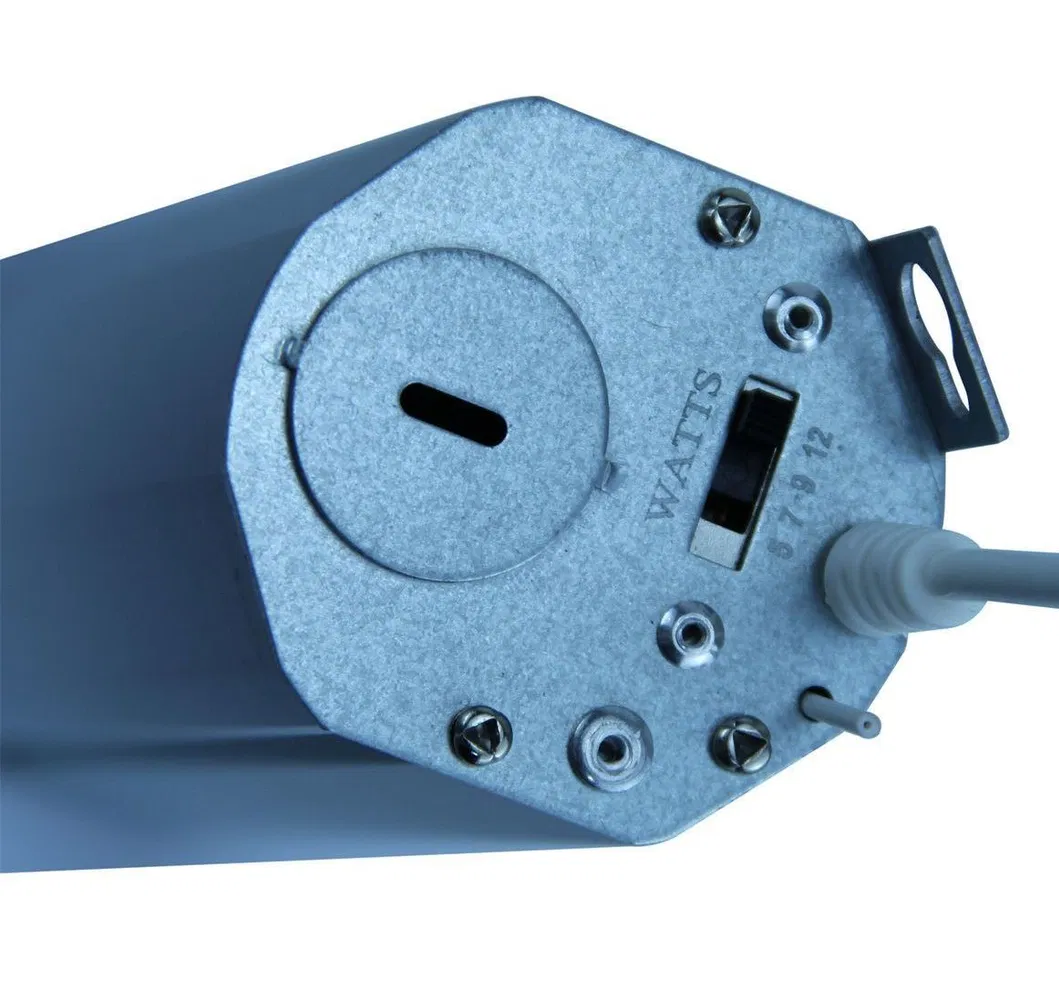

Multi-wattage configuration supporting 9W, 12W, and 15W options in a single fixture.

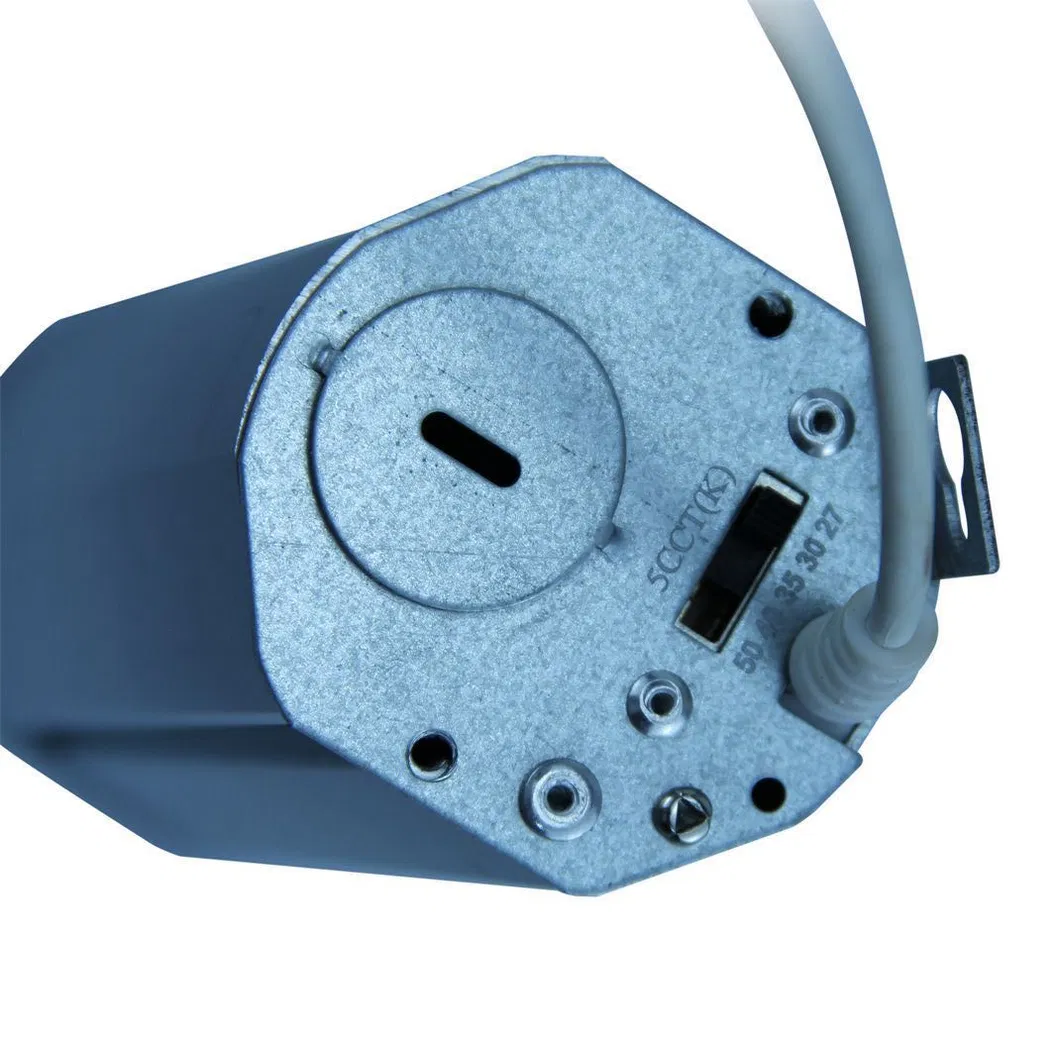

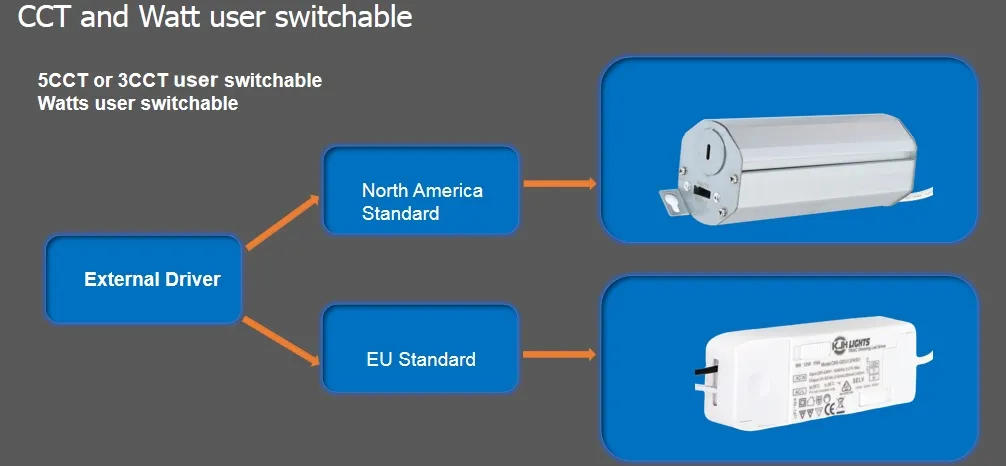

5-Color Temperature options (2700K to 5000K) fully compatible with standard TRIAC dimmers.
Equipped with premium Bridgelux LEDs featuring CRI >90+ for outstanding, true-to-life color rendering.
Compatible with standard 0-10V dimming configurations or smart RGBCW setups.
| Parameter Details | |
|---|---|
| Model No. | K25-KG4R-ABA |
| Rated Power | 9W / 12W / 15W Selectable |
| Input Voltage | 120V |
| CCT Options | 5CCT (2700K/3000K/3500K/4000K/5000K) Adjustable |
| Beam Angle Range | Adjustable beam 20° / 36° / 60° |
| CRI (Color Rendering Index) | >90+ |
| Power Factor | >0.9 |
| Air Tight Certification | Yes |
| Dimensions | φ125 * H119mm |
| Cut Hole Size | 106mm |

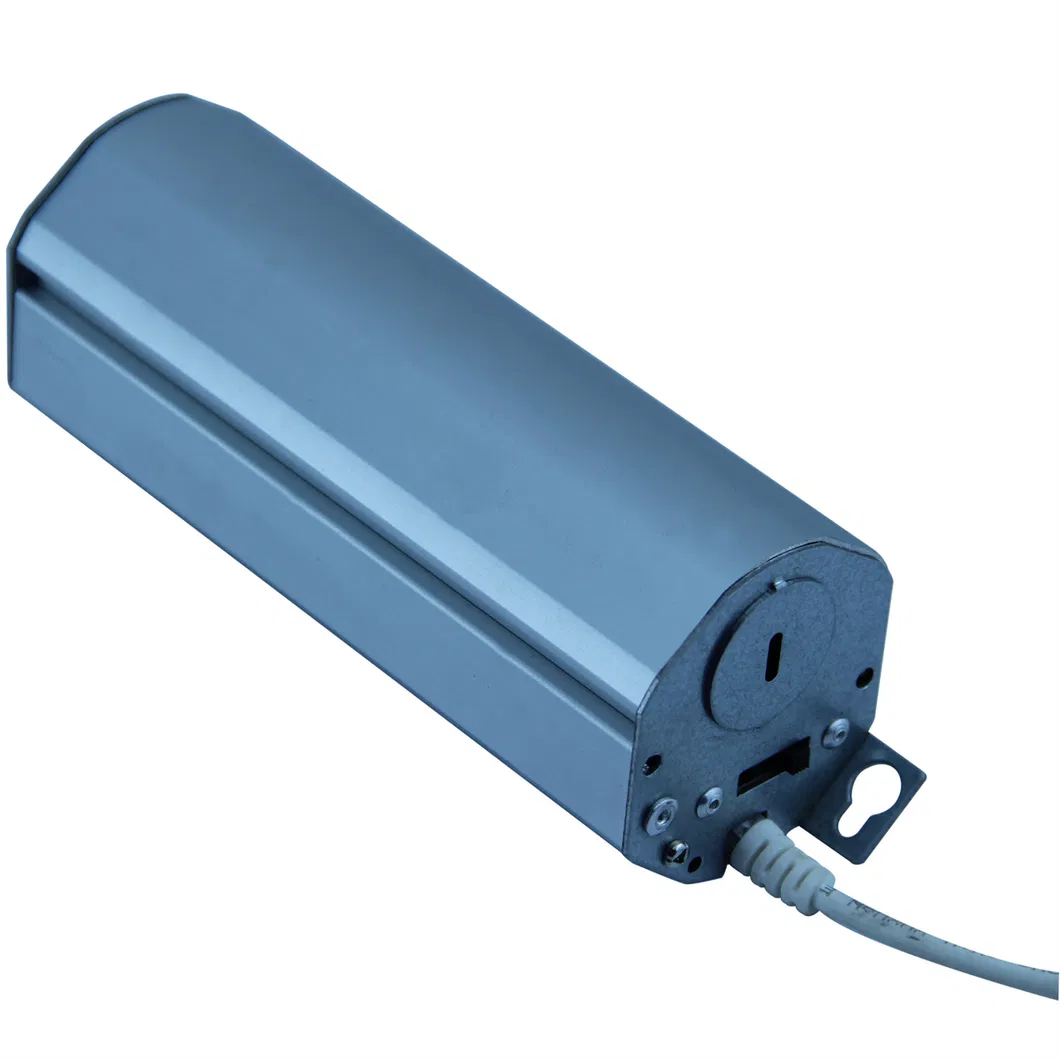

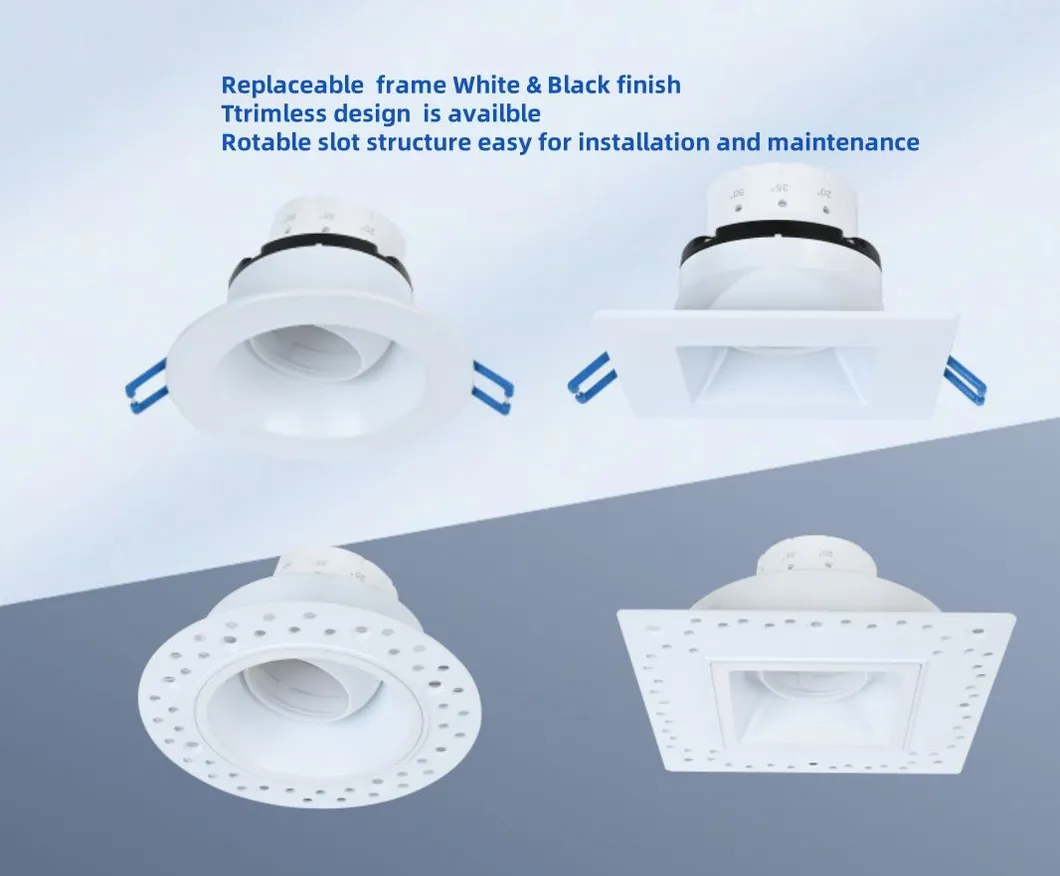

| Housing Finishes | White / Black / Bronze |

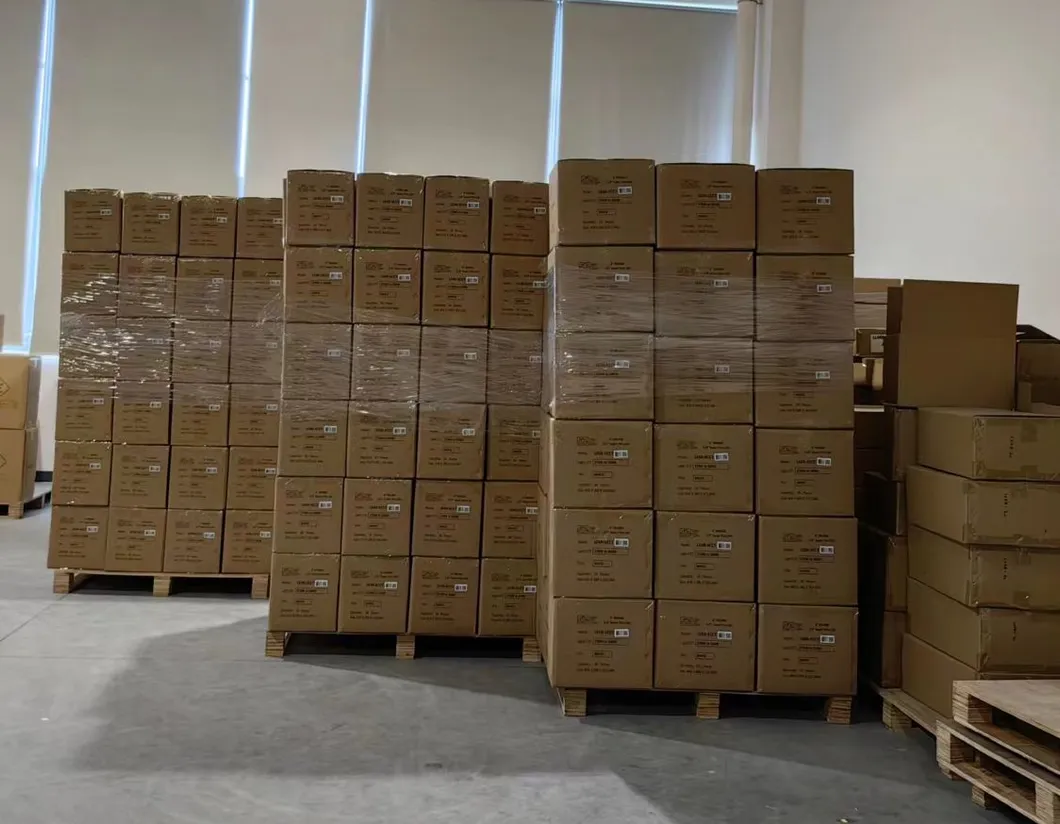

We use heavy-duty, double-wall cardbox packaging designed to withstand long-distance international shipping. We offer a wide range of logistics channels including global express, ocean cargo, air freight, and overland transportation.

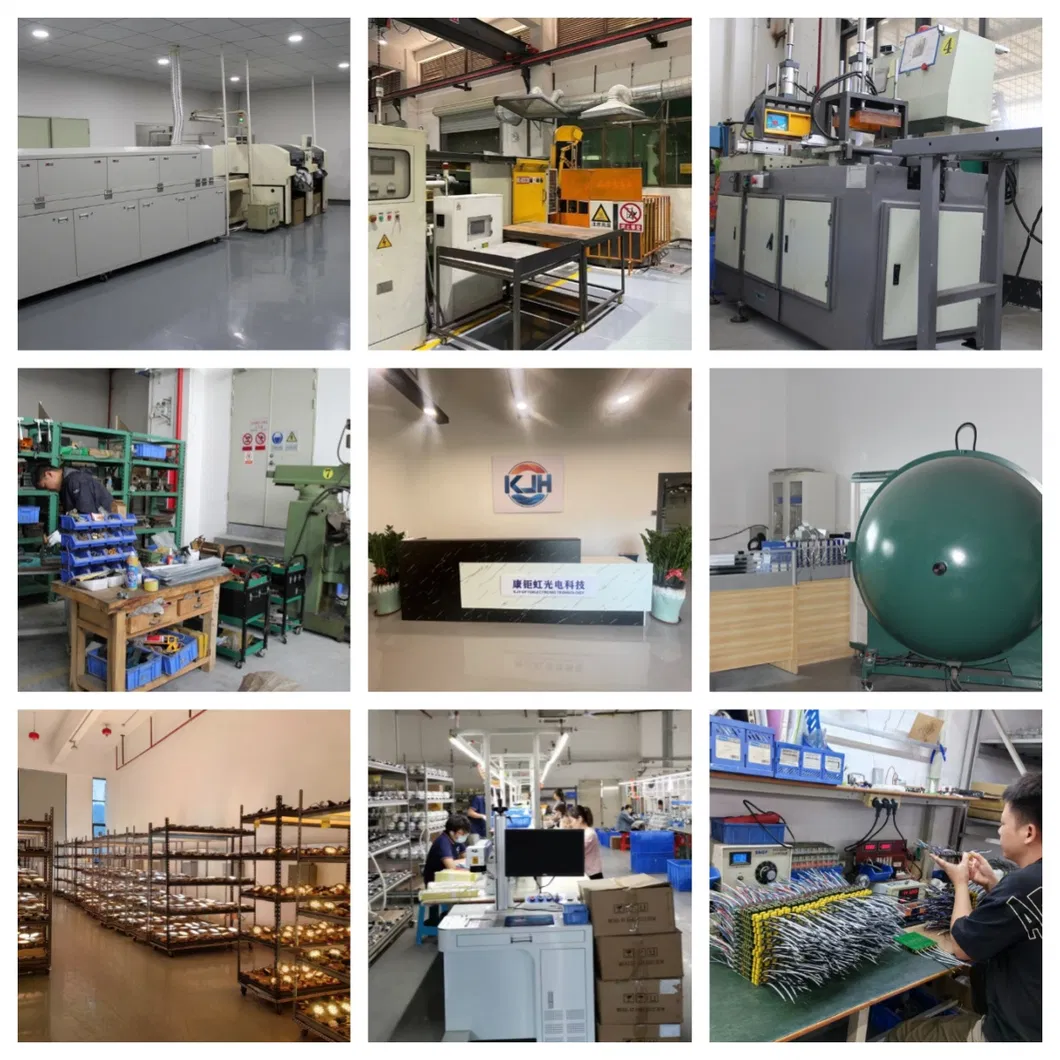

Equipped with a proprietary hardware workshop, power supply design laboratory, auto-soldering setups, SMT equipment, CNC machinery, and high-precision laser engravers.
Equipped with integrating spheres and distribution photometers to evaluate spatial light output, driver efficiencies, and overall luminaire execution.
Implementing ISO9001 frameworks with a certified QC team testing for waterproof features, heat resistance, and electrical parameters. A strict 48-hour aging process is executed prior to dispatch.
Equipped with 10+ low-voltage testing lines, optimizing production to support custom supply demands of up to 500,000 units monthly.

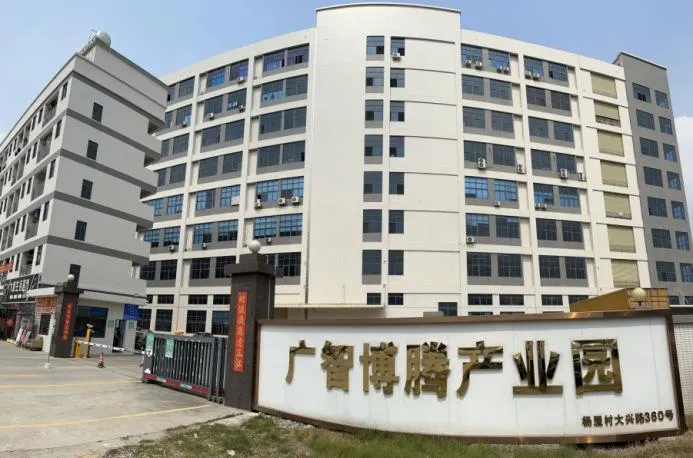

Yes, we operate a fully integrated factory equipped with custom hardware, assembly lines, and technical labs to manage products from engineering design to bulk manufacturing.
Yes, sample orders are welcomed. This allows you to evaluate the build quality, optics performance, and mechanical rotation features before committing to commercial volumes.
Small quantities typically require 5 to 7 business days. Larger container shipments and custom configurations are scheduled dynamically based on order volume and parameters.
Yes, we enforce 100% QA checks. Every light fixture undergoes a minimum 48-hour continuous burn-in and aging test to identify and eliminate potential defects before packaging.
We package using impact-resistant neutral cartons built for international freight. For fragile optical components, we can supply reinforced wood crates to guarantee absolute protection during transit.
Yes. We supply comprehensive OEM solutions, incorporating custom packaging layouts, customized labels, electrical spec configurations, and personalized surface finishes.
