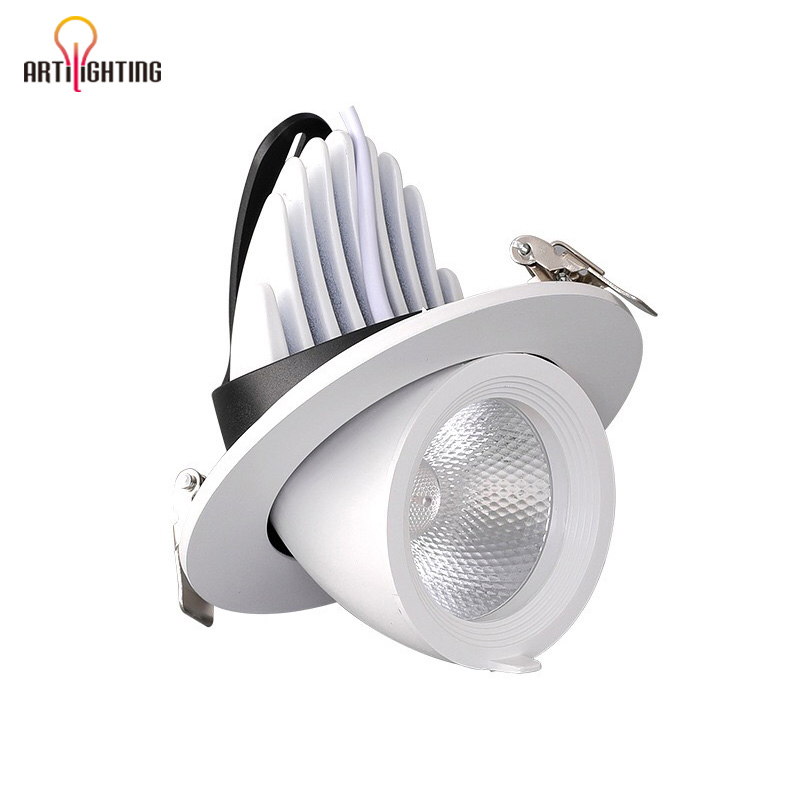

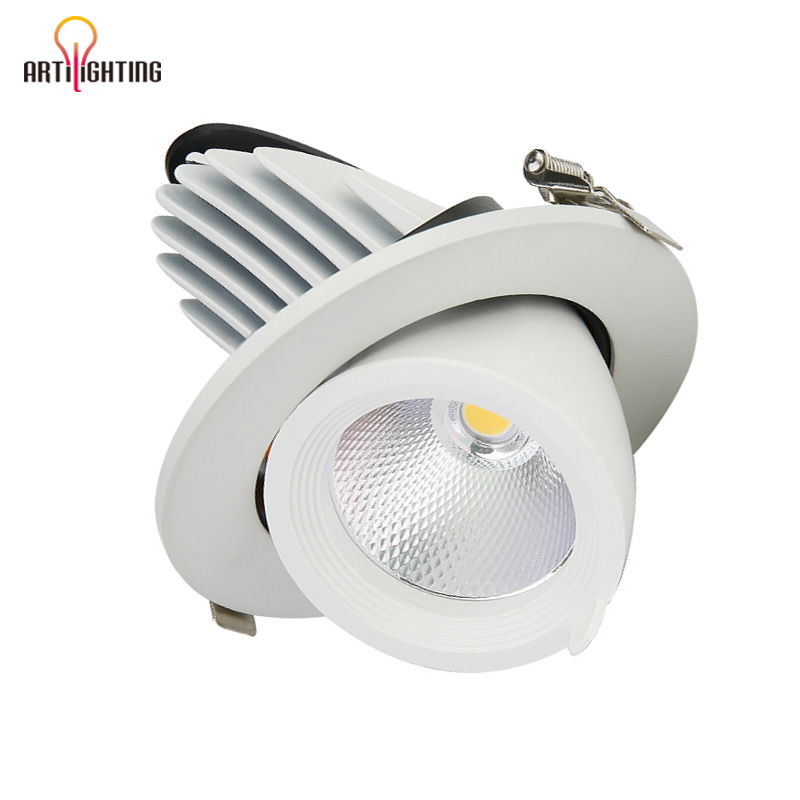

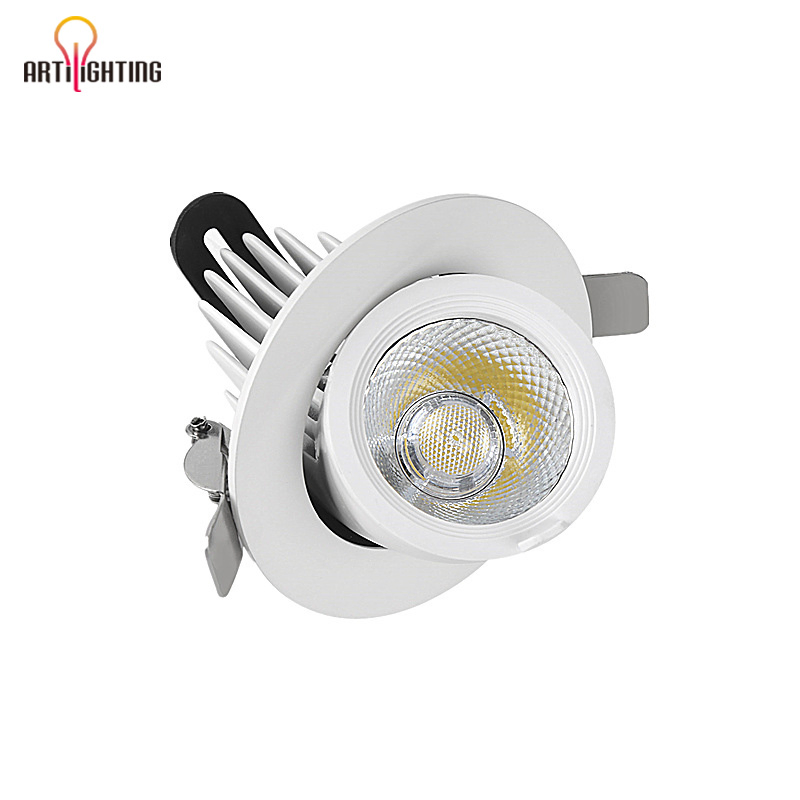

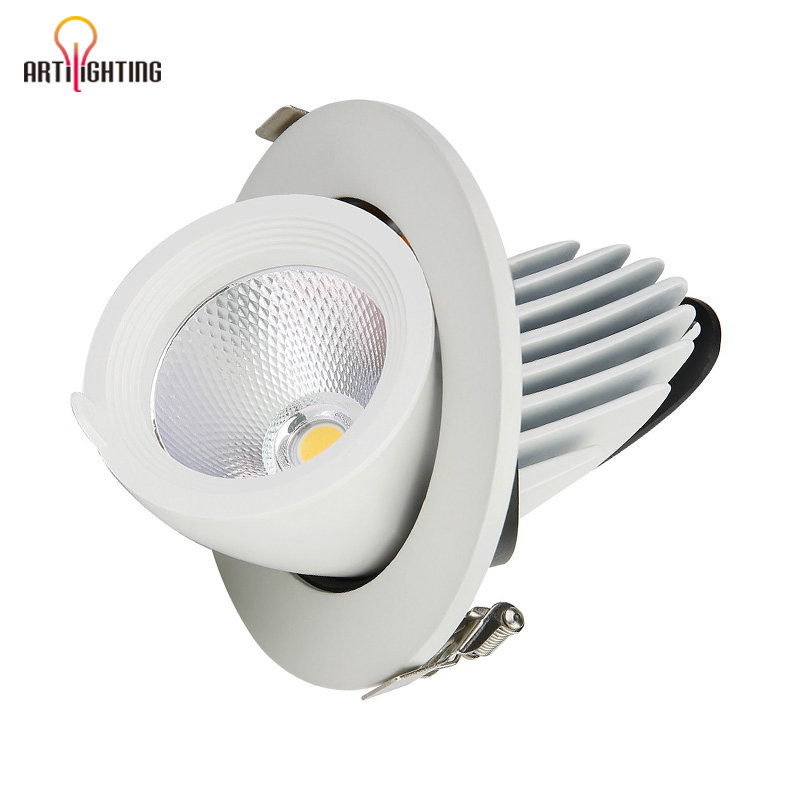

Superior Quality CRI90 Color Adjustable Recessed Spotlights COB Trunk Down Light LED Gimbal Downlight

Basic Info.

Model NO.

MX-XB02

Power

9W-35W

Color Temperature

Pure White, Warm White, Cool White

Lamp Body Material

Aluminum, Metal

Source Number

Single Plug

Installation

Recessed

Lamp Installation

Plug Lamp

Switch Type

Knob Switch

Warranty

3 Years

Application

Engineering, Home Furnishing, LED Spot Downlight

IP Rating

IP44

Certification

CCC, CE, EMC, GS, LVD, RoHS, SAA

Power Factor

PF>0.9

CRI

Ra>80/ Ra>95

Lumen Efficiency

100-110lm/W

Feature

90 360 Degree Adjustable Stretch Lighting

Dimming

with or Without Dimmable Option

Transport Package

Exported Boxes

Specification

Die-casting aluminum, round ratable COB spotlight

Origin

China

HS Code

94054090

Packaging & Delivery

Package Size

52.00cm * 35.00cm * 32.00cm

Package Gross Weight

11.500kg

Product Description

★ Superior Quality CRI90 Color Adjustable Recessed Spotlights COB Trunk Down Light LED Gimbal Downlight

★ 360degree Adjustable Anti-Glare Spot Down Light CE RoHS LED Spotlight

★ 9W-35W recessed Dimmable LED Spot Light Ceiling Downlight

Product details for your reference.

Can be customized with size & wattages, LED driver Lifud or Meanwell / LED chip Epistar or Phillips

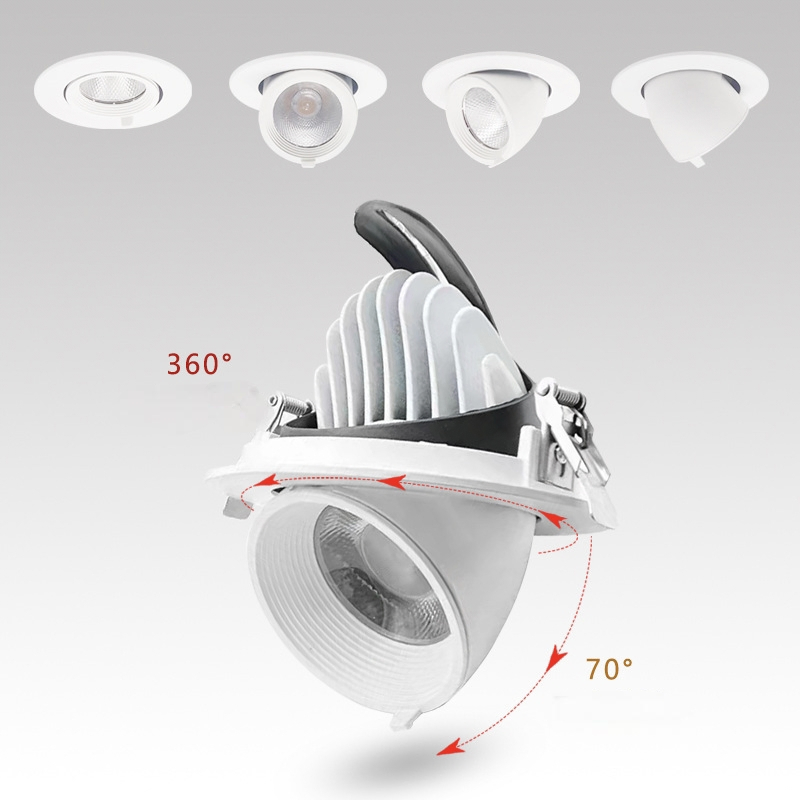

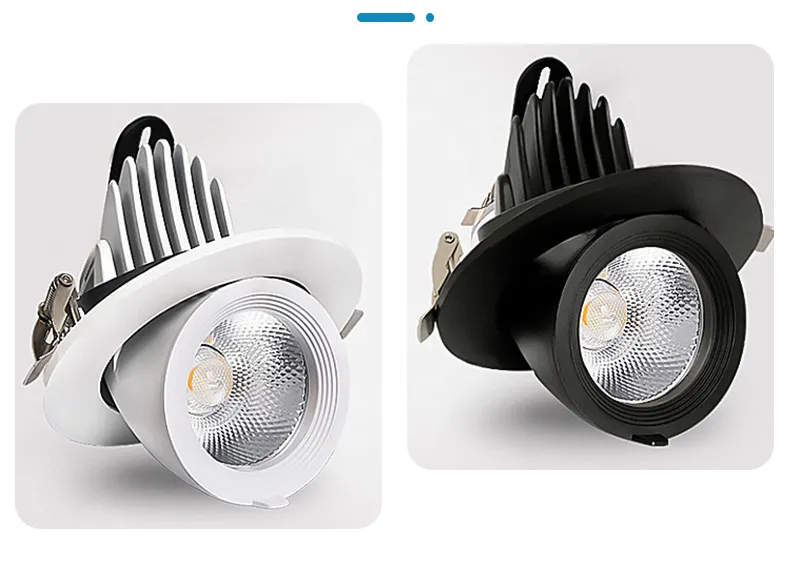

Features: 90° up and down stretch, 360° rotatable lamp body

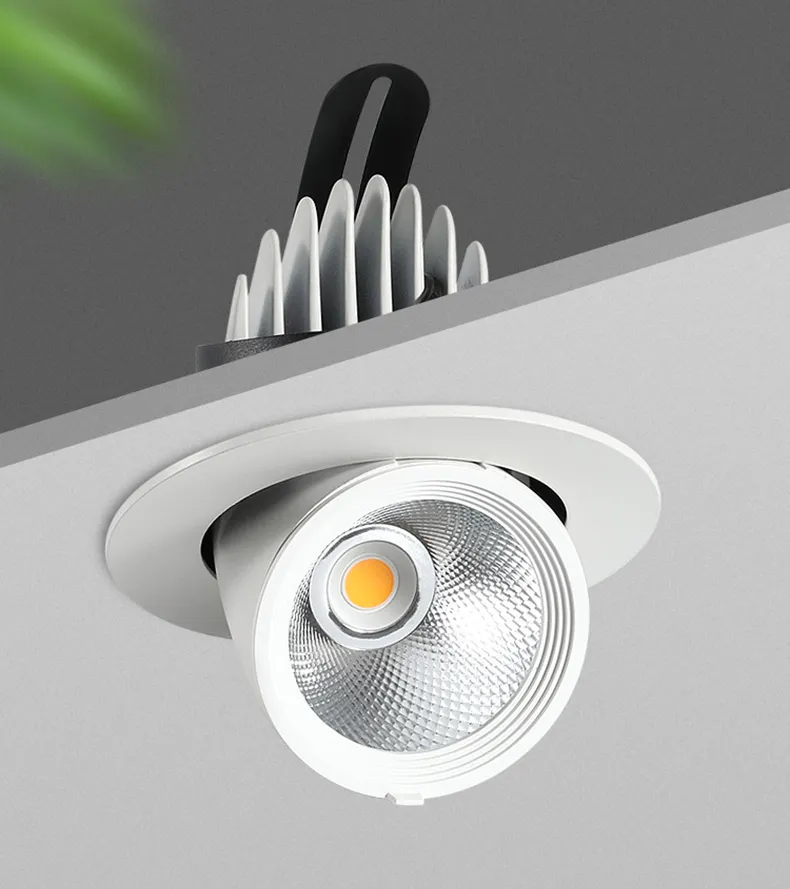

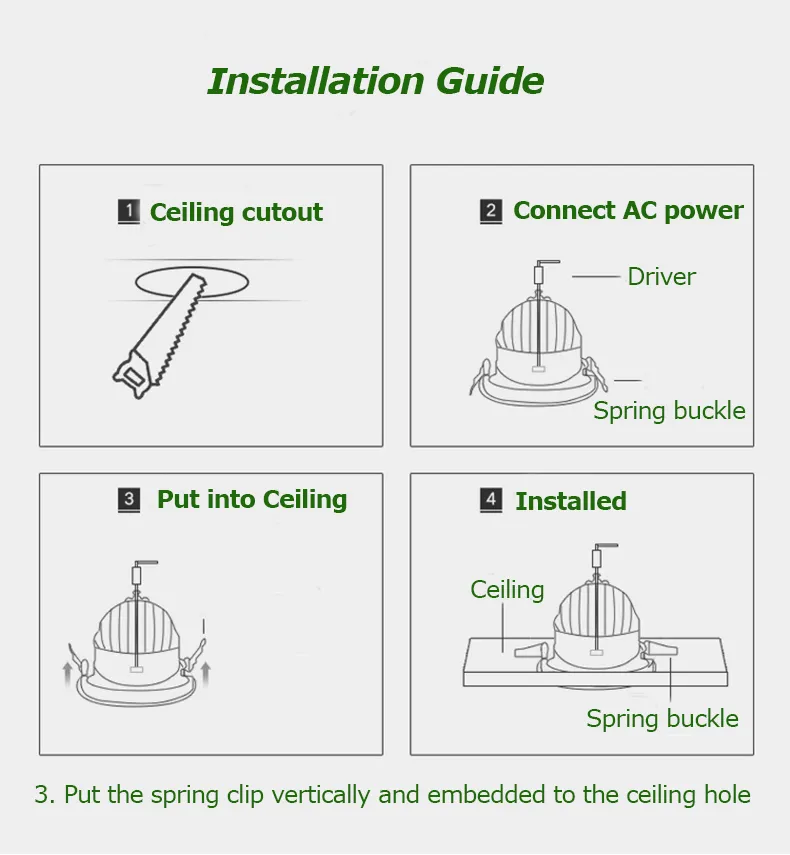

Installation: Recessed/ Embedded ceiling

No.	Item Type	Size (mm) L*H	Wattage	Cutout diam(mm)	Material	Beam angle optional
1	MX-XB02-10W	95*70mm	7-10W	80-80mm	Die-casting Aluminum	15° / 24° / 36°
2	MX-XB02-15W	110*90mm	12-15W	95-100mm	Die-casting Aluminum	15° / 24° / 36°
3	MX-XB02-20W	130*110mm	20-25W	115-120mm	Die-casting Aluminum	15° / 24° / 36°
4	MX-XB02-30W	165*140mm	25-30W	155-160mm	Die-casting Aluminum	15° / 24° / 36°
5	MX-XB02-35W	165*140mm	35W	155-160mm	Die-casting Aluminum	15° / 24° / 36°

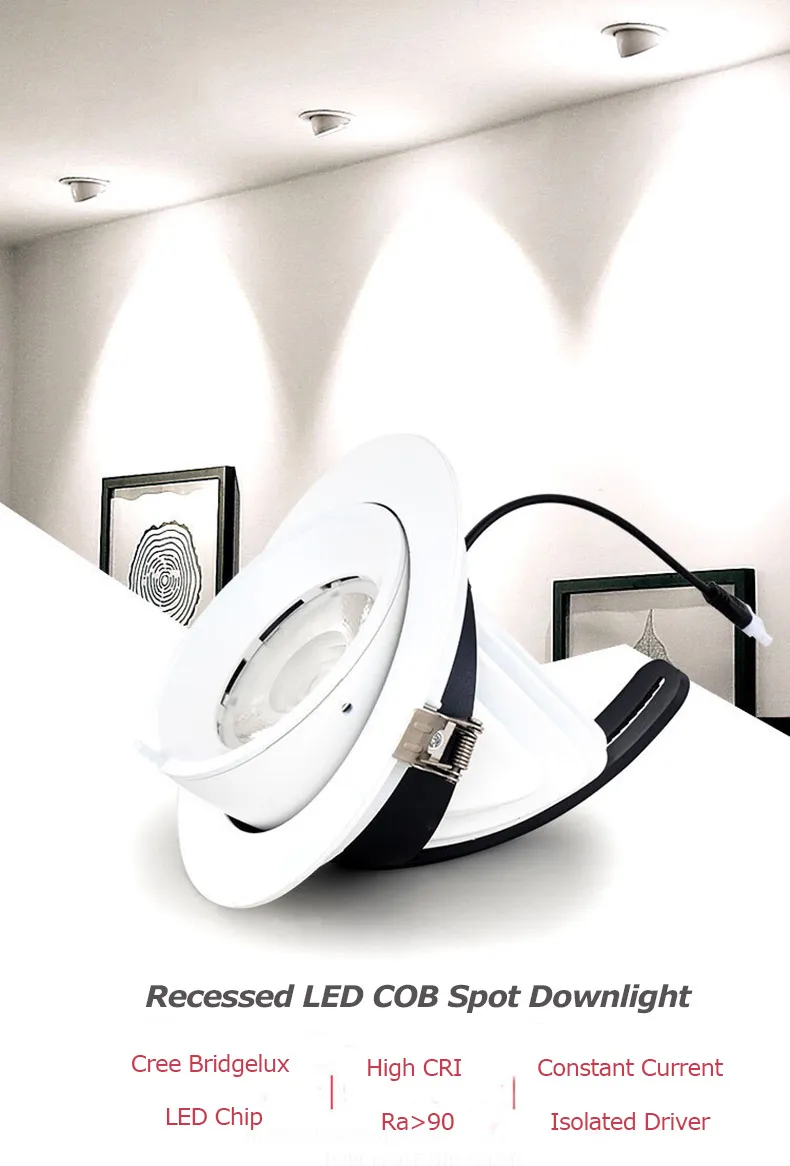

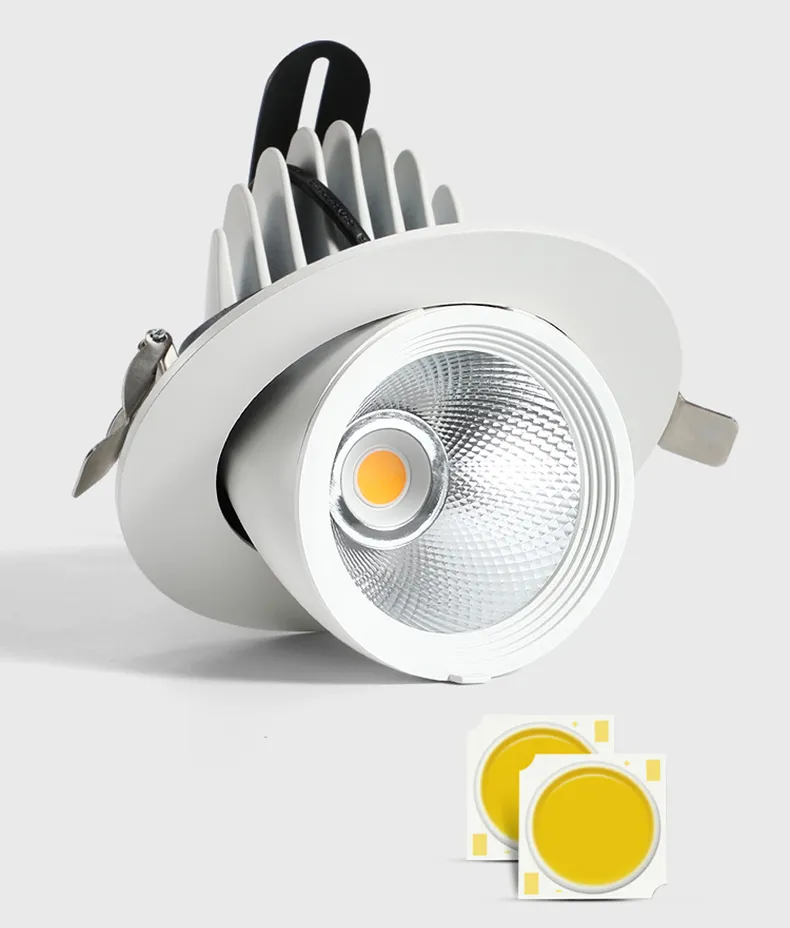

LED options: COB Cree / Bridgelux / Epistar				Input vol: AC85-265V; CRI>80 or Ra>95

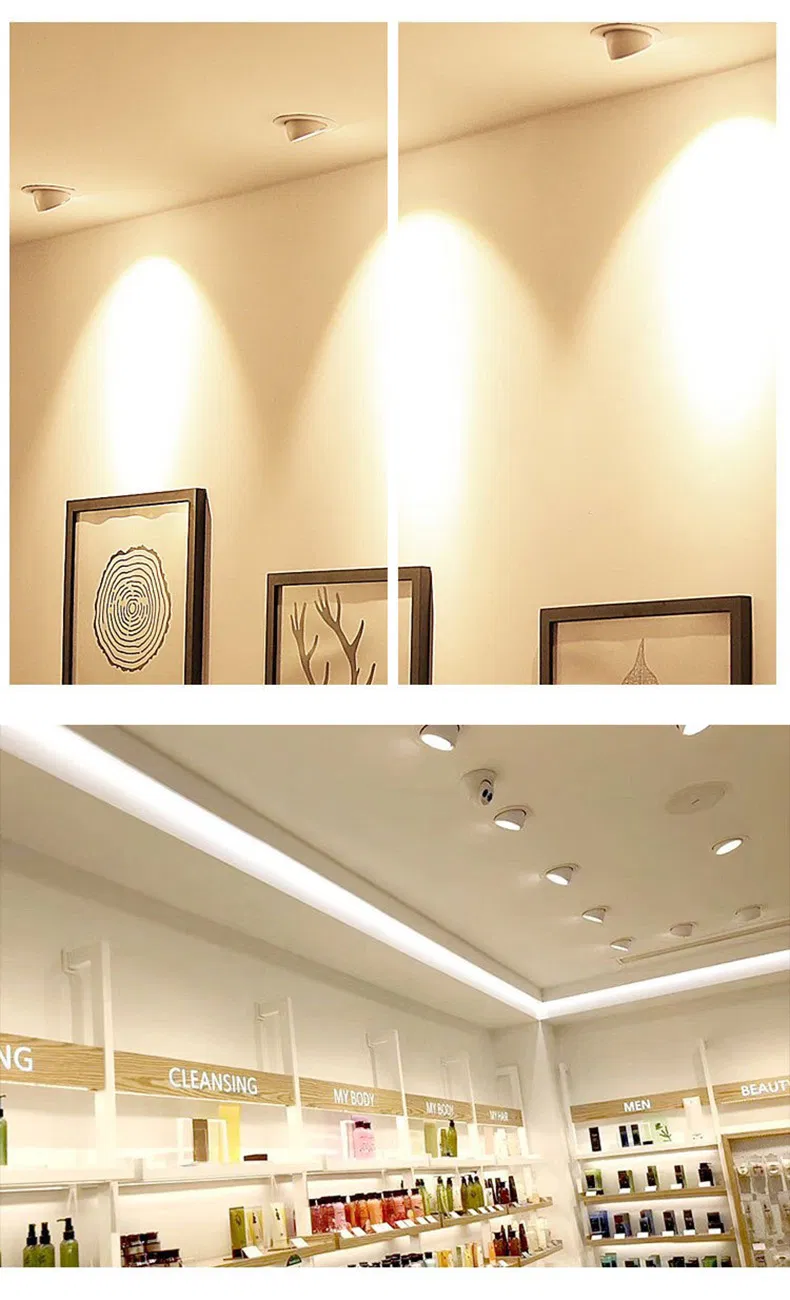

Applications: Shops, Clothing stores, supermarkets, villas, hotels, commercial buildings, etc.

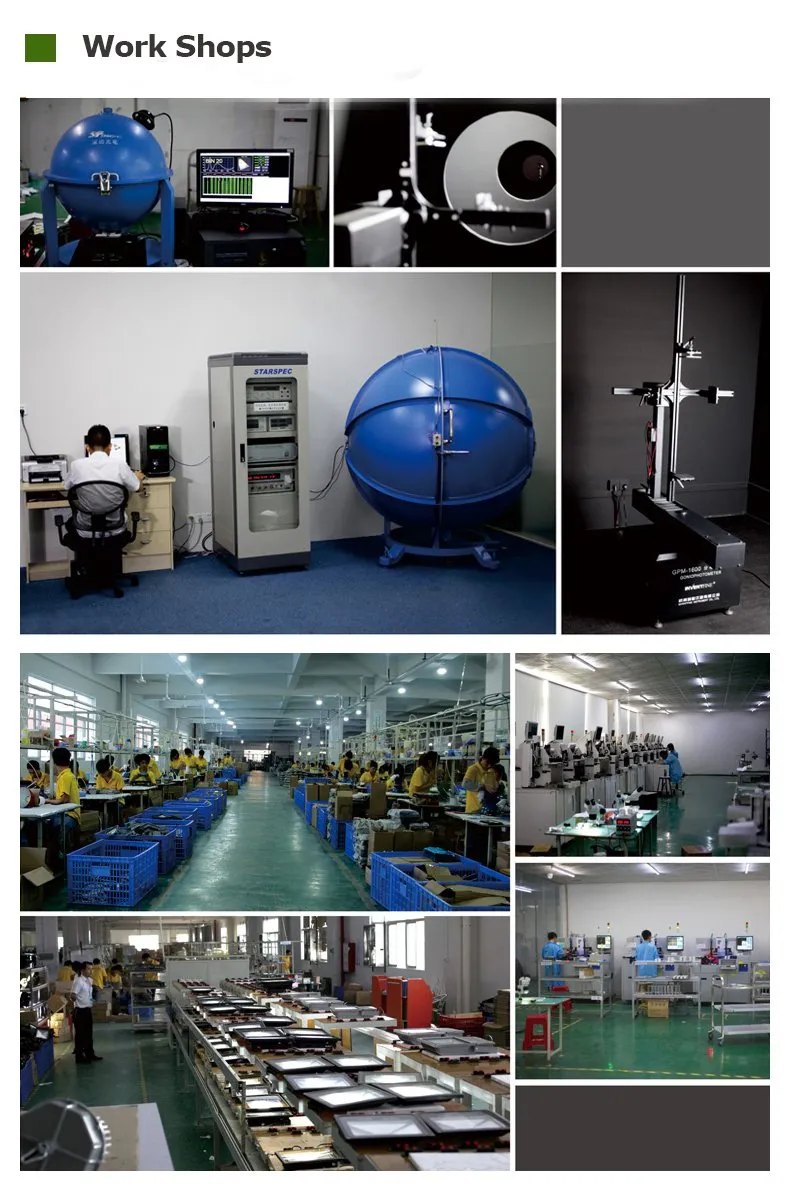

Manufacturing and Quality Testing Process

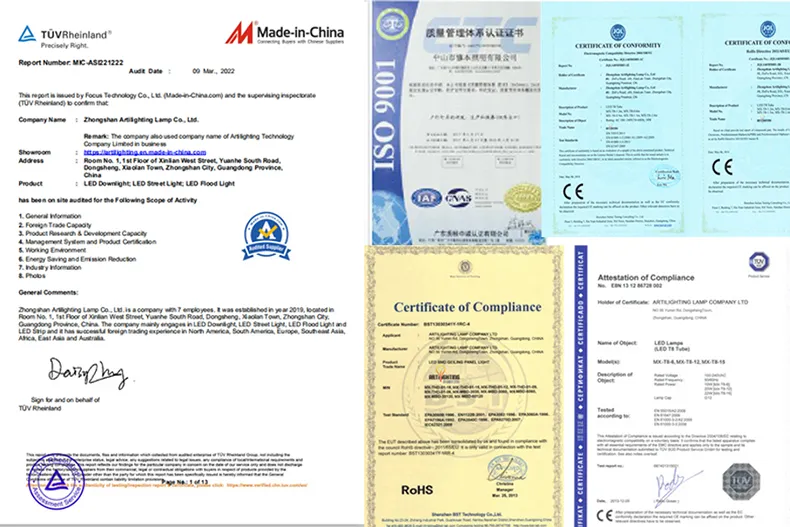

Certifications:

Why Choose Us

1

Factory direct: We can offer highly competitive wholesale pricing.
2

Quality Guaranteed: Strict quality control and fast delivery times guaranteed by us.
3

Quick turnaround: 1-3 days for product samples, 4-7 days for mass production.
4

R&D Team: Research staff can design or customize whatever specs you need.
5

OEM Branding: We can print your brand or logo directly on the lights for free.
6

Deep Experience: Highly experienced in international trade for over 10 years.
7

24/7 Support: Timely after-sale technical support and maintenance services.
8

Logistics Services: Coordinated shipping services provided via our international logistics partners.

Frequently Asked Questions

What are the main advantages of a CRI90+ recessed spotlight?

A Color Rendering Index (CRI) of 90 or higher means that the spotlight renders colors very accurately, close to natural daylight. This is crucial for commercial lighting applications like clothing stores, showrooms, and supermarkets, where product colors need to look vibrant and true-to-life.

How adjustable is the gimbal downlight body?

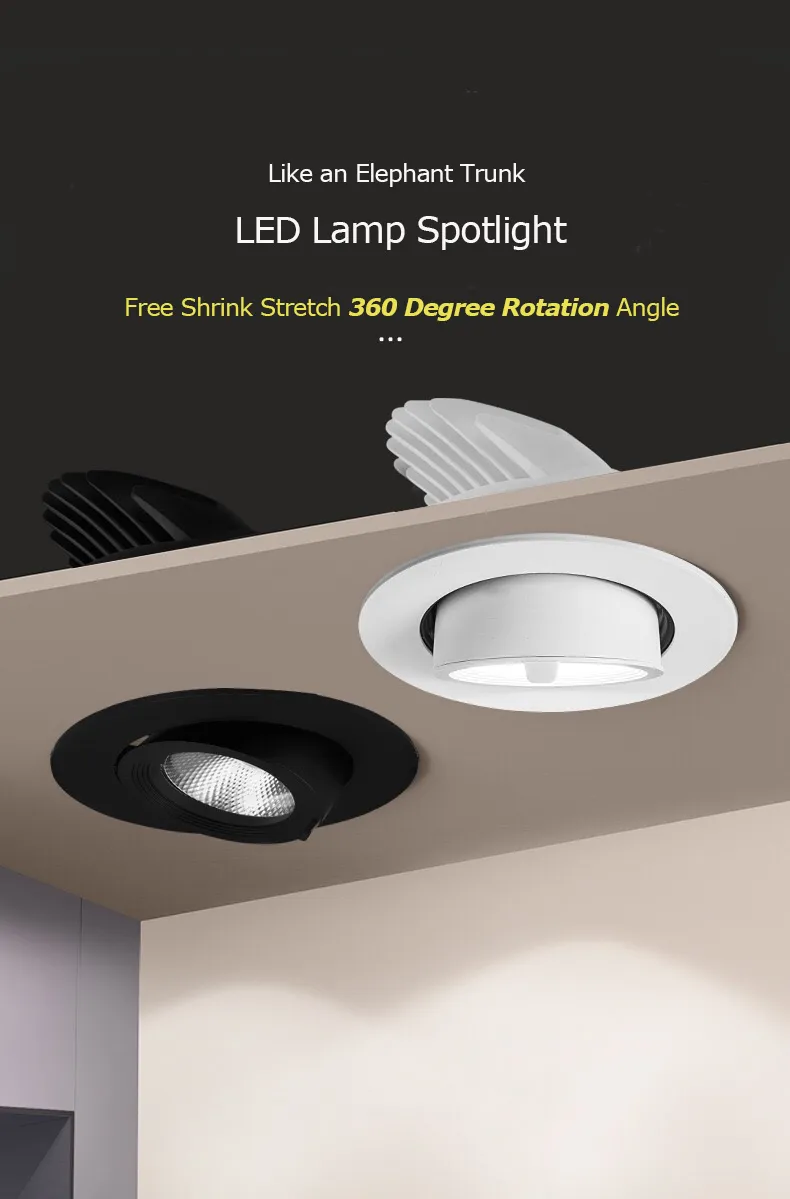

These spotlights offer excellent flexibility, featuring a 90-degree up and down stretch along with a 360-degree rotatable lamp body. This allows you to easily direct the accent beam precisely to where your products or architectural features need highlighting.

Are these LED spotlights compatible with dimming systems?

Yes, we provide both dimmable and non-dimmable options. You can customize the light setup using premium LED drivers (such as Lifud or Meanwell) depending on your commercial dimming requirements.

What customize options are available for the MX-XB02 spotlight series?

We support customization for various cut-out sizes, wattages ranging from 9W to 35W, specific LED chips (Cree, Bridgelux, Epistar), and beam angles of 15°, 24°, or 36° to suit your specific architectural lighting layouts.

What is the standard warranty and lifetime of these COB spotlights?

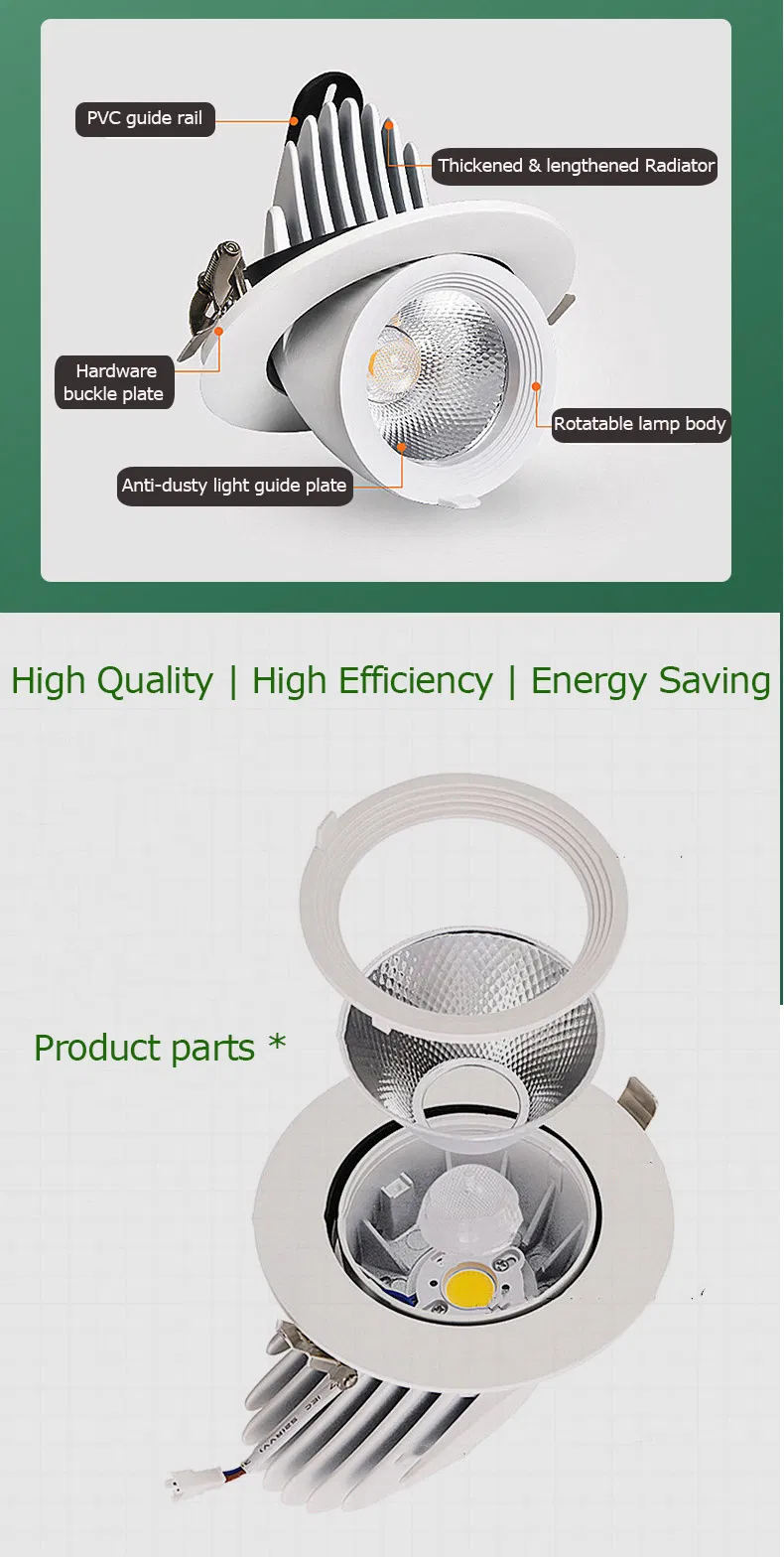

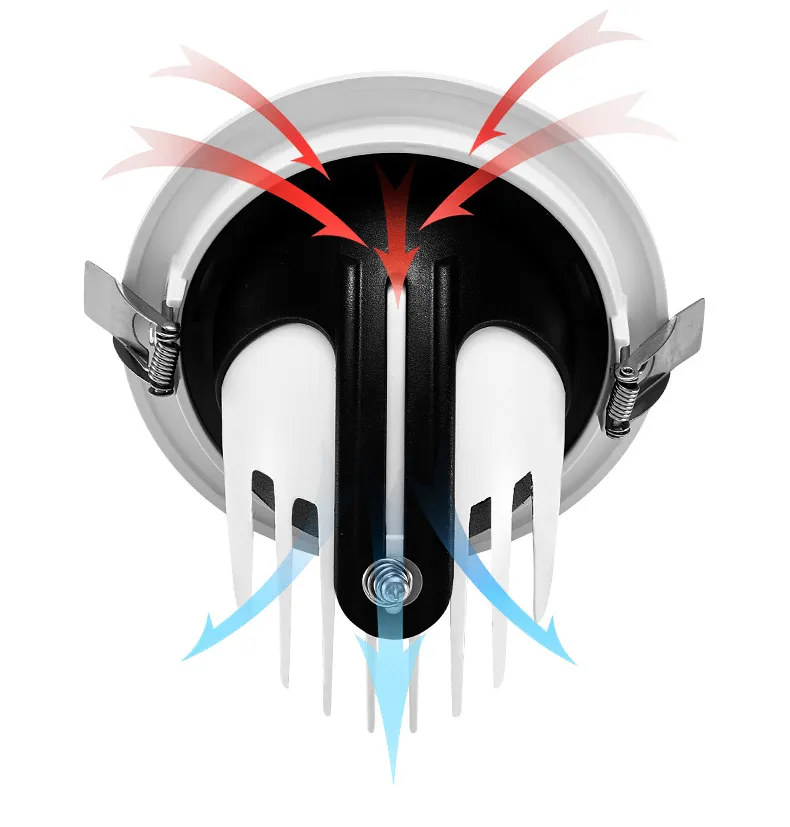

This series is built using high-grade die-casting aluminum and carries a 3-year warranty. The robust heat-dissipation design ensures that the high-efficiency COB light source runs reliably for long-term commercial use.
