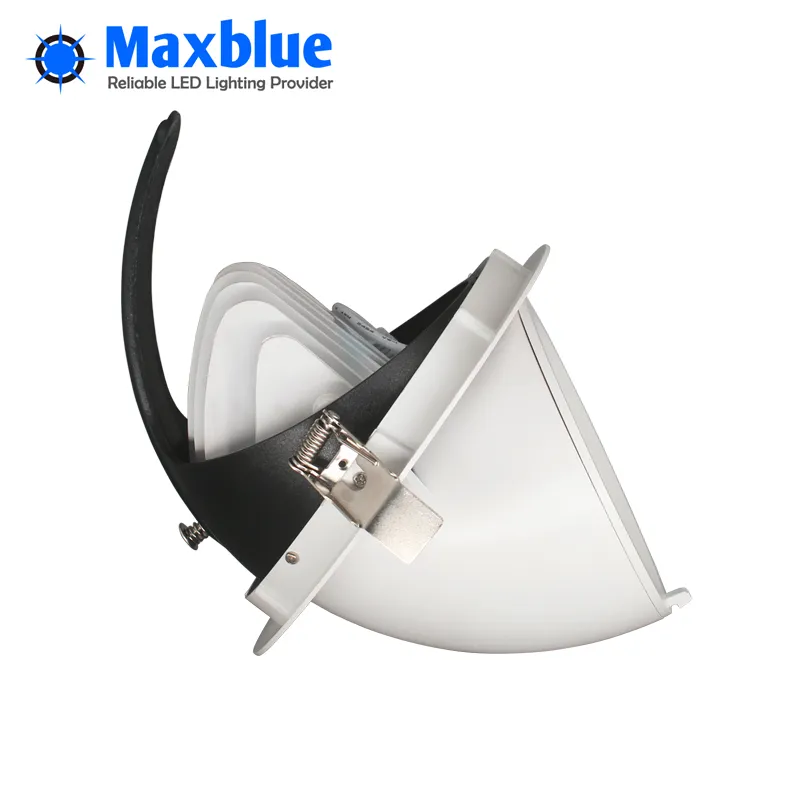

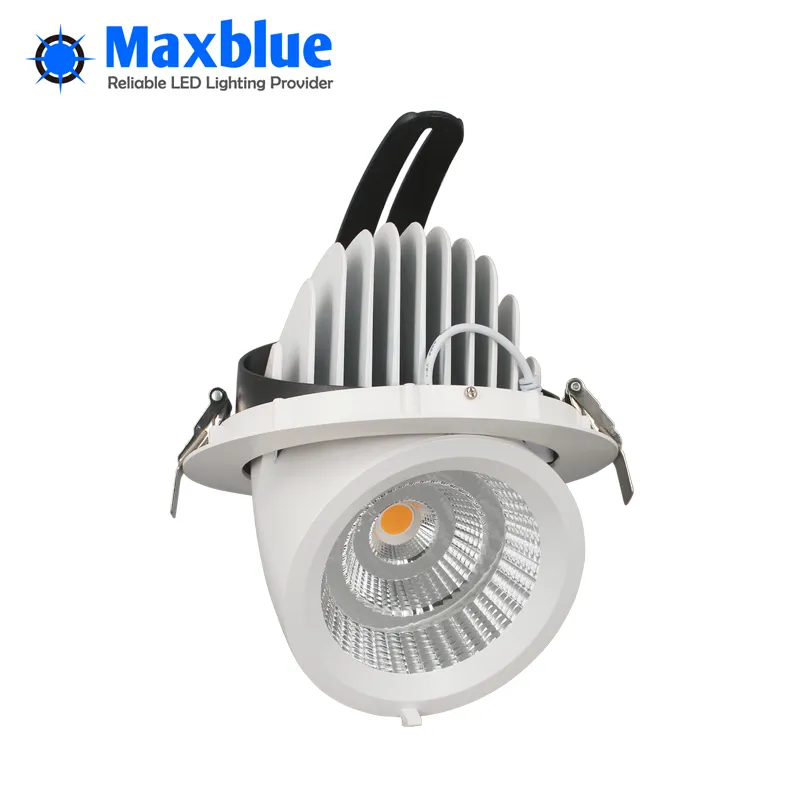

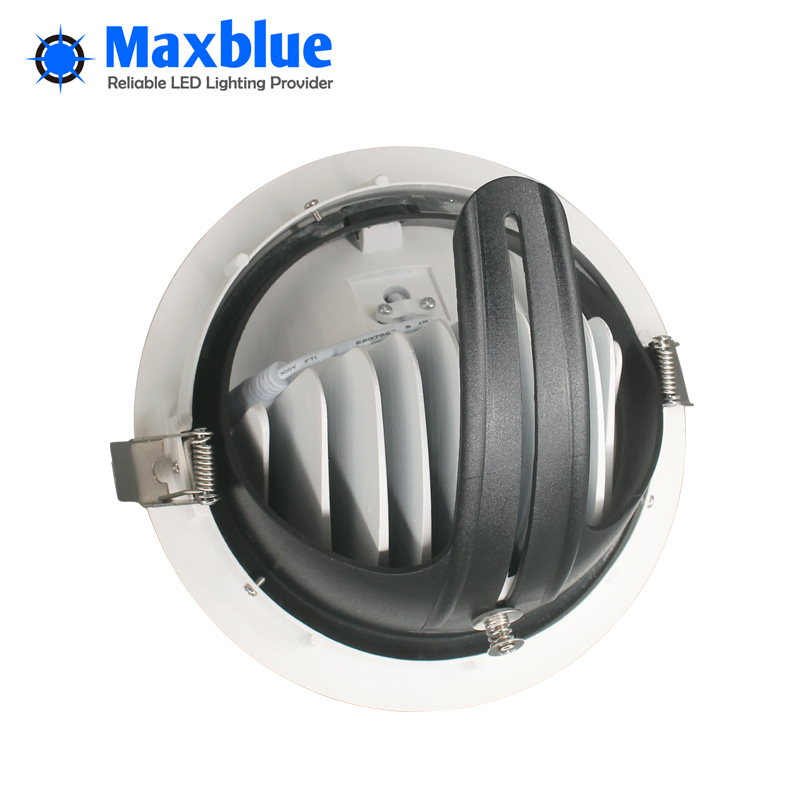

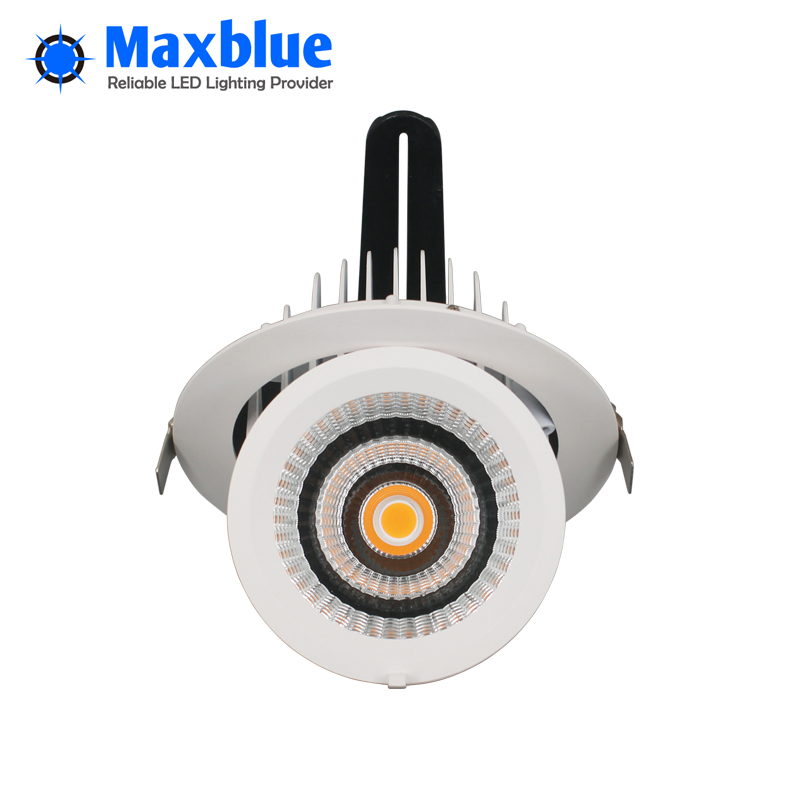

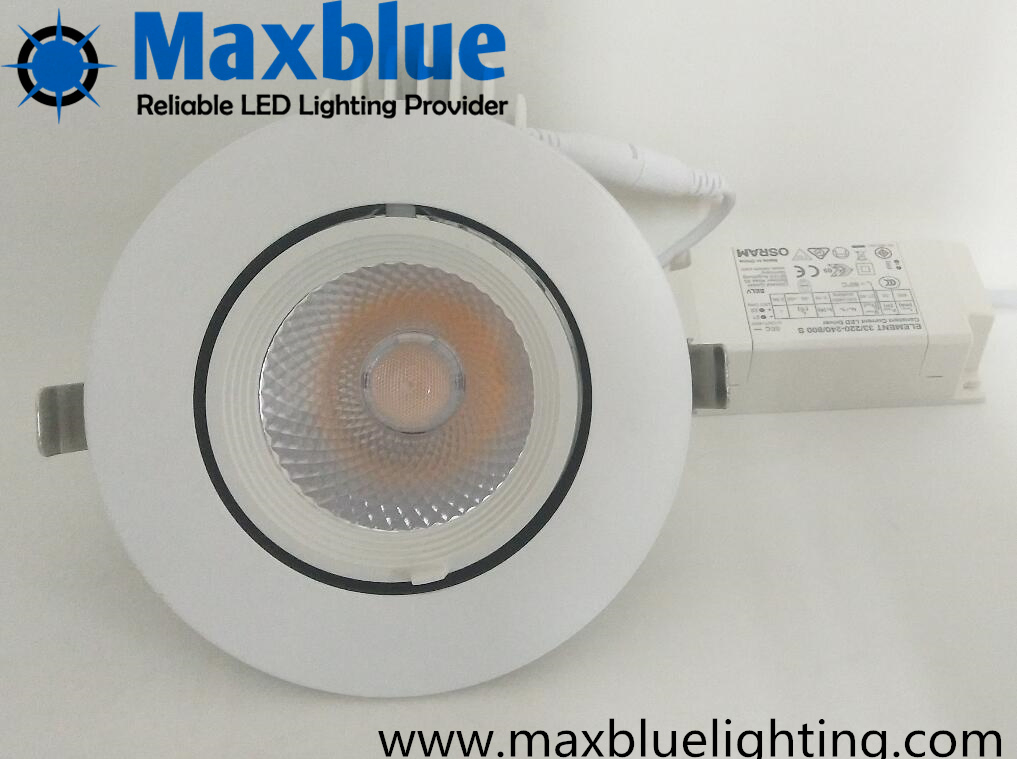

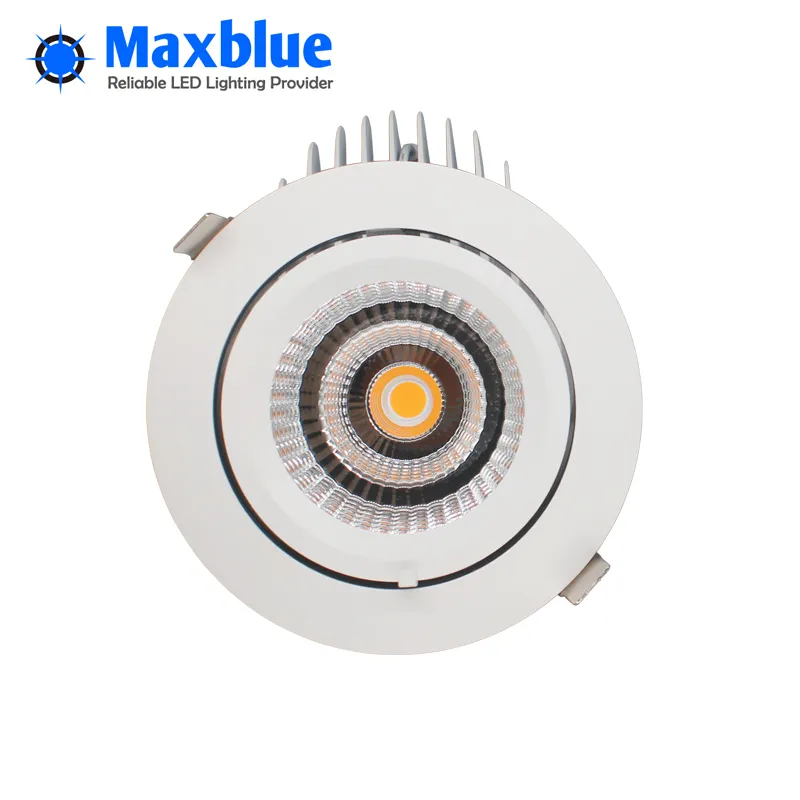

Features wide beam rotatable design for accent commercial lighting. 350° rotatable in horizontal and 55° adjustable in vertical swivels the gimbal downlight freely for the highlighted objects. The considerate tip top design on the light relaxes you to adjust the gimbal light up and down without taking off the led lighting fixture from the ceiling, since two stainless springs have clipped the directional downlight tightly into place. This 7″ LED recessed gimbal downlight fixture is the best choice to convert existing recessed cans into LED lighting fixtures.

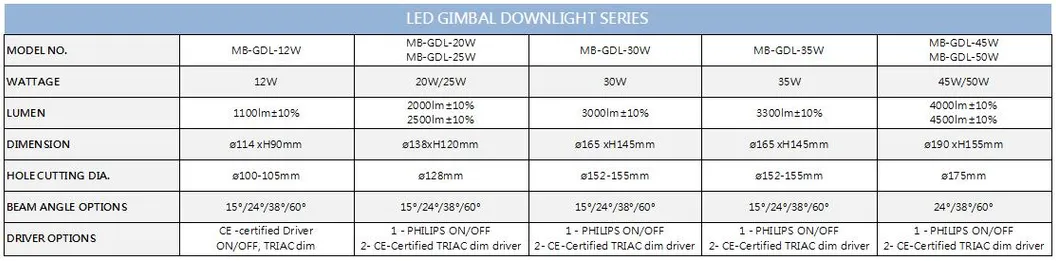

| Technical Data | ||
|---|---|---|
| Product Details | Model # | MB-GDL-50W |
| Wattage | 50W | |
| Luminous output | 4500lm±10% @3000K | |
| Lumen efficacy | 90-100lm/w | |
| Energy efficiency class | A+ | |
| Warranty | 5 years | |
| Electrical / Power supply | Brand | CREE |
| Vol. input | 200-240VAC 50/60Hz | |
| Vol. output | DC42V | |
| Current | 1200mA | |
| Power factor | >0.9 | |
| Dimming options | On-Off in default / TRIAC available upon request | |
| Optical / Light Source | Type | COB |
| Brand | CREE (CITIZEN available on request) | |
| CCT | 2700, 3000, 4000 or 5000K available | |
| CRI | >82Ra (>90Ra available upon request) | |
| Lumen efficacy | 110-130lm/w | |
| Reflector & Diffuser | Type | Aluminium glossy |
| Degree options | 24/38/60° | |
| Lighting distribution | Symmetric | |
| Lighting direction | Direct | |
| Diffuser | Tempered Glass | |
| Thermal / Housing | Color finish options | White/ Black |
| Dimension | ø190xH155mm / ceiling hole cutting: ø175mm | |
| Mounting ways | Recessed can by spring clips | |
| Waterproof level | IP42 | |
| Angle adjust | 350° in horizontal; 50° in vertical | |
| Body material | Die-casting Aluminum | |
| Environment | Operating temp. | -20°C ~ +50°C |
| Storage temp. | -30°C ~ +80°C | |

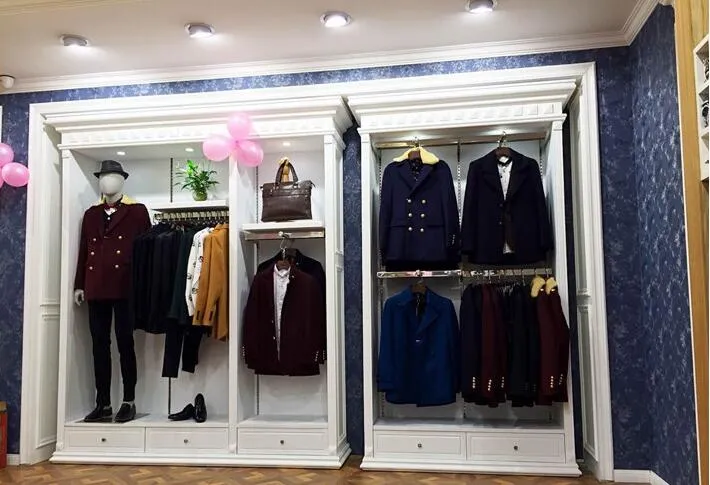

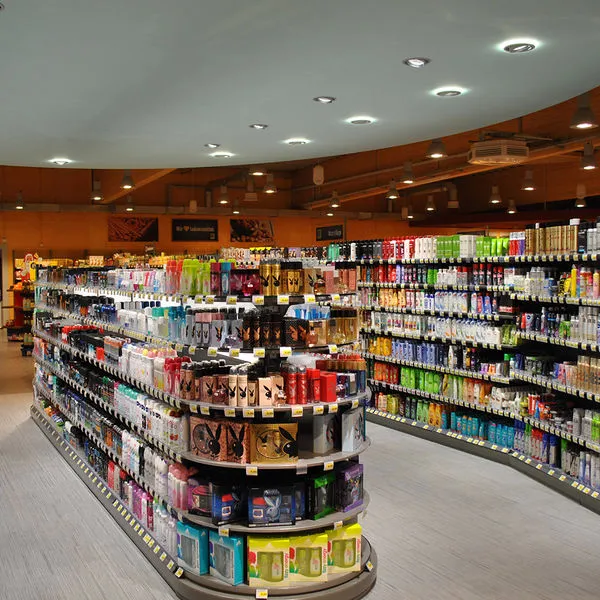

Perfect choice for architectural and high-end commercial spaces:
For better lighting the world and keeping the blue sky maximum.
To be one of the best products and service brands in the LED lighting industry.
We follow advanced technologies to develop products featuring:
